Inserting


Inserting

To insert an item:
  1. The user has to view a list of items where he would like to insert the new item
  2. The user may press the Add button in the toolbar.
  3. The program must open a new dialog (new form) to input all the information required.
  4. When the user presses the OK button, the program must validate the information provided by the user.
  5. The program must build an SQL statement to perform the insertion, INSERT INTO ...VALUES(...)
  6. The program executes the SQL statement (ExecuteNonQuery).
  7. The program NOTIFIES the user of the results by updating the item list.

Tip
A project by default has one main interface; when the user inserts a new element another GUI must open to collect the respective information. This additional interface is called Dialog or Form. To add a new dialog, review from this tutorial the section: Wintempla > Dialogs.

Problem 1
Create a project called AddItem to add an item using a Wintempla Dialog Application.

Step A

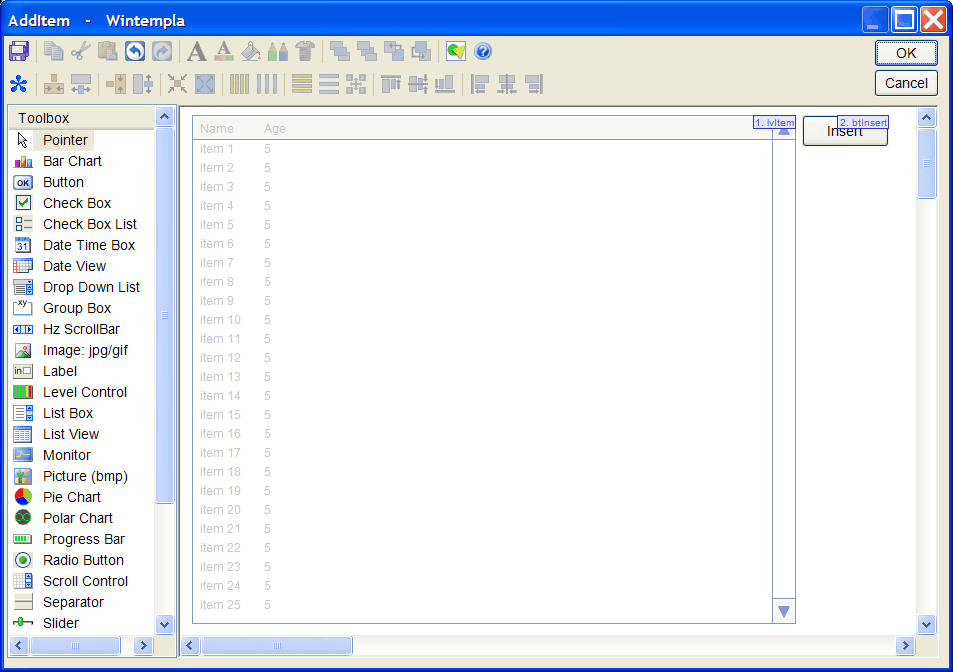

Drag and drop a list view control and a button as shown.

AddItemGui

Step B
Edit the AddItem.h file as shown.

AddItem.h
#pragma once //______________________________________ AddItem.h
#include "resource.h"

class AddItem: public Win::Dialog
{
public:
     AddItem()
     {
     }
     ~AddItem()
     {
     }
     void FillListView();
protected:
     ...
};

Step C
Edit the AddItem.cpp file as shown.

AddItem.cpp
...

void AddItem::Window_Open(Win::Event& e)
{
     //________________________________________________ 1. lvItem: Column Setup
     lvItem.Cols.Add(0, LVCFMT_LEFT, 200, L"Item name");
     lvItem.Cols.Add(1, LVCFMT_LEFT, 120, L"Model");
     lvItem.Cols.Add(2, LVCFMT_LEFT, 120, L"Brand");
     lvItem.Cols.Add(3, LVCFMT_LEFT, 120, L"Category");
      //_______________________________________________ 2. Fill the list view control with the items
     FillListView();
}

void AddItem::FillListView()
{
}

void AddItem::btInsert_Click(Win::Event& e)
{
}

Step D

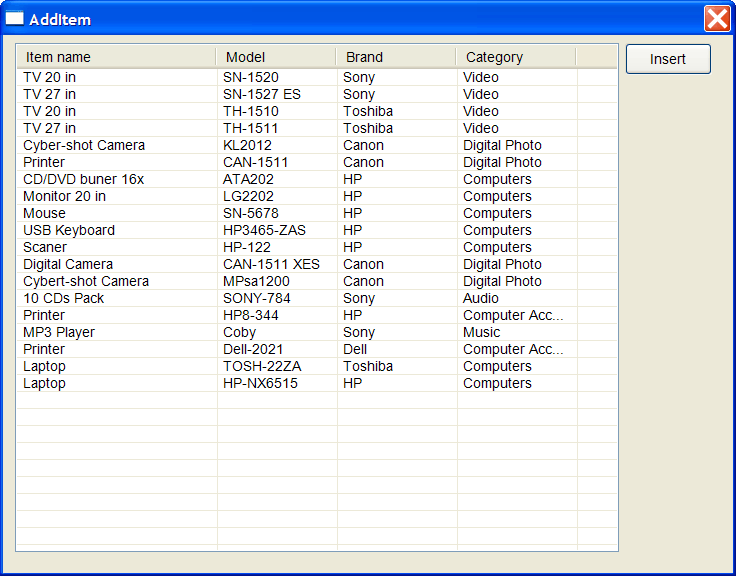

Complete the function FillListView to fill the list view control with the items from the best_buy database. Do not forget to include the primary key in your SQL command.

AddItemMain

Step E
Add a new Dialog called ItemDlg Tools > Add Wintempla Item... > Dialog (this will create the files ItemDlg.h and ItemDlg.cpp). In previous versions of Wintempla use: Project > Add New item... > Wintempla Dialog .

Step F

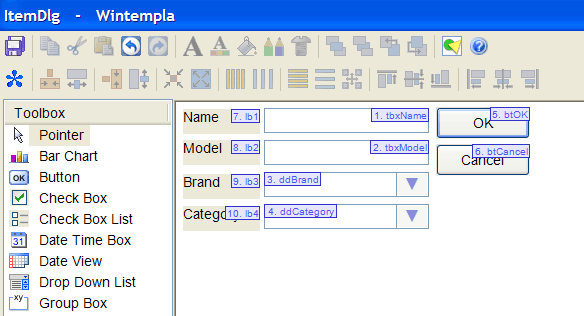

Edit the ItemDlg interface using Wintempla as shown below. Check the order of the control is as shown and set the property of Default Button to the OK button. Edit and complete the ItemDlg.cpp file as shown.

ItemDlgGui

ItemDlg.cpp
#include "stdafx.h" //_____________________________________________ ItemDlg.cpp
#include "ItemDlg.h"

void ItemDlg::Window_Open(Win::Event& e)
{
     this->Text = L"Item";
     //________________________________________________ 1. Fill the category drop down list and the brand drop down list
     Sql::SqlConnection conn;
     try
     {
          //conn.OpenSession(DSN, USERNAME, PASSWORD); //Control Panel>Administrative Tools>Data Sources (ODBC)>Create dsn_myDatabase
          conn.OpenSession(hWnd, CONNECTION_STRING);
          ...

     //_______________________________________________ 2. Select default values
     ddCategory.SelectedIndex = 0;
     ddBrand.SelectedIndex = 0;
}

void ItemDlg::btOK_Click(Win::Event& e)
{
}

void ItemDlg::btCancel_Click(Win::Event& e)
{
}


Step H

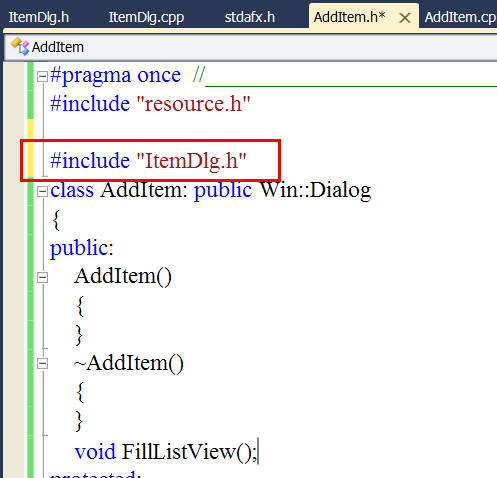

Include the ItemDlg.h at the top of the AddItem.h file as shown below.

IncludeItemDlg

Step I
Edit the AddItem.cpp file as shown. You should be able to open the ItemDlg dialog by pressing the Insert button.

AddItem.cpp
... same as before
void AddItem::btInsert_Click(Win::Event& e)
{
     ItemDlg dlg;
     dlg.BeginDialog(hWnd);
     FillListView();
}

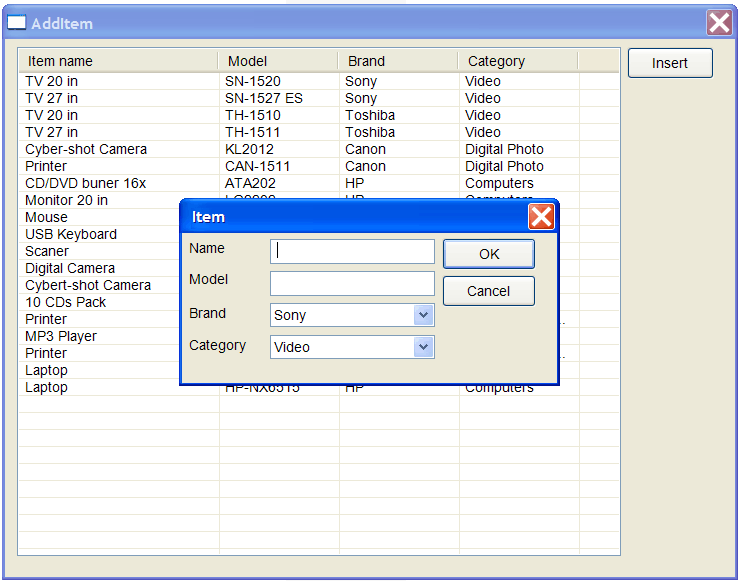

ItemDlg

Step J

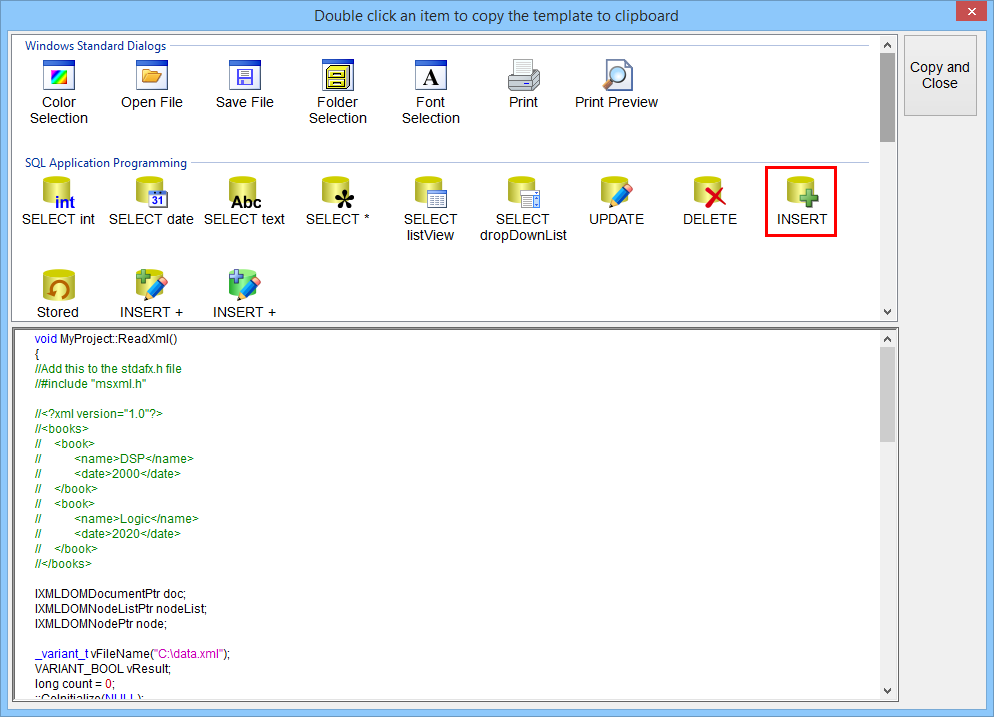

From Microsoft Visual Studio menu, copy and paste an SQL Insert Template: Tools > Add Wintempla Item... > Clipboard Code . Then, edit the ItemDlg.cpp file as shown.

SQLInsertTemplate

ItemDlg.cpp
#include "stdafx.h" //_____________________________________________ ItemDlg.cpp
#include "ItemDlg.h"

void ItemDlg::Window_Open(Win::Event& e)
{
     ... same as before
     //_______________________________________________ Select default values
     ddCategory.SelectedIndex = 0;
     ddBrand.SelectedIndex = 0;
}

void ItemDlg::btOK_Click(Win::Event& e)
{
     //__________________________________________________________ 1. Get category_id
     LPARAM category_id;
     if (ddCategory.GetSelectedData(category_id) == false) return;
     //__________________________________________________________ 2. Get brand_id
     LPARAM brand_id;
     if (ddBrand.GetSelectedData(brand_id) == false) return;
     //__________________________________________________________ 3. Get Name and Model
     wstring name = tbxName.Text;
     wstring model = tbxModel.Text;
     //__________________________________________________________ 4. Validate (you may use regular expressions)
     if (name.length() <= 2)
     {
          tbxName.ShowBalloonTip(L"Item Name", L"The item name must contain at least three characters", TTI_ERROR);
          return;
     }
     if (model.length() <= 2)
     {
          tbxModel.ShowBalloonTip(L"Item Model", L"The item model must contain at least three characters", TTI_ERROR);
          return;
     }
     //__________________________________________________________ 5. Create INSERT statement
     wstring cmd;
     Sys::Format(cmd,
               L"INSERT INTO item (descr, model, brand_id, category_id) VALUES('%s', '%s', %d, %d)",
               name.c_str(), model.c_str(), brand_id, category_id);
     //__________________________________________________________ 6. Execute INSERT
     Sql::SqlConnection conn;
     int rows = 0;
     try
     {
          //conn.OpenSession(DSN, USERNAME, PASSWORD); //Control Panel>Administrative Tools>Data Sources (ODBC)>Create dsn_myDatabase
          conn.OpenSession(hWnd, CONNECTION_STRING);

          rows = conn.ExecuteNonQuery(cmd);
          if (rows!=1)
          {
               this->MessageBox(Sys::Convert::ToString(rows), L"Error - inserted rows", MB_OK | MB_ICONERROR);
          }
          this->EndDialog(TRUE);
     }
     catch (Sql::SqlException e)
     {
          this->MessageBox(e.GetDescription(), L"Error", MB_OK | MB_ICONERROR);
     }
}

void ItemDlg::btCancel_Click(Win::Event& e)
{
     this->EndDialog(FALSE);
}

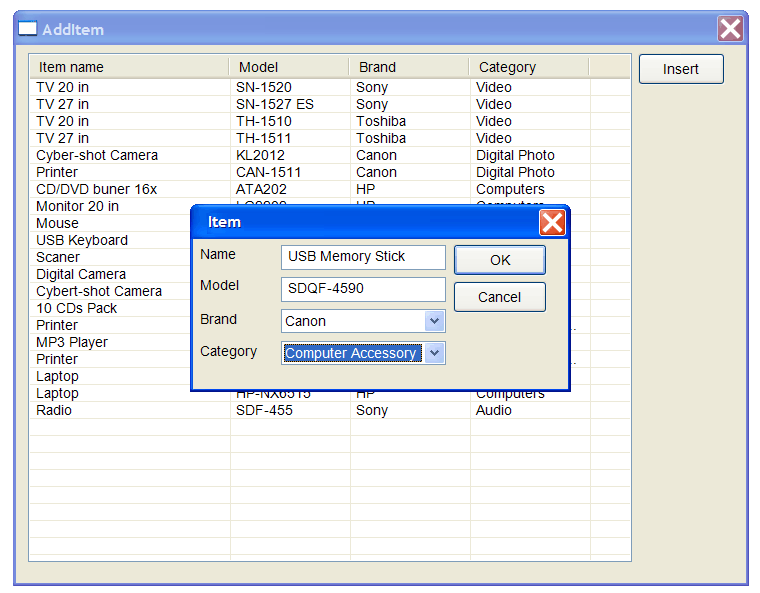

AddItemRun

Web Submit Button

In a Web application there are two types of buttons:
  1. Submit buttons they can be used to call a function in the program or navigate to another web page. You can create a Submit button by checking the Submit option in the button properties.
  2. AJAX buttons they can be used to call a function in the program. You can create an AJAX button by un-checking the Submit option in the button properties, and then checking the onclick event in the Even tab of the button properties. BE AWARE that you cannot use an AJAX button to navigate to other web page.

NavigateTo

In a Wintempla web application, it is possible to navigate from one page to another one using the command h.NavigateTo(L"PageName").

Problem 2
Create a project called AddItemWeb to add an item using a Wintempla Web Application. Publish the web application to a web server using Anonymous Access.

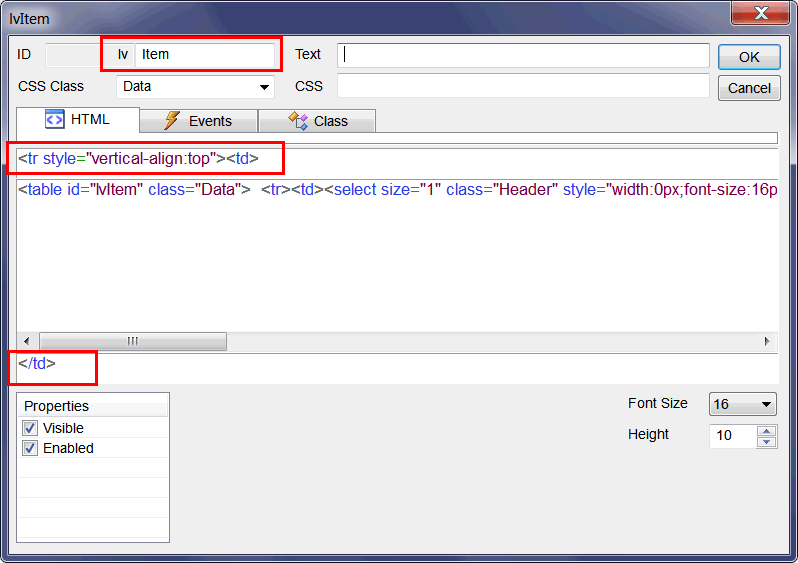

Step A
Add a list view control as shown.

AddItemWebGui

Step B

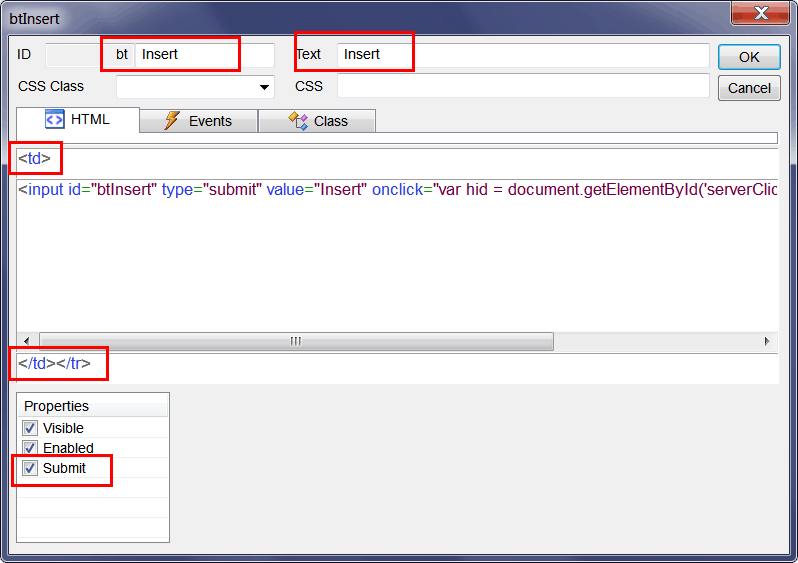

Add a Submit button as shown (It must be a Submit button because, when the user clicks the button, the web application must navigate to a different web page). Then use theBrowser ViewBrowser View to review the appearance of the web page.

InsertButtonWeb

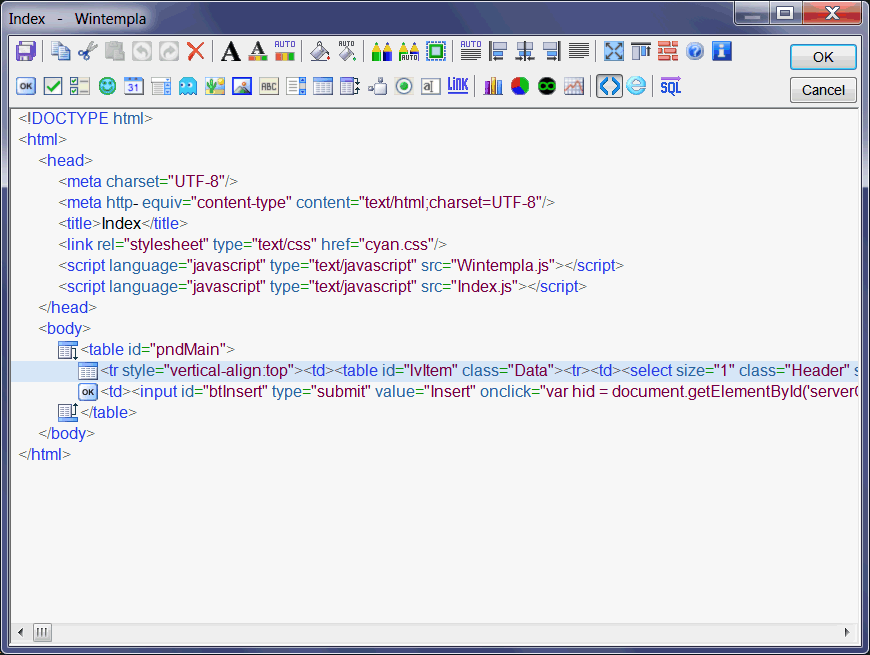

AddItemHtml

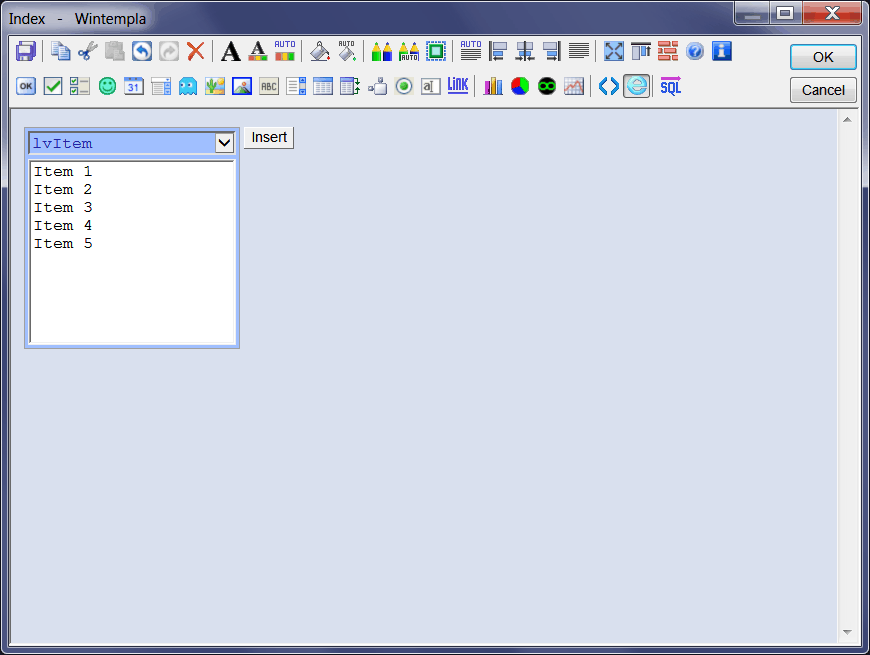

IndexGui

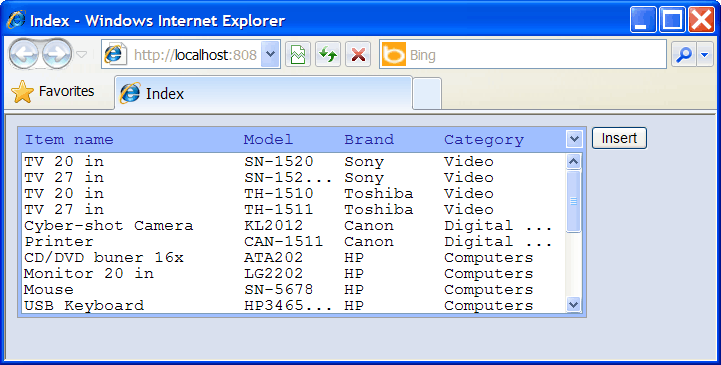

Step C
Edit the file Index.cpp by completing the function Window_Open to fill the list view control. After completing the code, run the program to see the list of items in the list view control.

IndexRun

Index.cpp
#include "stdafx.h" //_____________________________________________ Index.cpp
#include "Index.h"

void Index::Window_Open(Web::HttpConnector& h)
{
     //________________________________________________ 1. lvItem: Column Setup
     ...
     lvItem.Height = 30;

     //_______________________________________________ 2. Fill the list view control with the items
     Sql::SqlConnection conn;
     try
     {
          ...
     }
     catch (Sql::SqlException e)
     ...
}

void Index::btInsert_onclick(Web::HttpConnector& h)
{
}

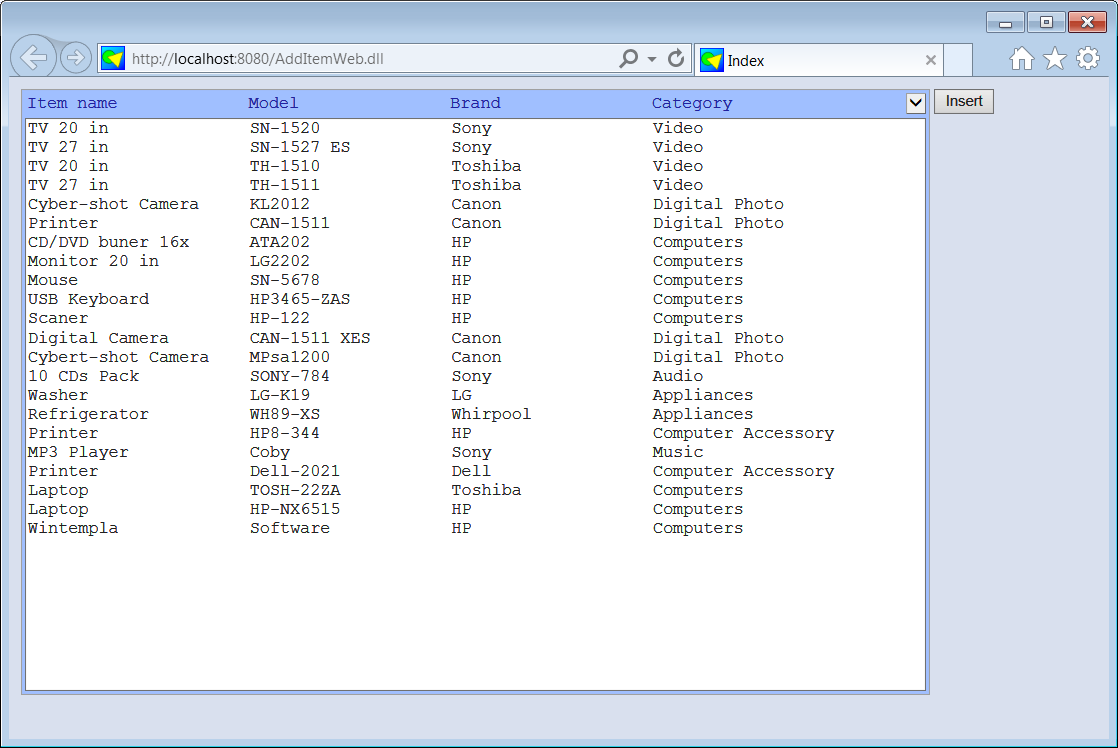

AddItemWebRun

Step D

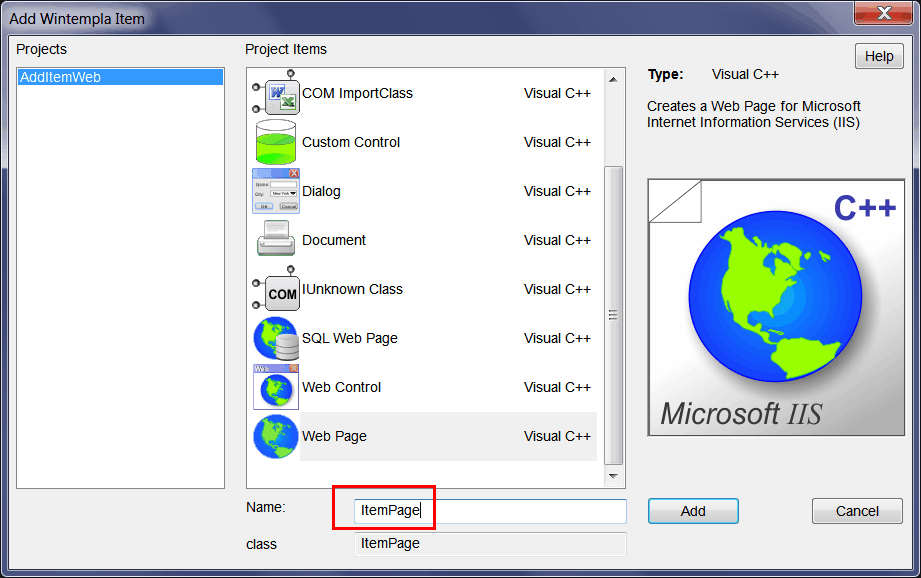

Insert a web page called ItemPage Tools > Add Wintempla item... > Web Page. In previous versions of Wintempla use: Project > Add New item... . After this your web site has two pages: Index and ItemPage.

ItemPage

Step E

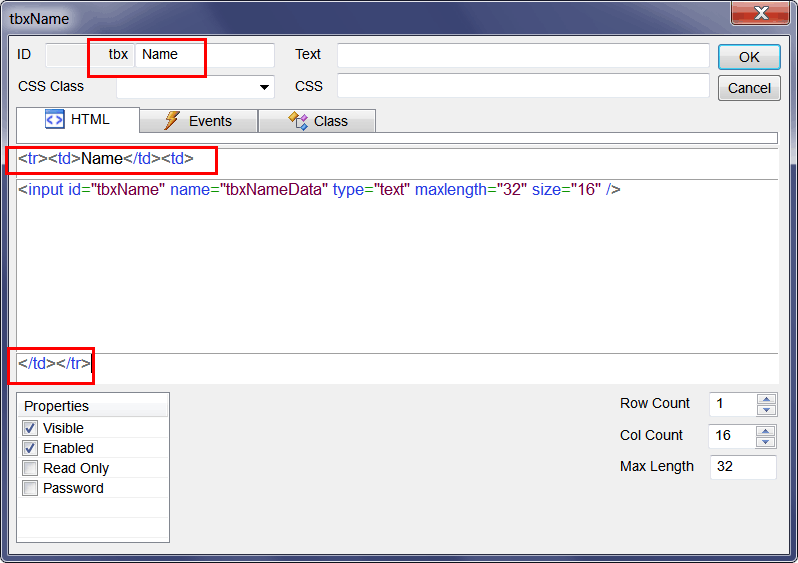

Insert one Parent Node. Then, Insert one textbox for the name as shown. We will use a table to layout the web controls; the table will have four rows and two columns.

ItemPageName

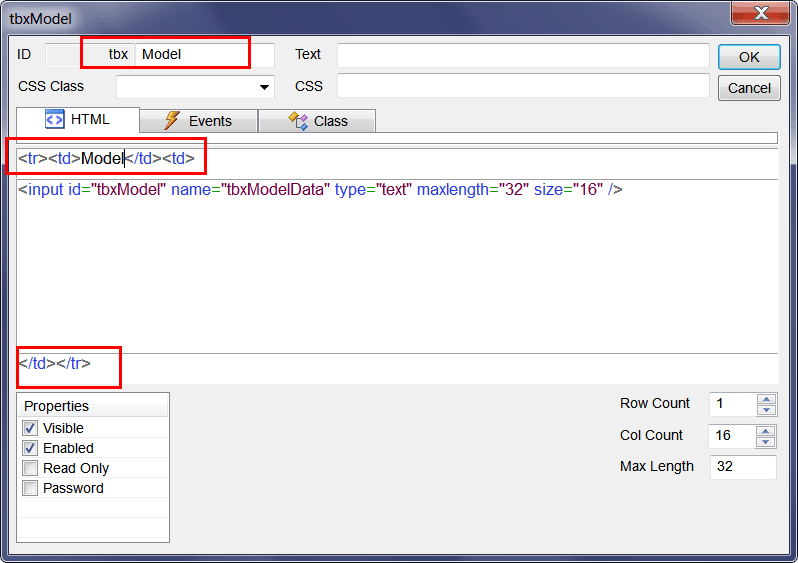

Step F
Insert one textbox for the model as shown.

ItemPageModel

Step G

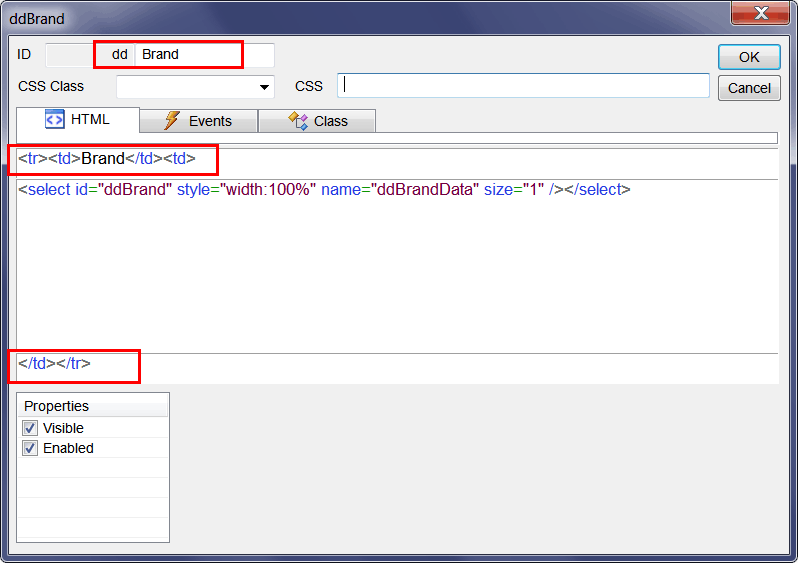

Insert a drop down list for the brand as shown.

ItemPageBrand

Step H

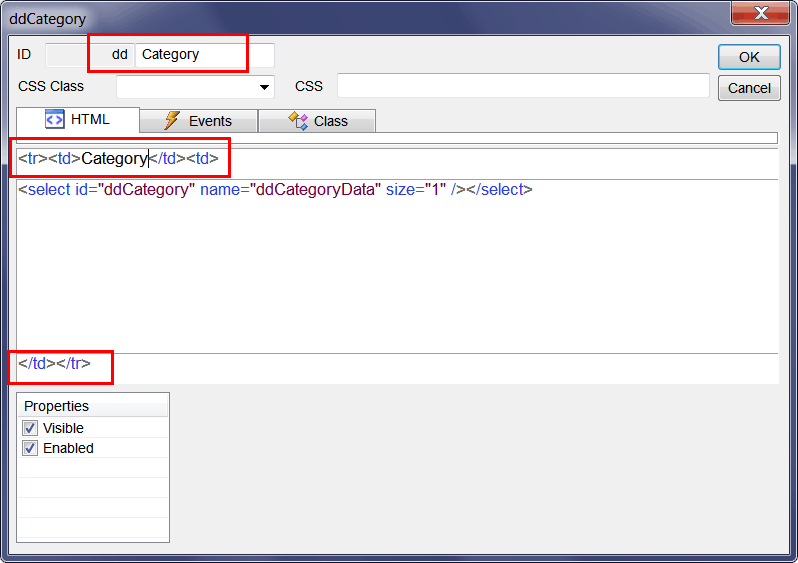

Insert a drop down list for the category as shown.

ItemPageCategory

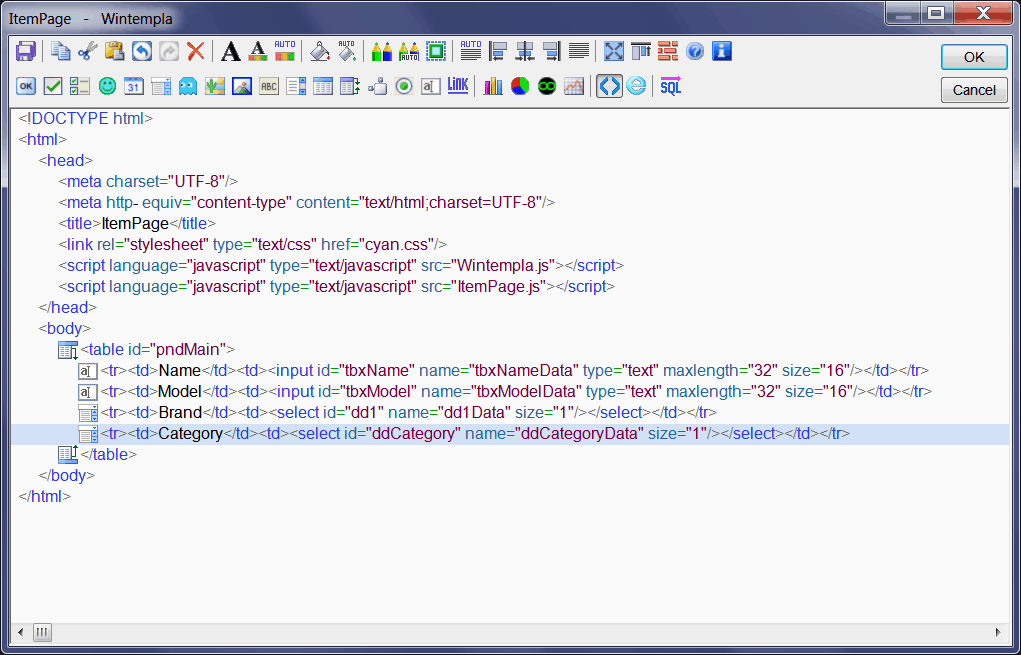

Step I

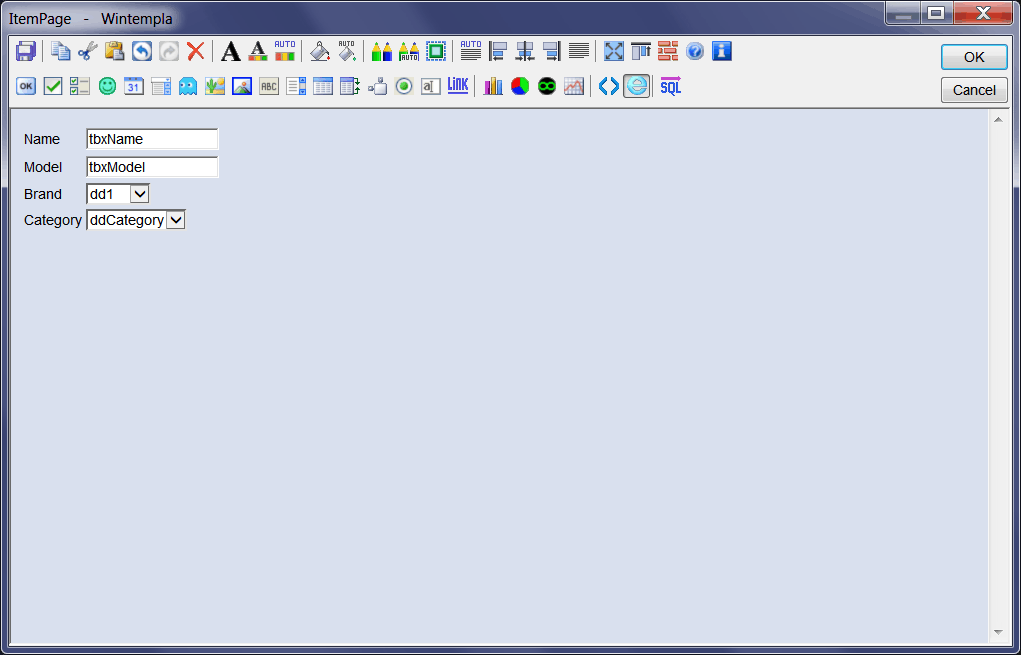

After completing the table with the four controls, the HTML view and Browser View should be as shown below.

ItemPageHtml

ItemPageBrowser

Step J

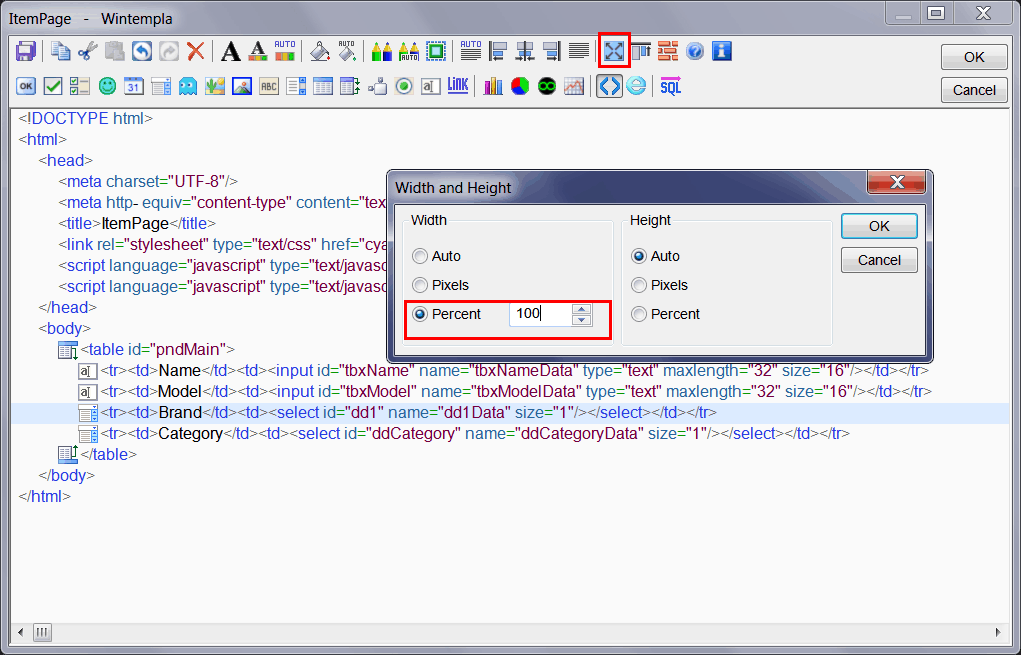

From the HTML view, select the brand drop down list from the list view control in the left, and set the width to 100%. You may change the width of the other controls to 100%.

ItemPageBrand100

Step K

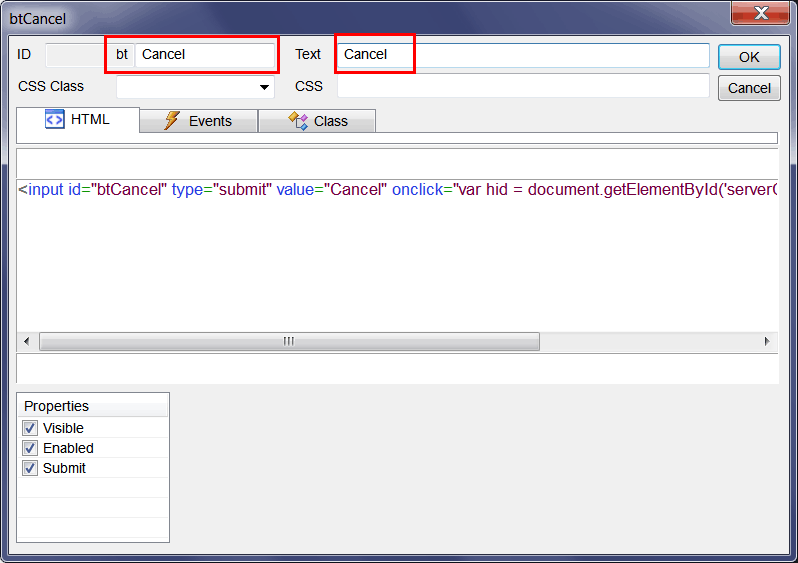

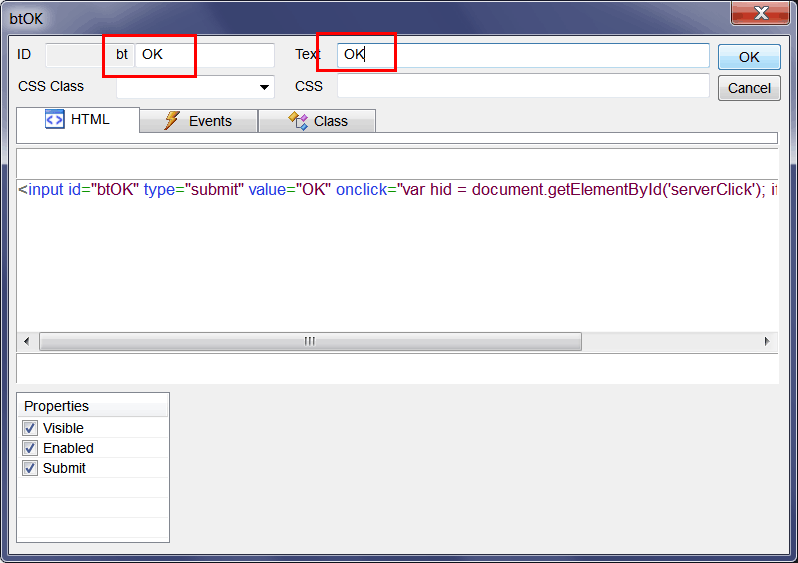

Insert two Submit buttons after the main table: an OK button and a Cancel button as shown below.

ItemPageButtonOK

ItemPageButtonCancel

Step L

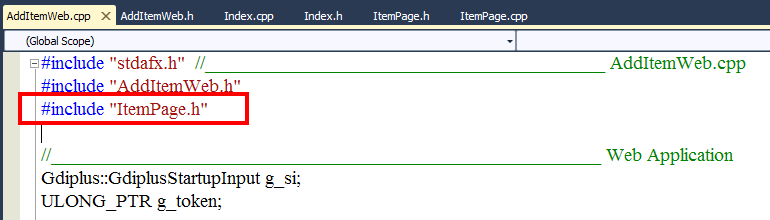

Edit the AddItemWeb.cpp file to include the ItemPage.h file as shown below.

ItemPageInclude

Step M
Edit the Index.cpp file as shown.

Index.cpp
... same as before
void Index::btInsert_Click(Web::HttpConnector& h)
{
     h.NavigateTo(L"ItemPage");
}


Step N
Edit the ItemPage.cpp file as shown

ItemPage.cpp
...
void ItemPage::Window_Open(Web::HttpConnector& h)
{
     //________________________________________________ 1. Fill the category drop down list and the brand drop down list
     Sql::SqlConnection conn;
     try
     {
          //conn.OpenSession(DSN, USERNAME, PASSWORD); //Control Panel>Administrative Tools>Data Sources (ODBC)>Create dsn_myDatabase
          conn.OpenSession(NULL, CONNECTION_STRING);
          conn.ExecuteSelect(L"SELECT category_id, descr FROM category", 100, ddCategory);
          conn.ExecuteSelect(L"SELECT brand_id, descr FROM brand", 100, ddBrand);
     }
     catch (Sql::SqlException e)
     {
          this->MessageBox(e.GetDescription(), L"Error", MB_OK | MB_ICONERROR);
     }
     if (h.FirstTime == true)
     {
          //_______________________________________________ 2. Select default values
          ddCategory.SelectedIndex = 0;
          ddBrand.SelectedIndex = 0;
     }
}

void ItemPage::btOK_onclick(Web::HttpConnector& h)
{
     //__________________________________________________________ 1. Get category_id
     LPARAM category_id;
     if (ddCategory.GetSelectedData(category_id) == false) return;
     //__________________________________________________________ 2. Get brand_id
     LPARAM brand_id;
     if (ddBrand.GetSelectedData(brand_id) == false) return;
     //__________________________________________________________ 3. Get Name and Model
     wstring name = tbxName.Text;
     wstring model = tbxModel.Text;
     //__________________________________________________________ 4. Validate (you may use regular expressions)
     if (name.length() <= 2)
     {
          tbxName.ShowBalloonTip(L"Item Name", L"The item name must contain at least three characters", TTI_ERROR);
          return;
     }
     if (model.length() <= 2)
     {
          tbxModel.ShowBalloonTip(L"Item Model", L"The item model must contain at least three characters", TTI_ERROR);
          return;
     }
     //__________________________________________________________ 5. Create INSERT statement
     wstring cmd;
     Sys::Format(cmd,
               L"INSERT INTO item (descr, model, brand_id, category_id) VALUES('%s', '%s', %d, %d)",
               name.c_str(), model.c_str(), brand_id, category_id);
     //__________________________________________________________ 6. Execute INSERT
     Sql::SqlConnection conn;
     int rows = 0;
     try
     {
          //conn.OpenSession(DSN, USERNAME, PASSWORD); //Control Panel>Administrative Tools>Data Sources (ODBC)>Create dsn_myDatabase
          conn.OpenSession(NULL, CONNECTION_STRING);
          rows = conn.ExecuteNonQuery(cmd);
          if (rows != 1)
          {
               this->MessageBox(Sys::Convert::ToString(rows), L"Error - inserted rows", MB_OK | MB_ICONERROR);
          }
          h.NavigateTo(L"Index");
     }
     catch (Sql::SqlException e)
     {
          this->MessageBox(e.GetDescription(), L"Error", MB_OK | MB_ICONERROR);
     }
}

void ItemPage::btCancel_onclick(Web::HttpConnector& h)
{
     h.NavigateTo(L"Index");
}

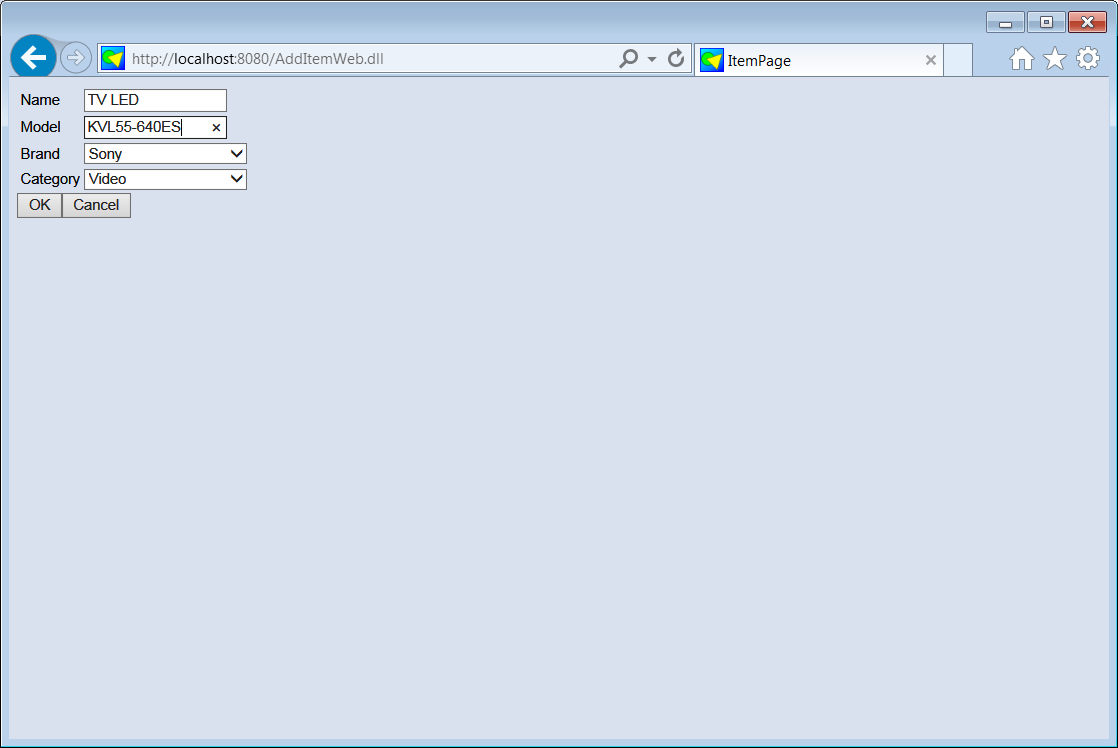

ItemPageRun

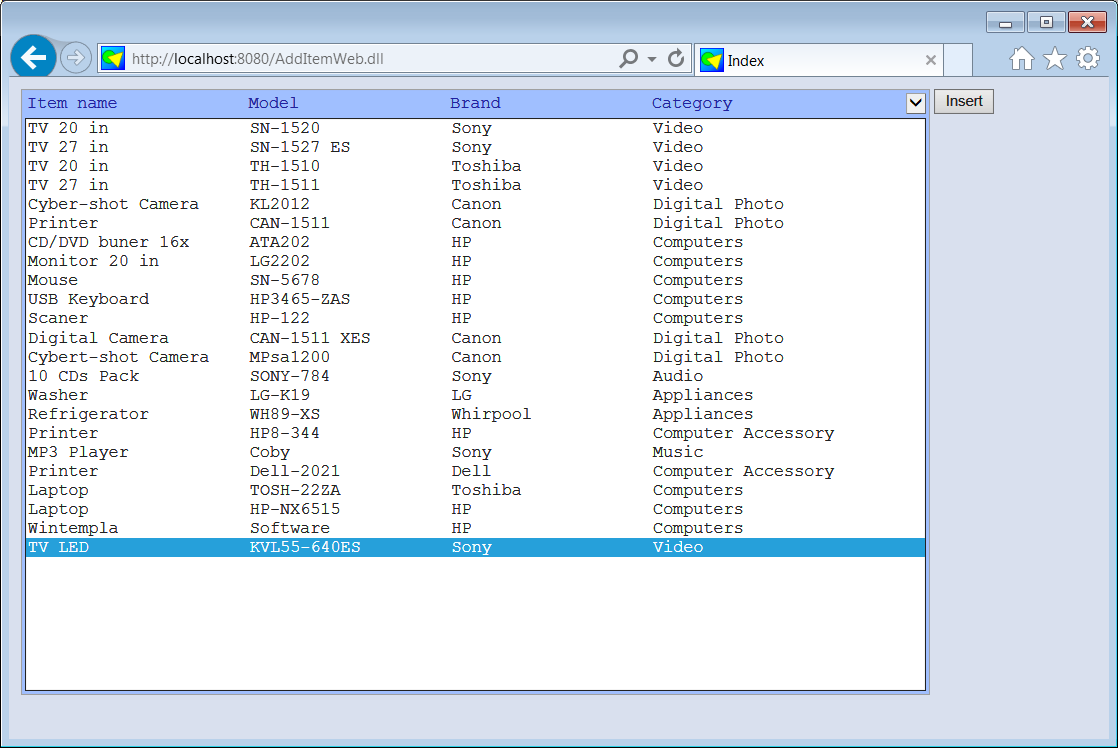

AddItemInsertion

Problem 3
Create a project called AddItemS to add an item using a Windows Form application in C#. To show the AddItem form (dialog) use the following code:

AddItemS.cs
...
AddItemForm addItemForm = new AddItemForm();
addItemForm.ShowDialog();


AddItemForm.cs
...
{
     SqlConnection conn = new SqlConnection("some connection string");
     try
     {
          String cmd = "INSERT INTO item (descr, model, brand_id, category_id) VALUES('";
          cmd += tbxDescr.Text;
          cmd += ", '";
          cmd += tbxModel.Text;
          ...
          conn.Open();
          sql = new SqlCommand(cmd, conn);
          int result = sql.ExecuteNonQuery();
          if (result == 1)
          {

          }
          else
          {

          }
     }
     catch (SqlException ex)
     {
          error.Append("Error ExecuteNonQuery", cmd, ex.Message);
     }
     finally
     {
          conn.Close();
     }
}


Problem 4
Use Wintempla to convert the AddItem desktop application to a Dual application. You need to Add a new project (Web Application) to your AddItem project.

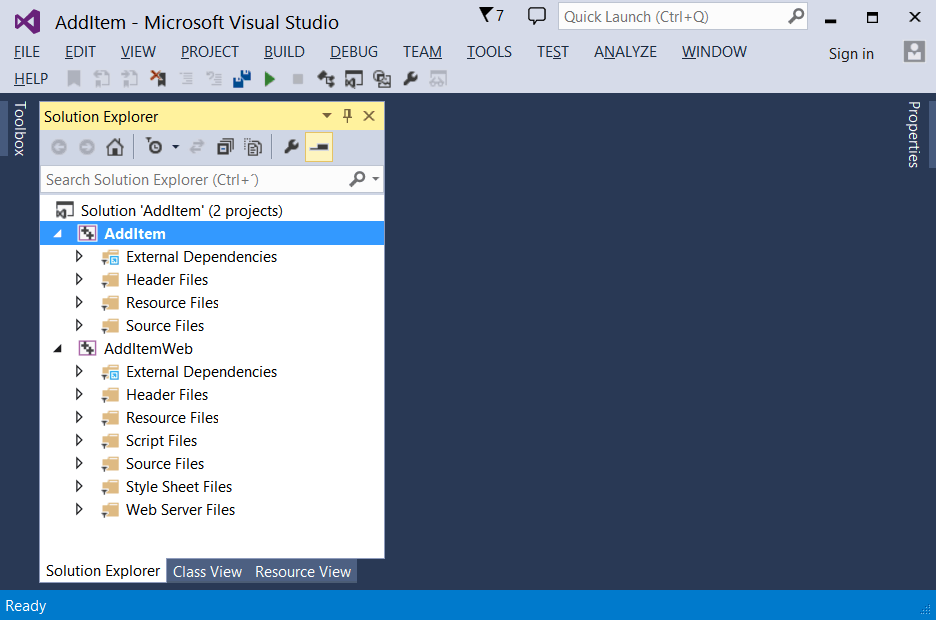

DualSolutionExplorer

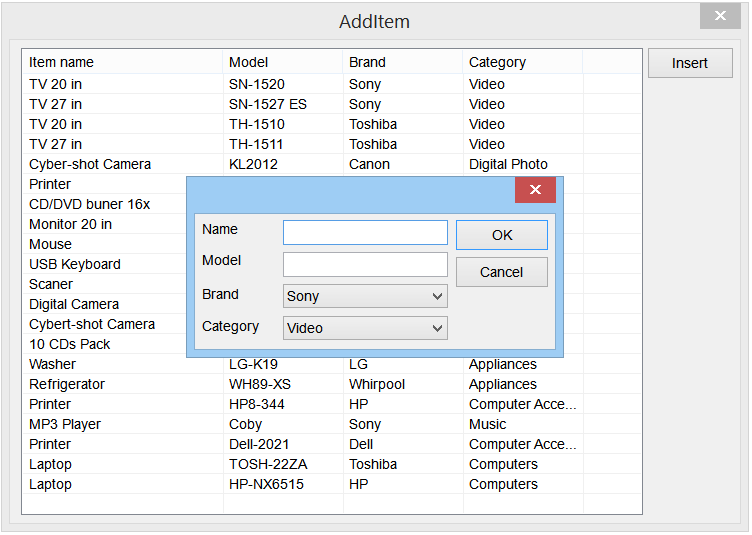

DualAddItemDesktopRun

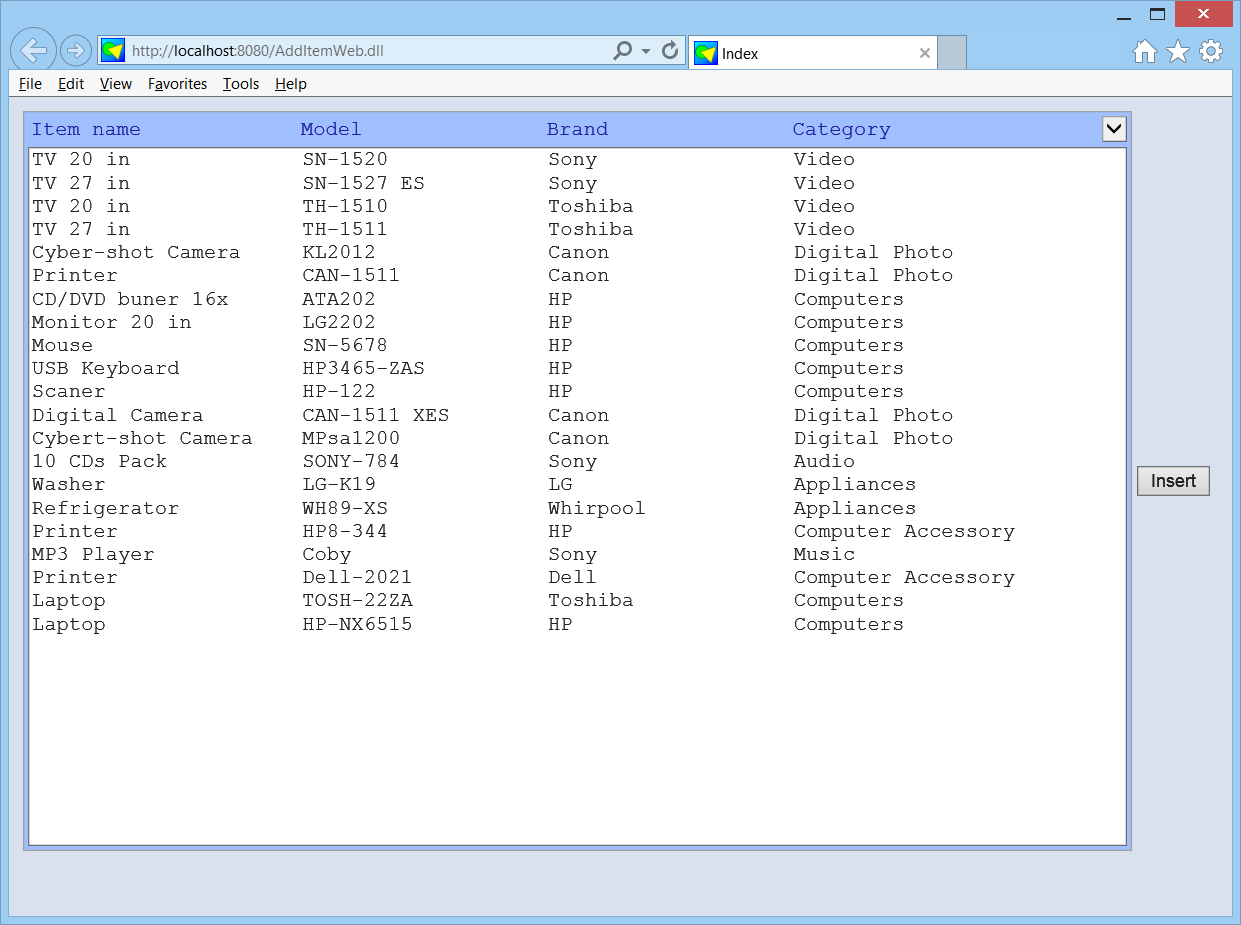

DualAddItemWebRun

AddItem.cpp
...
void AddItem::Window_Open(Win::Event& e)
{
     //________________________________________________ 1. lvItem: Column Setup
     lvItem.Cols.Add(0, LVCFMT_LEFT, 200, L"Item name");
     lvItem.Cols.Add(1, LVCFMT_LEFT, 120, L"Model");
     lvItem.Cols.Add(2, LVCFMT_LEFT, 120, L"Brand");
     lvItem.Cols.Add(3, LVCFMT_LEFT, 120, L"Category");
      //_______________________________________________ 2. Fill the list view control with the items
     lvItem.SetRedraw(false); // stop redrawing the control when inserting items
     AddItemDual::Window_Open(*this, NULL);
     lvItem.SetRedraw(true);
}

void AddItem::btInsert_Click(Win::Event& e)
{
     ItemDlg dlg;
     dlg.BeginDialog(hWnd);
     FillListView(*this, NULL);
}


ItemDlg.cpp
...
void ItemDlg::Window_Open(Win::Event& e)
{
     ItemDlgDual::Window_Open(*this, NULL);
     //_______________________________________________ 2. Select default values
     ddCategory.SelectedIndex = 0;
     ddBrand.SelectedIndex = 0;
}

void ItemDlg::btOK_Click(Win::Event& e)
{
     ItemDlgDual::btOK_Click(*this, NULL);
}

void ItemDlg::btCancel_Click(Win::Event& e)
{
     this->EndDialog(FALSE);
}

AddItemDual.h
#pragma once //_____________________________________________ AddItemDual.h

class AddItemDual
{
public:
     AddItemDual()
     {
          Init();
     }
     ~AddItemDual()
     {
     }
     void FillListView(Sys::IWindow& window, Web::HttpConnector* h);
     ...
};
CODE AddItemDual.cpp
#include "stdafx.h" //_____________________________________________ AddItemDual.cpp
#include "AddItemDual.h"

void AddItemDual::Window_Open(Sys::IWindow& window, Web::HttpConnector* h)
{
     FillListView(window, h);
}

void AddItemDual::btInsert_Click(Sys::IWindow& window, Web::HttpConnector* h)
{
}

void AddItemDual::FillListView(Sys::IWindow& window, Web::HttpConnector* h)
{
     lvItemD.DeleteAllItems();

     Sql::SqlConnection conn;
     try
     {
          //conn.OpenSession(DSN, USERNAME, PASSWORD); //Control Panel>Administrative Tools>Data Sources (ODBC)>Create dsn_myDatabase
          conn.OpenSession(window, CONNECTION_STRING);
          conn.ExecuteSelect(L"SELECT item_id, item_descr, model, brand_descr, category_descr FROM vw_item", 100, lvItemD);
     }
     catch (Sql::SqlException e)
     {
          window.MessageBox(e.GetDescription(), L"Error", MB_OK | MB_ICONERROR);
     }
}

Index.cpp
...
void Index::Window_Open(Web::HttpConnector& h)
{
     //________________________________________________ 1. lvItem: Column Setup
     lvItem.Cols.Add(LVCFMT_LEFT, 22, L"Item name");
     lvItem.Cols.Add(LVCFMT_LEFT, 20, L"Model");
     lvItem.Cols.Add(LVCFMT_LEFT, 20, L"Brand");
     lvItem.Cols.Add(LVCFMT_LEFT, 25, L"Category");
     lvItem.Height = 30;
     AddItemDual::Window_Open(*this, &h);
}

void Index::btInsert_onclick(Web::HttpConnector& h)
{
     //AddItemDual::btInsert_Click(*this, &h);
     h.NavigateTo(L"ItemPage");
}

ItemDlgDual.cpp
...
void ItemDlgDual::Window_Open(Sys::IWindow& window, Web::HttpConnector* h)
{
     //________________________________________________ 1. Fill the category drop down list and the brand drop down list
     Sql::SqlConnection conn;
     try
     {
          //conn.OpenSession(DSN, USERNAME, PASSWORD); //Control Panel>Administrative Tools>Data Sources (ODBC)>Create dsn_myDatabase
          conn.OpenSession(window, CONNECTION_STRING);
          conn.ExecuteSelect(L"SELECT category_id, descr FROM category", 100, ddCategoryD);
          conn.ExecuteSelect(L"SELECT brand_id, descr FROM brand", 100, ddBrandD);
     }
     catch (Sql::SqlException e)
     {
          window.MessageBox(e.GetDescription(), L"Error", MB_OK | MB_ICONERROR);
     }
}

void ItemDlgDual::btOK_Click(Sys::IWindow& window, Web::HttpConnector* h)
{
     //__________________________________________________________ 1. Get category_id
     LPARAM category_id;
     if (ddCategoryD.GetSelectedData(category_id) == false) return;
     //__________________________________________________________ 2. Get brand_id
     LPARAM brand_id;
     if (ddBrandD.GetSelectedData(brand_id) == false) return;
     //__________________________________________________________ 3. Get Name and Model
     wstring name = tbxNameD.Text;
     wstring model = tbxModelD.Text;
     //__________________________________________________________ 4. Validate (you may use regular expressions)
     if (name.length() <= 2)
     {
          tbxNameD.ShowBalloonTip(L"Item Name", L"The item name must contain at least three characters", TTI_ERROR);
          return;
     }
     if (model.length() <= 2)
     {
          tbxModelD.ShowBalloonTip(L"Item Model", L"The item model must contain at least three characters", TTI_ERROR);
          return;
     }
     //__________________________________________________________ 5. Create INSERT statement
     wstring cmd;
     Sys::Format(cmd,
               L"INSERT INTO item (descr, model, brand_id, category_id) VALUES('%s', '%s', %d, %d)",
               name.c_str(), model.c_str(), brand_id, category_id);
     //__________________________________________________________ 6. Execute INSERT
     Sql::SqlConnection conn;
     int rows = 0;
     try
     {
          //conn.OpenSession(DSN, USERNAME, PASSWORD); //Control Panel>Administrative Tools>Data Sources (ODBC)>Create dsn_myDatabase
          conn.OpenSession(window, CONNECTION_STRING);

          rows = conn.ExecuteNonQuery(cmd);
          if (rows!=1)
          {
               window.MessageBox(Sys::Convert::ToString(rows), L"Error - inserted rows", MB_OK | MB_ICONERROR);
          }
          if (h == NULL)
          {
               window.EndDialog(TRUE);
          }
          else
          {
               h->NavigateTo(L"Index");
          }
     }
     catch (Sql::SqlException e)
     {
          window.MessageBox(e.GetDescription(), L"Error", MB_OK | MB_ICONERROR);
     }
}

void ItemDlgDual::btCancel_Click(Sys::IWindow& window, Web::HttpConnector* h)
{
}

ItemPage.cpp
...
void ItemPage::Window_Open(Web::HttpConnector& h)
{
     ItemDlgDual::Window_Open(*this, &h);
     if (h.FirstTime == true)
     {
          //_______________________________________________ 2. Select default values
          ddCategory.SelectedIndex = 0;
          ddBrand.SelectedIndex = 0;
     }
}

void ItemPage::btOK_onclick(Web::HttpConnector& h)
{
     ItemDlgDual::btOK_Click(*this, &h);
}

void ItemPage::btCancel_onclick(Web::HttpConnector& h)
{
     //ItemDlgDual::btCancel_Click(*this, &h);
     h.NavigateTo(L"Index");
}

© Copyright 2000-2019 Wintempla selo. All Rights Reserved. Sep 05 2019. Home
