HTML (Hyper Text Markup Language)


Hypertext Markup Language (HTML)

It is a text language that allows creating Web pages. The web pages can be stored in a hard drive, in a web server or can be dynamically created. These pages provide a layout to display text and common controls for user interaction (GUI elements). HTML is a very simple language and it is easy to learn. It is based on tags. HTML is used to send documents and information from a web server to an Internet browser. During the last years, the popularity of HTML has quickly grown. HTML is used in emails such as Yahoo, Outlook, Hotmail, etc.

Tip

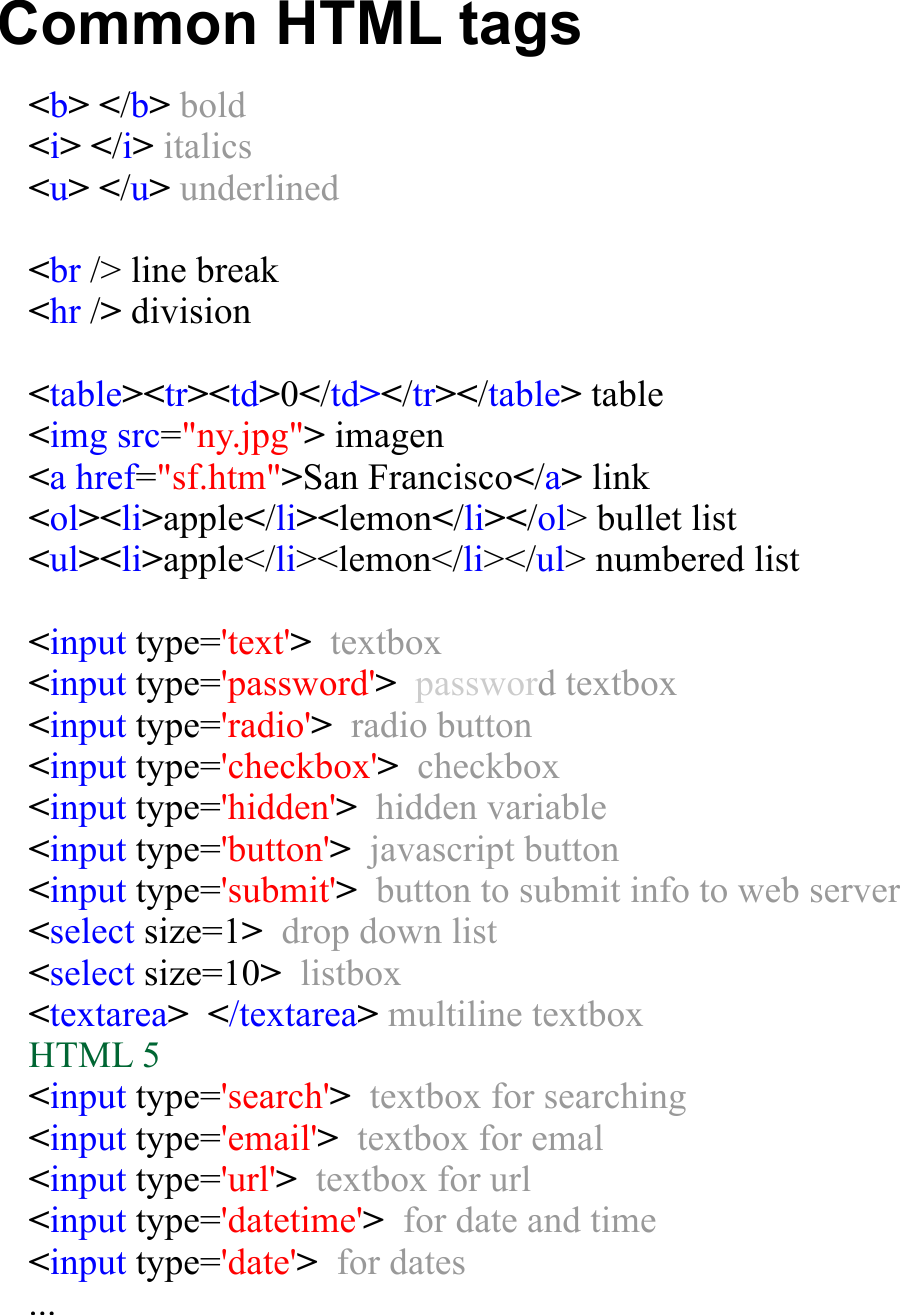

HTML was born because at the beginning of the Internet all the transactions were mainly based on text. Thus, in order to provide a Graphic User Interface to access the Internet, HTML was created. HTML is interpreted by the browser (IE, FireFox, Microsoft Edge, Google Chrome, Safari, Opera, ...). HTTP is used to move HTML text from the server to the client.

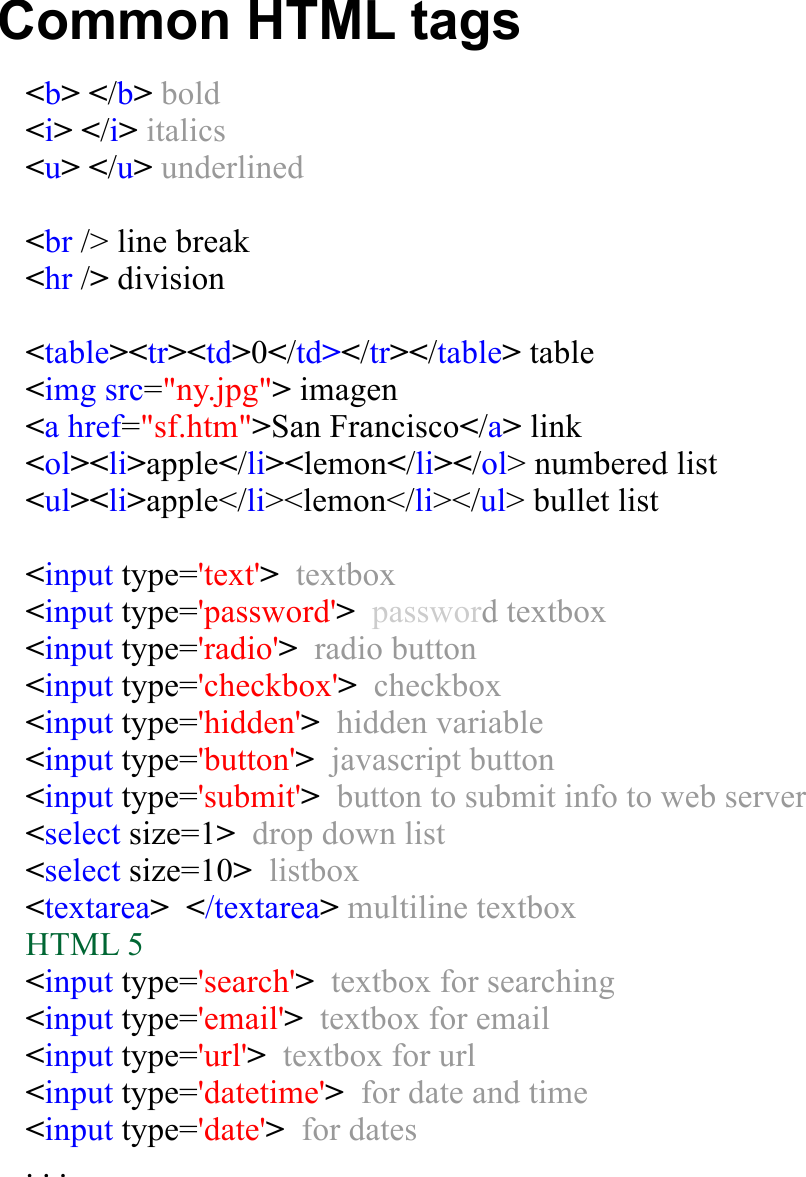

htmlTags

Problem 1

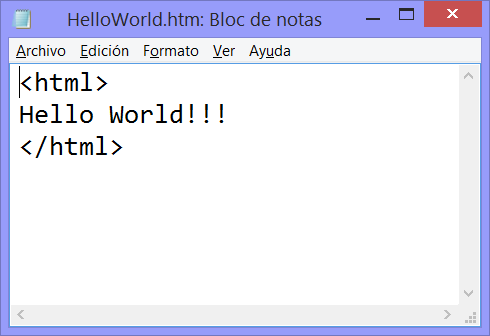

Create a basic Hello World web page using the basic tag <html>.

Step A
Open Notepad and write the following code.

HelloWorld

Step B

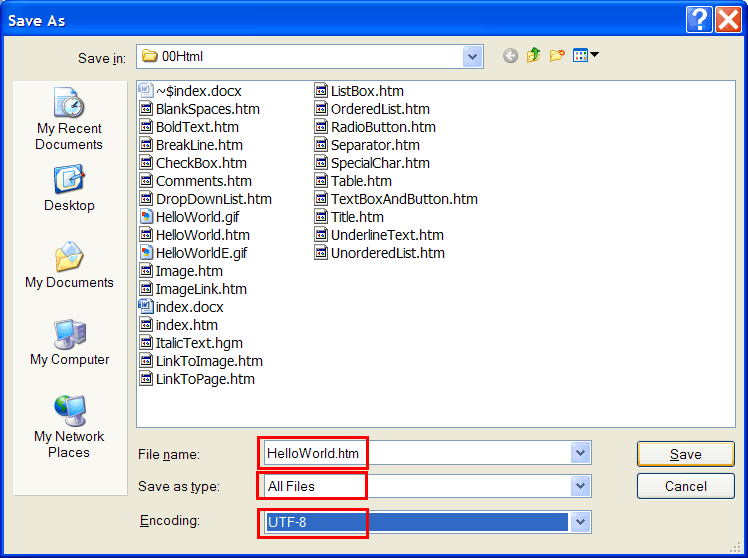

Save the file as HelloWorld.htm using UTF-8 as shown. Be sure to save the file as HelloWorld.htm and not as HelloWorld.htm.txt.

HelloWorldS

Step C

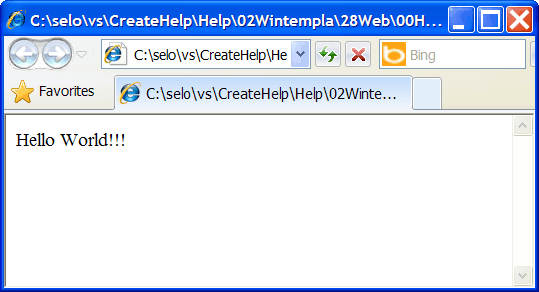

Double click the file to open it with your default Internet browser.

HelloWorldE

Tip
A tag begins with the less than symbol and end with the greater than symbol. A tag that is open may be closed with a closing tag. For instance the <html> tag is closed with </html>. The space between these two tags is used to play other tags or other elements.

Problem 2

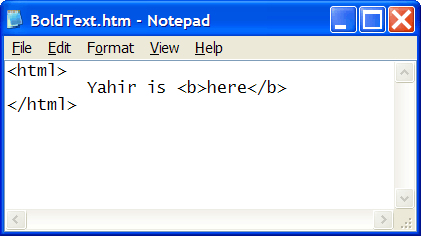

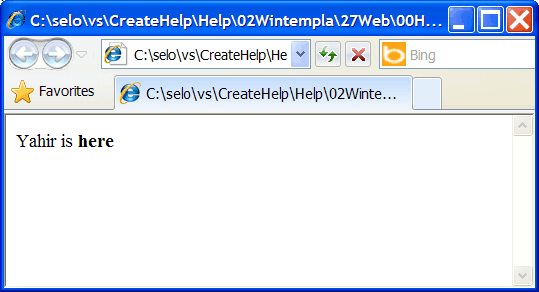

Create an html file called BoldText.htm to display text in bold.

BoldText

BoldTextE

Problem 3

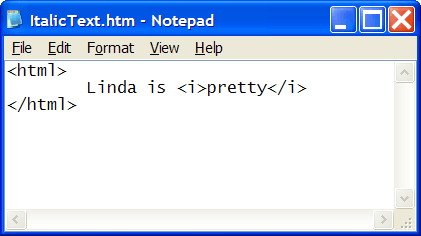

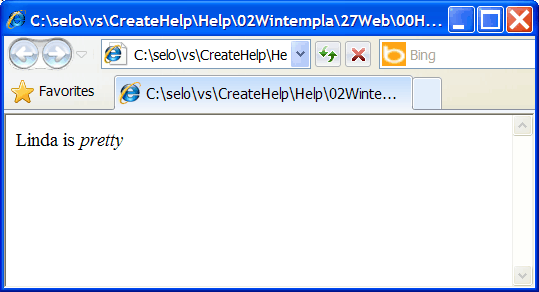

Create an html file called ItalicText.htm to display text in italics.

ItalicText

ItalicTextE

Problem 4

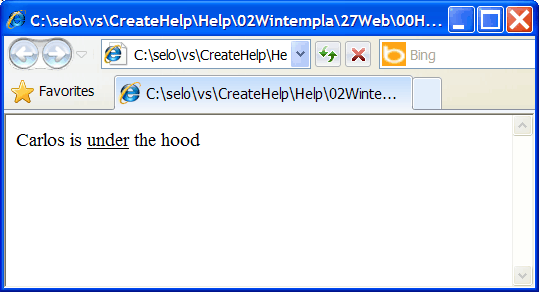

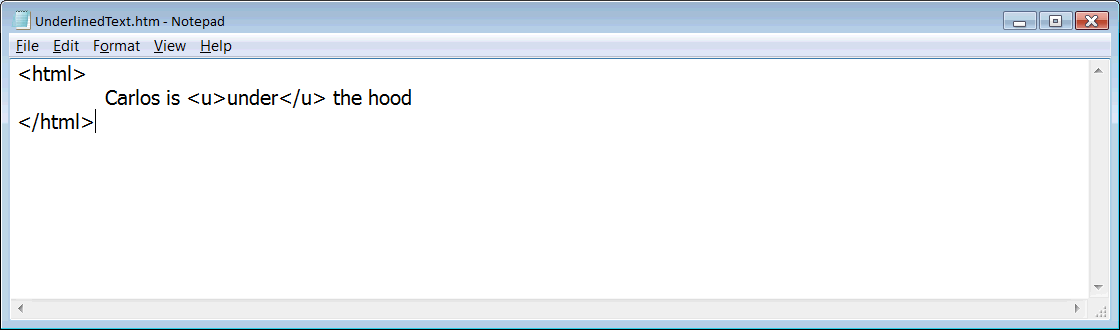

Create an html file called UnderlinedText.htm to display underlined text.

UnderlinedText

UnderlinedTextE

Head and Body

An html page is divides in two main parts: head and body. The head is used to place main information about the page such as its title, its keywords and general configuration parameters. The body is where most of the web elements are placed.

Problem 5

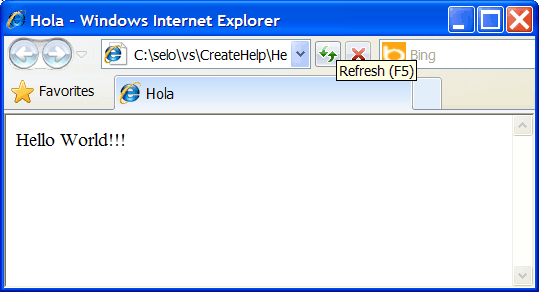

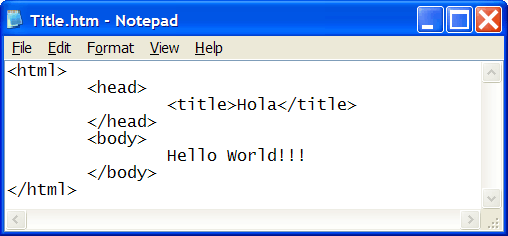

Create an html file called Title.htm to set the title of a web page

Title

TitleE

Spaces, Line Returns and Tabs

Spaces, Line returns and tabs may be ignored by the browser. There are some special commands to explicitly indicate to the browser to display the spaces, the line returns or the tabs.

Problem 6

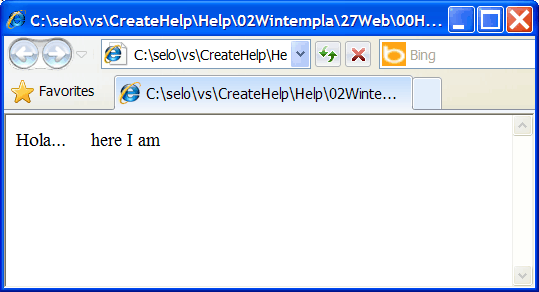

Create an html file called BlankSpaces.htm to display some blank spaces in a web page

BlankSpaces

BlankSpacesE

Problem 7

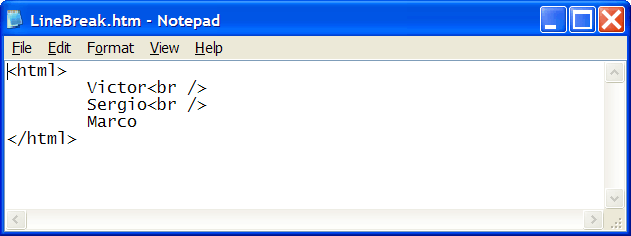

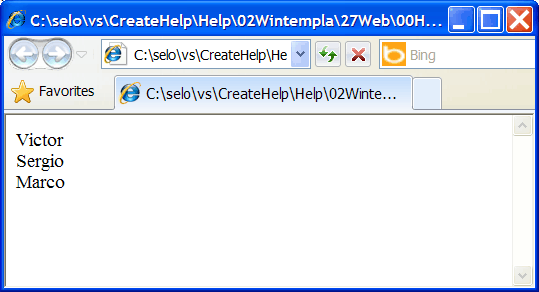

Create an html file called LineBreak.htm to display some blank spaces in a web page

LineBreak

LineBreakE

Comments

A comment is some text that can be written in a web page that provides information to the programmer but it is not displayed in the web page. There are several reasons why programmers used comments. For instance, they are used to organize and separated the code so that it can easily be read.

Problem 8

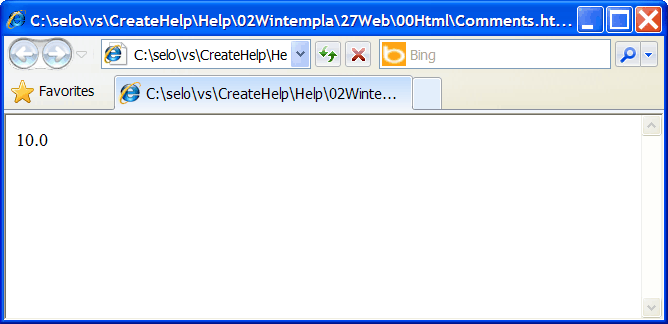

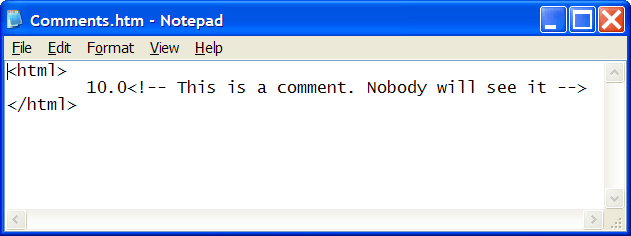

Create an html file called Comments.htm to include some comments in a web page

Comments

CommentsE


An image can be stored in several formats. Each format has its advantages and disadvantages. The JPG format is typically used for photos because it can be compressed without losing a lot of detail. The GIF format may produce small file without losing any detail; the only problem of the GIF format is that it has maximum resolution of 256 colors. The GIF forma is used when the image has simple drawings. The PNG is one of the best formats because it has all advantages of the GIF format without the restriction in the color resolution. Most new browsers support the PNG format. A scalable vector graphics (SVG) file can be stored a vector image using text (XML). The SVG format is very compact and useful for diagrams and in general any kind of drawing.

Problem 9

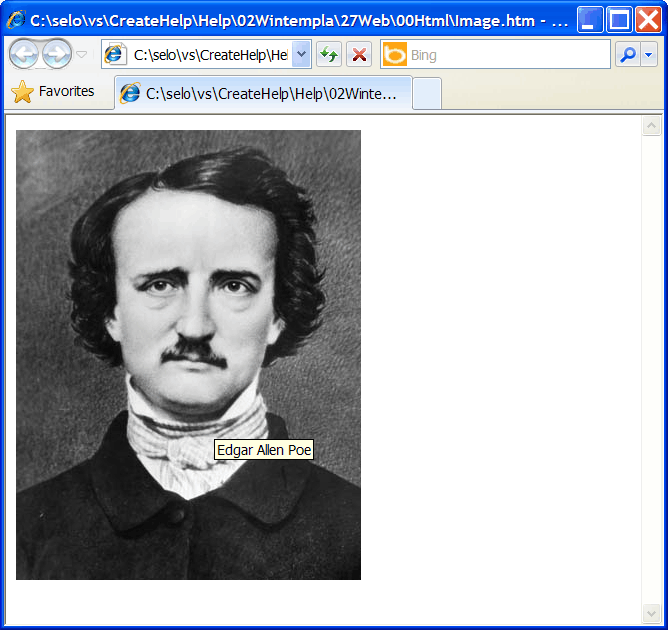

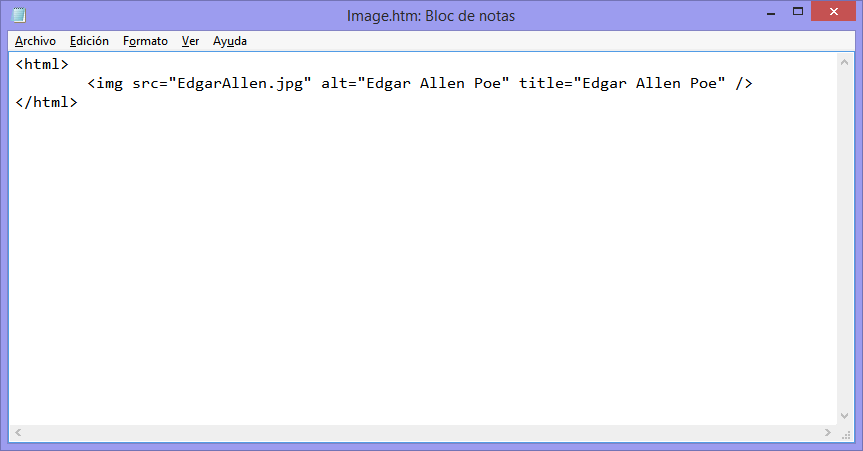

Create an html file called Image.htm to display an image in a web page. Be sure to place the image file in the folder as the Image.htm file.


ImageE

HREF and SCR

The HREF keyword in HTML specifies a link to a figure, another document or in general to anything in. The SCR keyword in HTML specifies the source of a resource. Links in HTML offer several options to specify the location of resources. There are:
  • Simple Link (Links to the same location where the document is)
  • Absolute links
  • Relative links

Simple Links

When the resource (image, document, etc.,) is located in the same folder as the HTML document, the HREF is a simple link as shown in the example below. In the previous problem, the EdgarAllen.jpg file must be in the location as the HTML file so that the browser can find it.

Absolute Links

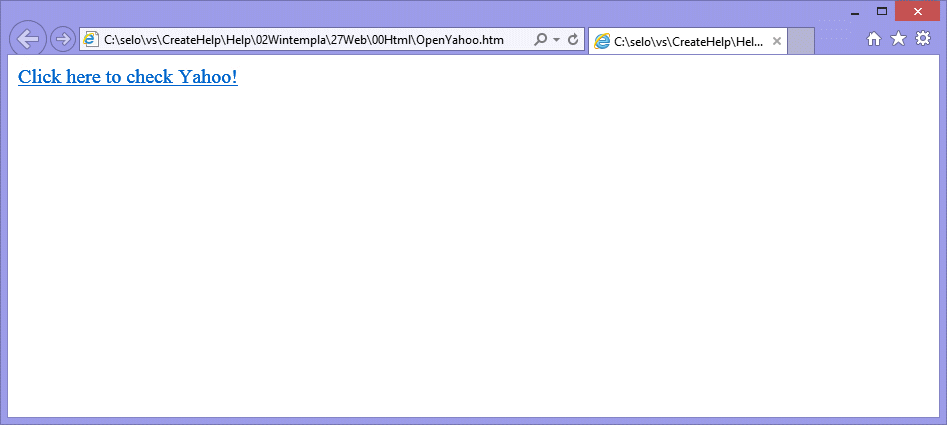

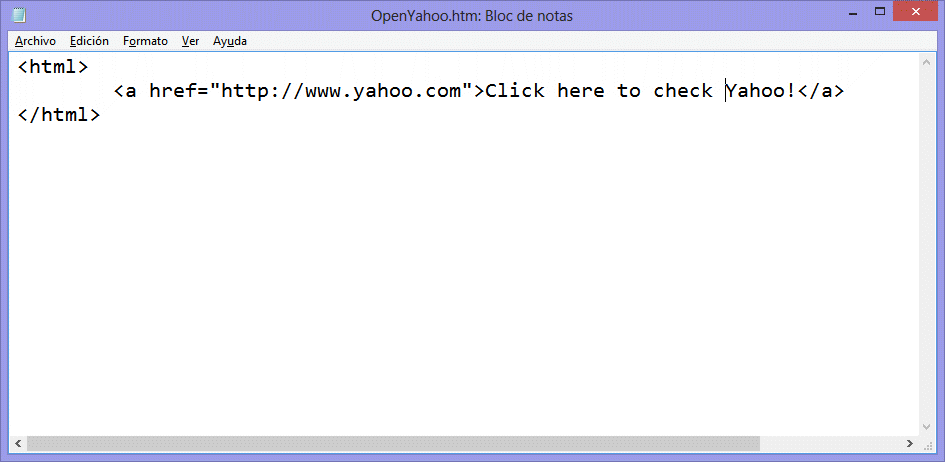

Absolute links are used specify the full URL of the resource. They are useful, when the location of the resource does not frequently change. In the figure below the link opens Yahoo!. In this case the link uses the HTTP protocol, you can also use: https, file, mailto, ftp, etc.

OpenYahoo

Yahoo

Relative Links

Relative links are used when it is convenient to specify only part of the location of the resource. In the example, below the Robin.jpg figure is in the Image folder (which is one level up the location of the HMTL document) and, the Bird.jpg figure is in the Resource folder that is located one level down from the location of the HTML file. Finally, the logo.jpg image is in a folder called web at the root level of the web server.

  tag    location
<img src="EdgarAllen.jpg" />\Web\Program\EdgarAllen.jpg
<img src="Imagen/Robin.jpg" />\Web\Program\Imagen\Robin.jpg
<img src="../Resource/Bird.jpg" />\Web\Resource\Bird.jpg
<img src="/Web/Logo.jpg" />\Web\Logo.jpg

Tip

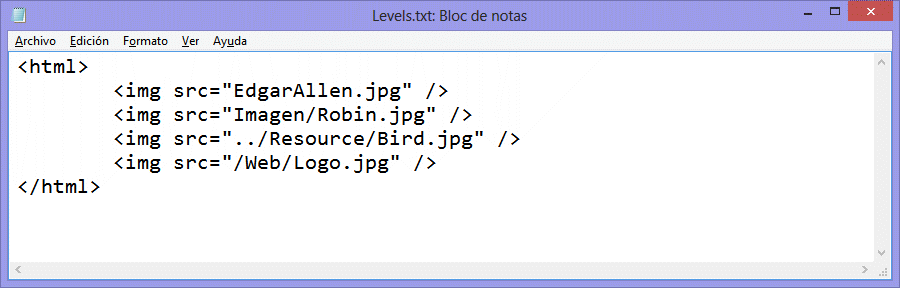

In the example below, suppose that the Levels.htm file is located in: \Web\Program.

Levels

One Level Down

In HTML, it is very important to avoid links that depend on a specific location. Thus, one dot followed by another dot is used to express one level down in the folder structure. For instance, in order to find the Bird.jpg file in the previous example, the explorer goes one level down, and then it moves one level up to the Resource folder.

Problem 10

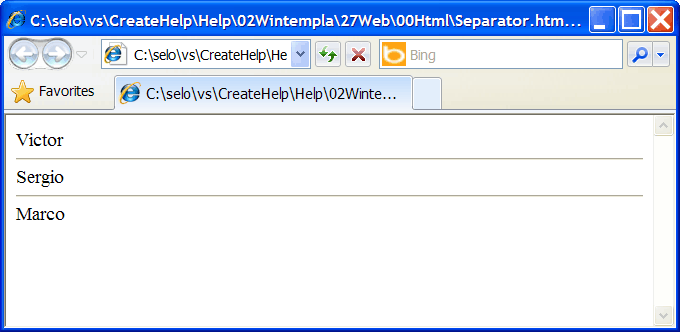

Create an html file called Separator.htm to display some separators in a web page.

Separator

SeparatorE

Tip
The html language supports many special characters. All the special characters begin with & and ends with a semicolon. For instance, the code of an ampersand is &amp;. The code for the division operator ÷ is &divide;.

Problem 11

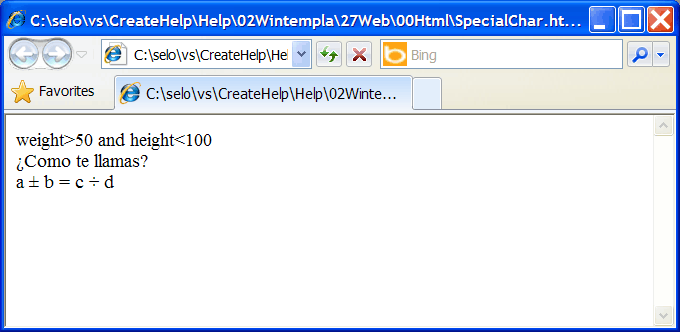

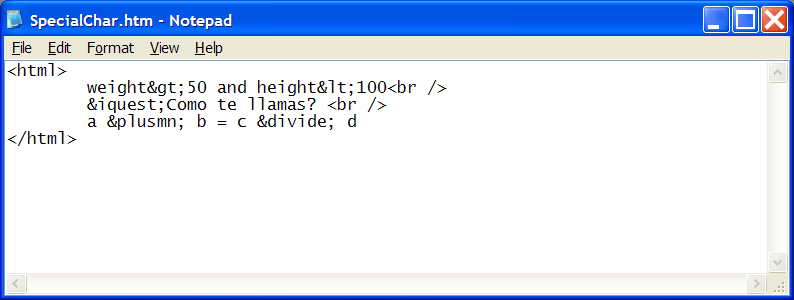

Create an html file called SpecialChar.htm to display some special characters in a web page.

SpecialChar

SpecialCharE

Problem 12
Search the Internet for a list of the special symbols in html.

Problem 13
Create an html file called OrderedList.htm to display an ordered list in a web page.

OrderedList

OrderedListE

Problem 14

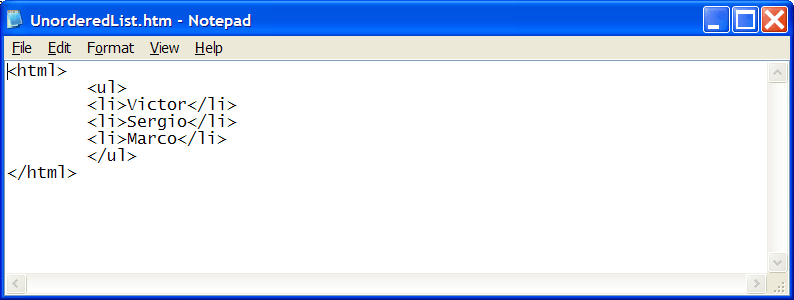

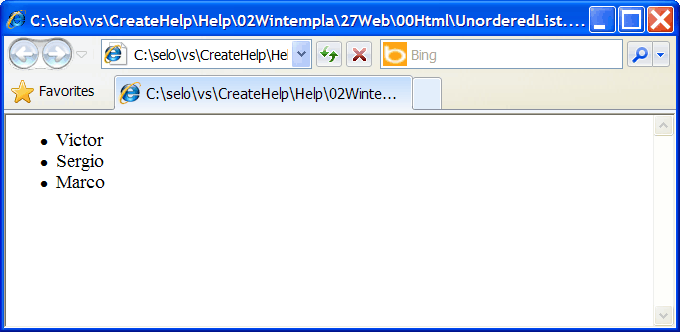

Create an html file called UnorderedList.htm to display an unordered list in a web page.

UnorderedList

UnorderedListE

table

A table is composed of rows (<tr> tags) and data (<td> tags). Tables may be used to display information arranged in rows and columns.

Problem 15

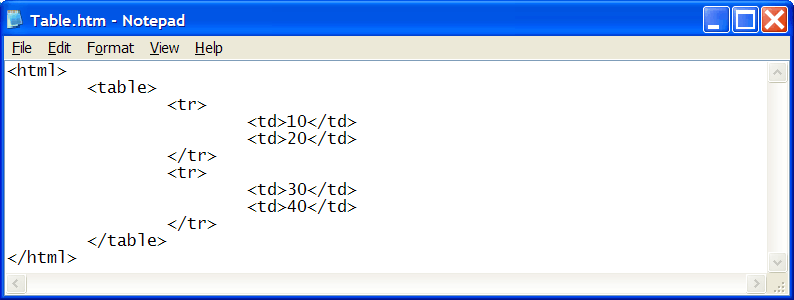

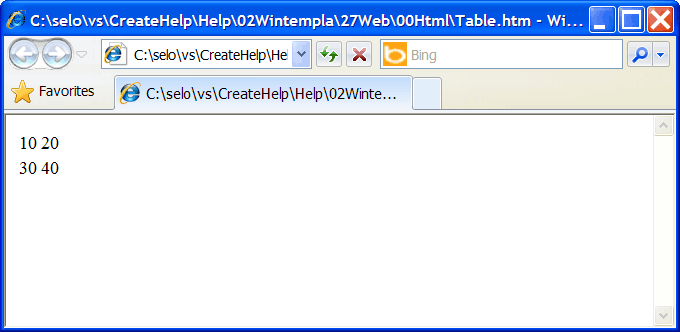

Create an html file called Table.htm to display a table in a web page. Usually a table does not display any border or background color, but it is possible to change its appearance.

Table

TableE

Problem 16

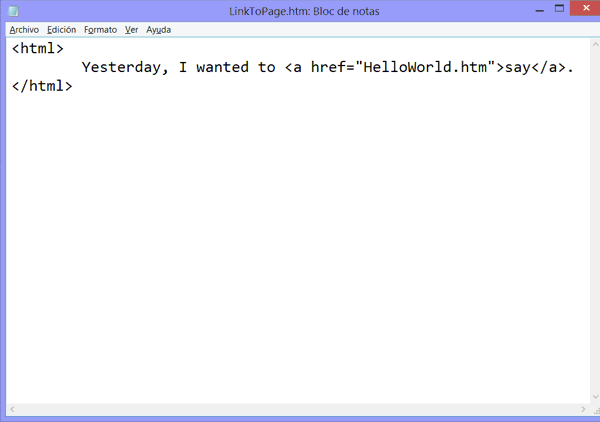

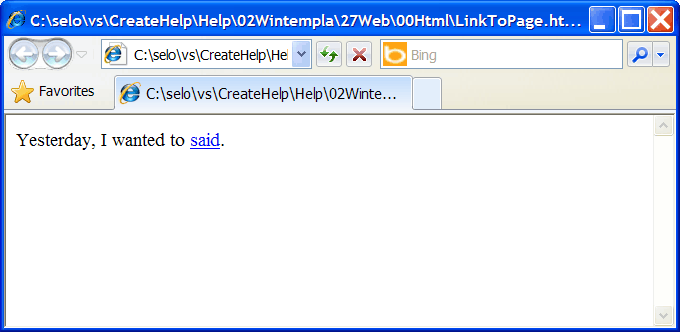

Create an html file called LinkToPage.htm to create a web page with a link: when the user clicks the link another web page is open.

LinkToPage

LinkToPageE

Problem 17

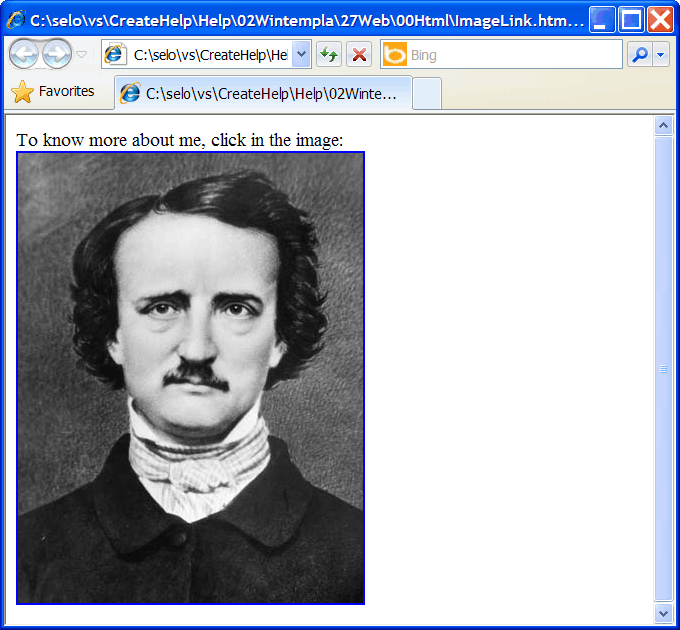

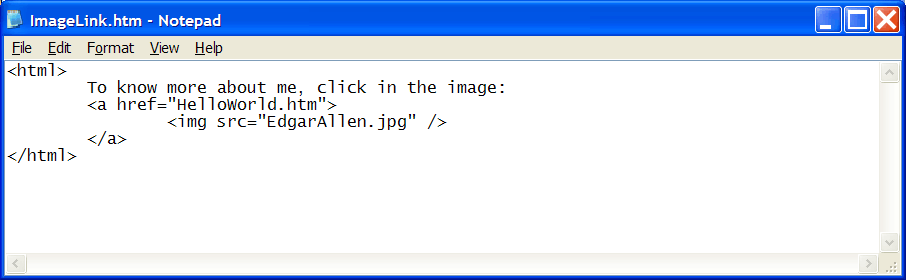

Create an html file called ImageLink.htm to create a web page with an image link: when the user clicks the image another web page is open.

ImageLink

ImageLinkE

Problem 18

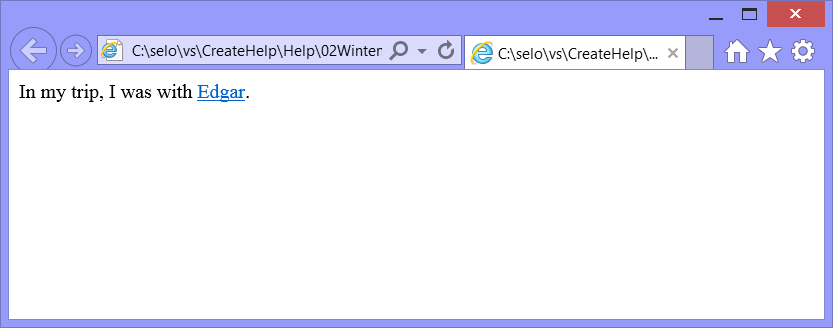

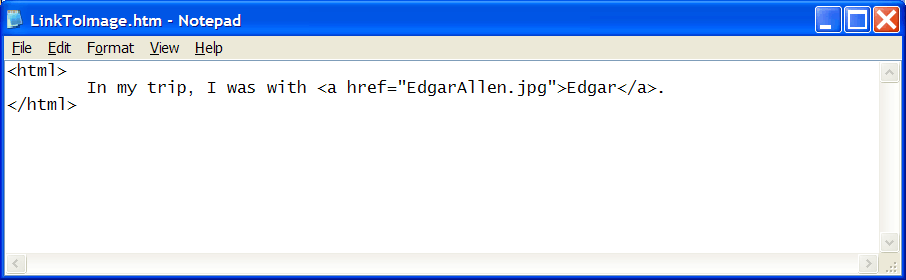

Create an html file called LinkToImage.htm to create a web page with a link to an image.

LinkToImage

LinkToImageE

Input Form

A web page may have some GUI elements to collect information and send it to the web server. These elements have a name and a value. For instance, when the user provides some text in a text box, the browser will send the name of the text box and the contents of the textbox will be sent as the value of the textbox. There are two methods to send this information: GET and POST. The browser creates a text string typically known as Query String with all the names and values of the GUI elements of the form. When GET is used the query string is appended to the end of the URL. When POST is used, the browser sends the query string after sending the request.

Problem 19

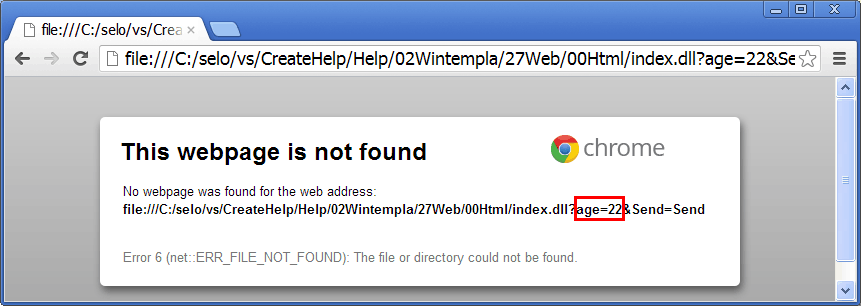

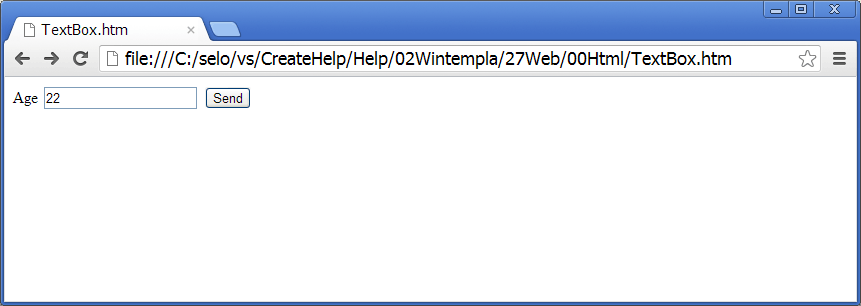

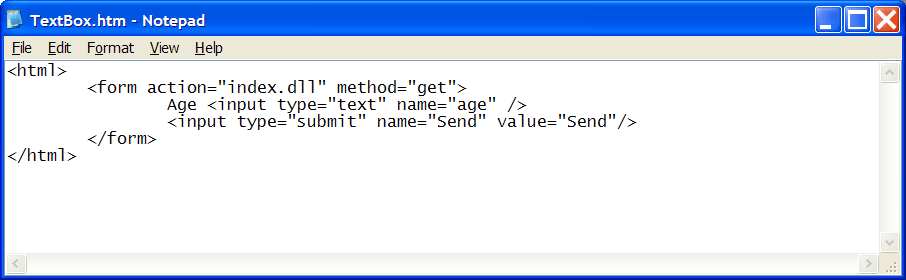

Create an html file called TextBox.htm to create display a textbox in a web page. In this case, the web server will receive the query string age=22&Send=Send. Note how the query string is appended after the original url.

TextBox

TextBoxE

TextBoxRequest

Problem 20

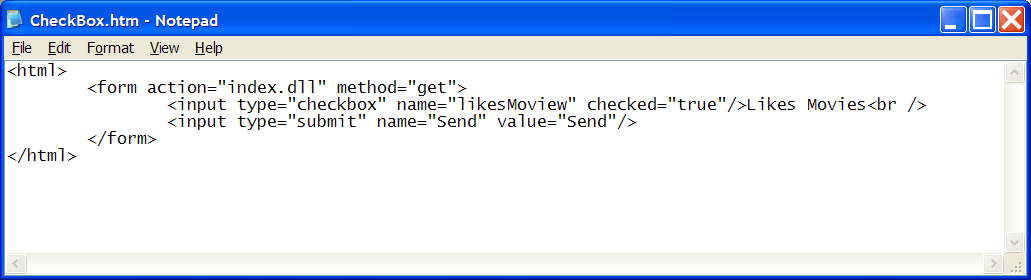

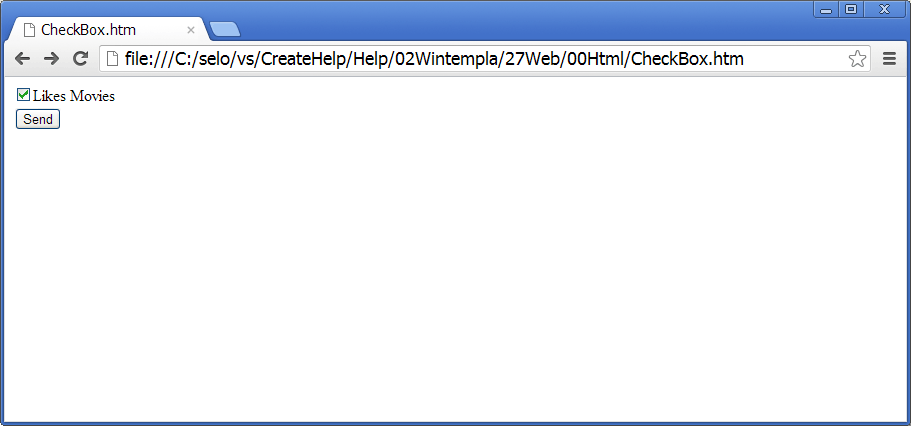

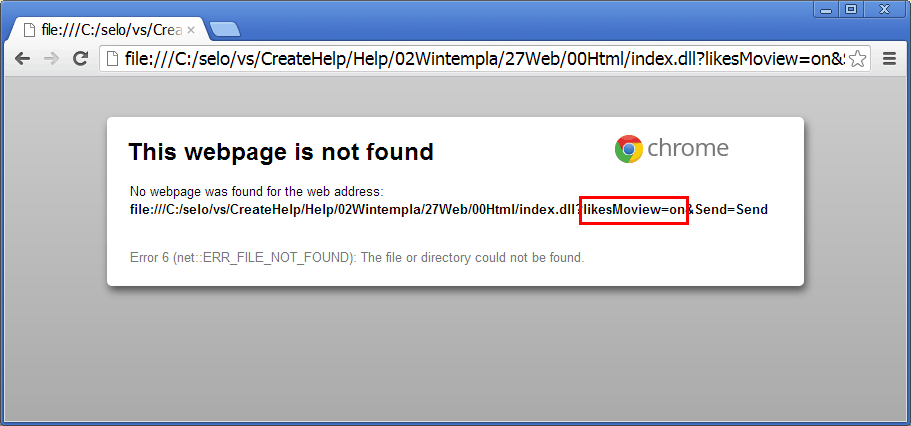

Create an html file called CheckBox.htm to create display test a checkbox in a web page.

CheckBox

CheckBoxE

CheckBoxRequest

Problem 21

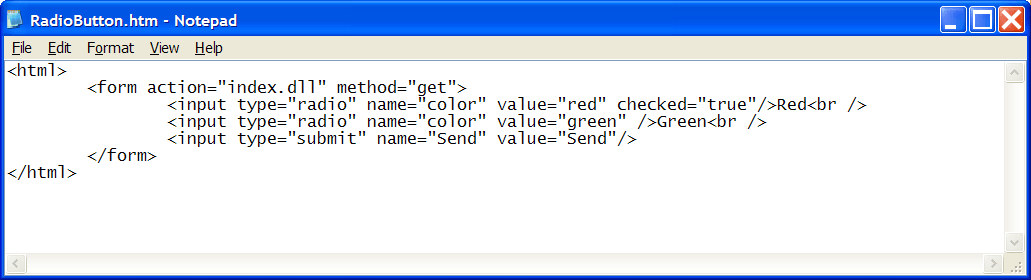

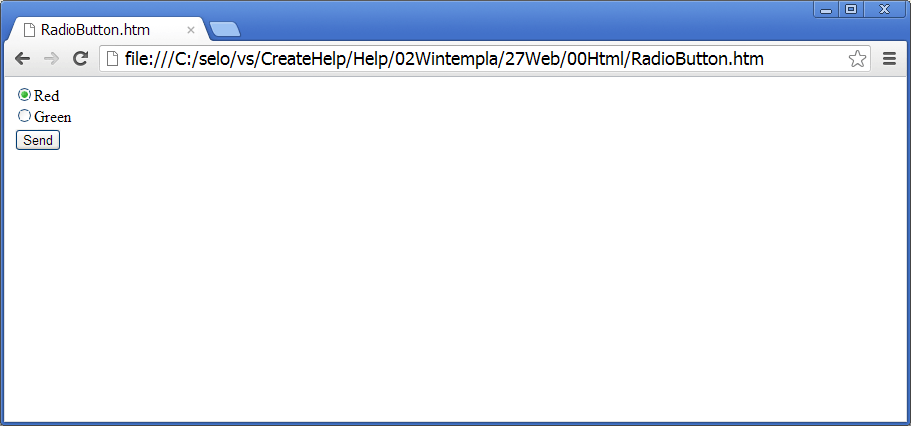

Create an html file called RadioButton.htm to create test a pair of radio buttons in a web page.

RadioButton

RadioButtonE

RadioButtonRequest

Problem 22

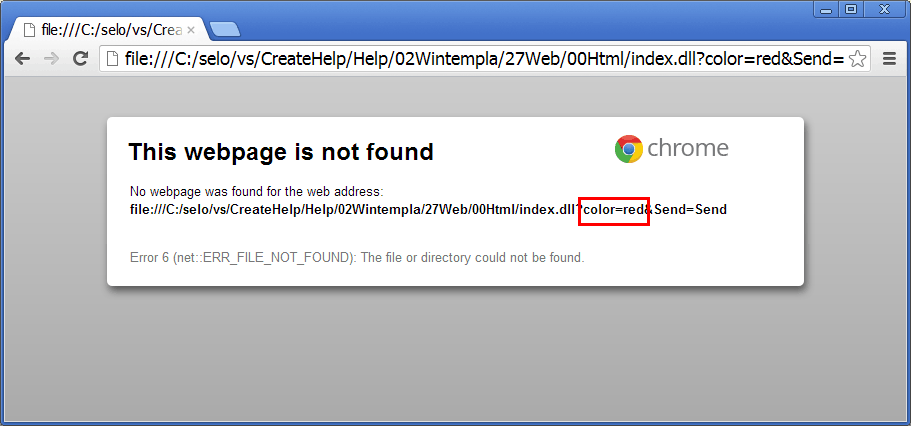

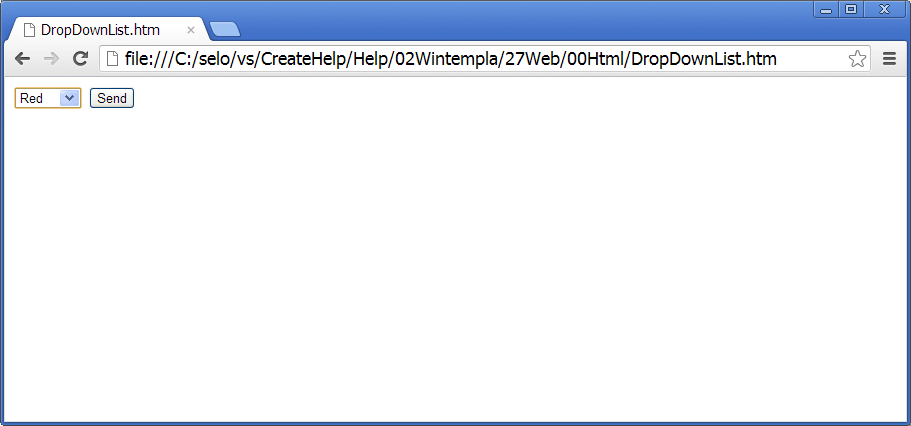

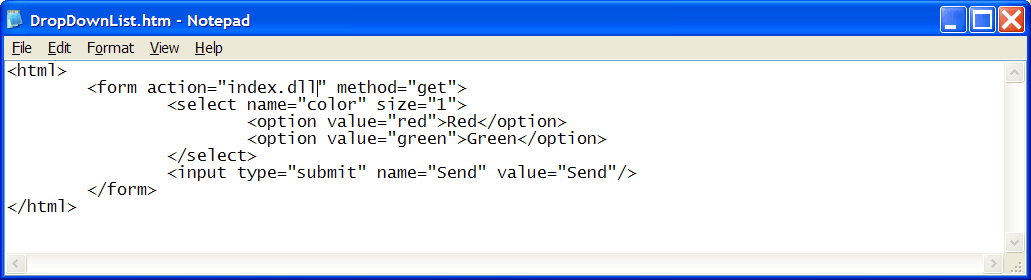

Create an html file called DropDownList.htm to create test a drop down list in a web page.

DropDownList

DropDownListE

DropDownListRequest

Problem 23

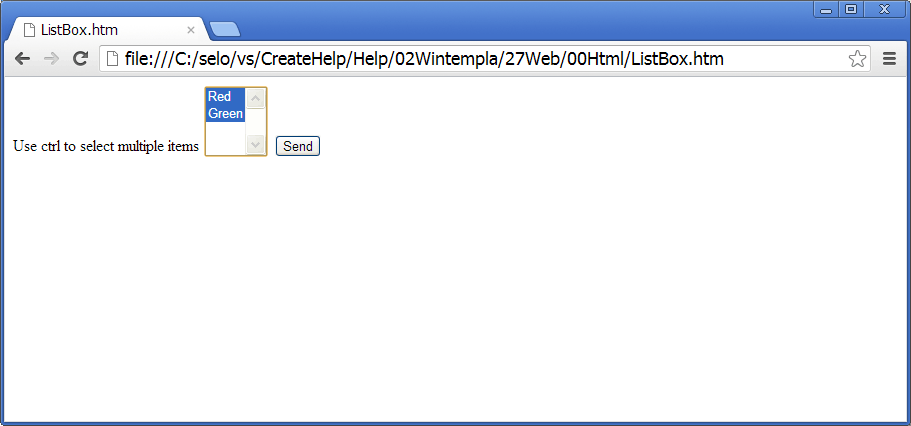

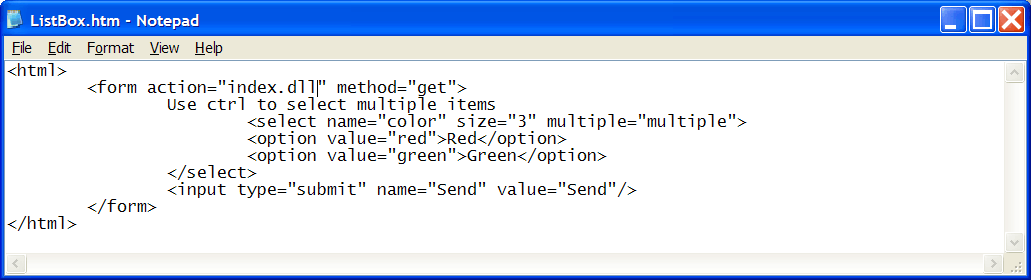

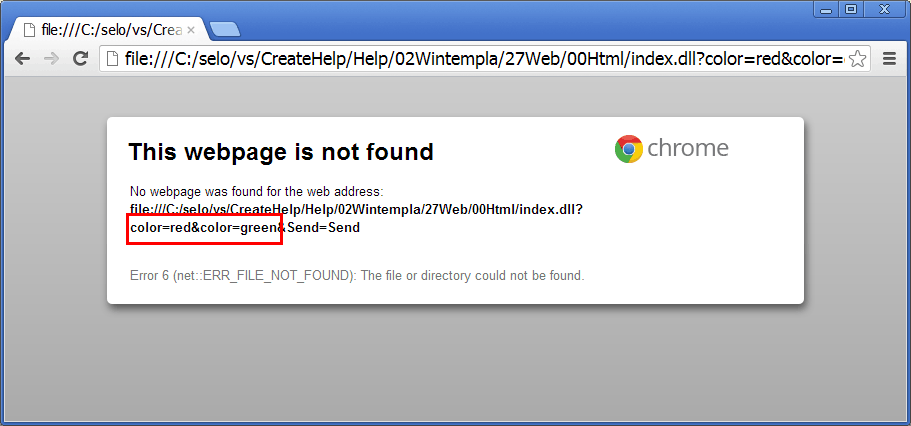

Create an html file called ListBox.htm to create test a list box in a web page. A list box may allow multiple selections using the ctrl key. The functionality is the same as a check box list. However, a list box in html does not display any check box.

ListBox

ListBoxE

ListBoxRequest

Hidden Values

They are hidden variables that can be used to control or save the state of the application. These variables are hidden to the user, and are accessible to the programmer. Note that the hidden values are text variables. If the user wants to store another data type, he must parse the values.

Problem 24

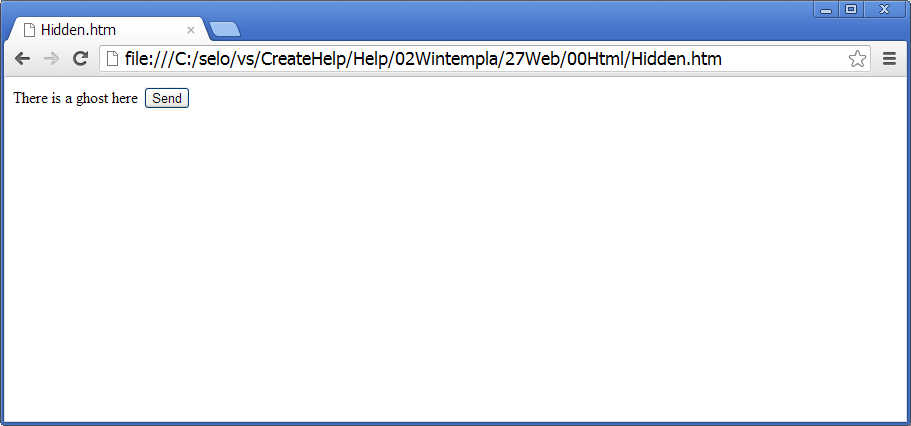

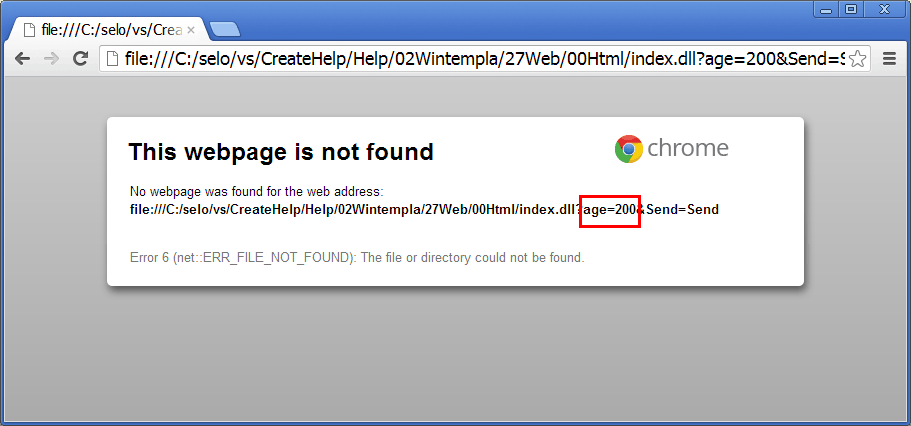

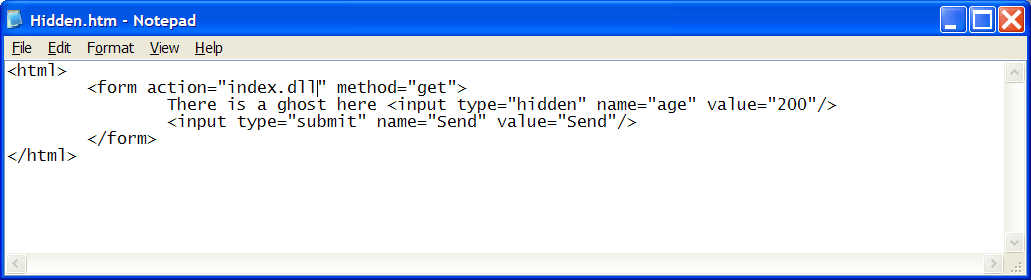

Create an html file called Hidden.htm to create test a hidden value in a web page.

Hidden

HiddenE

HiddenRequest

Web Server Program

All previous problems require a Web server. Additionally, all problems with input tags require a program in the web server to receive the query string, process it and return html to the client.

Color Cube

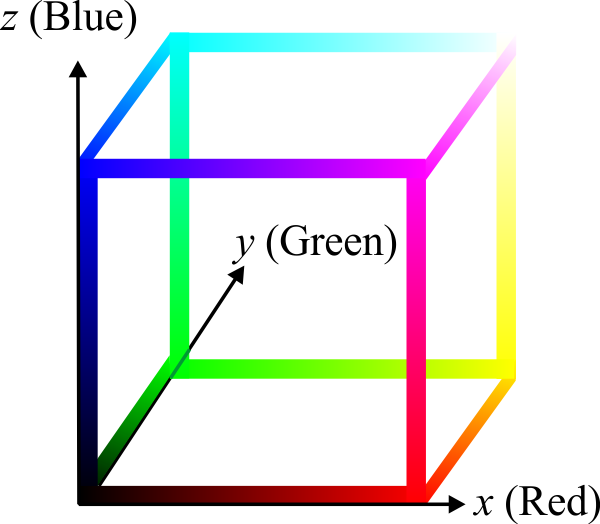

In the color cube, red goes on the x-axis direction from 0 to 255, green goes on the y-axis direction from 0 to 255, and blue goes on the z-axis direction as shown in the figure below.

ColorCube

Similar Colors

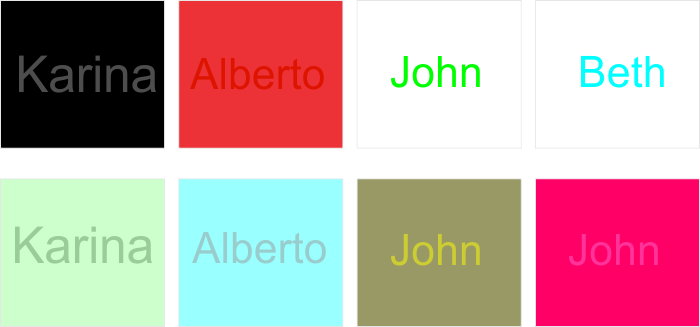

A color is similar to another one, if they are close in the color cube. If you choose similar colors to design a web site, the resulting web pages will have low contrast as shown below. A web page with low contrast is difficult to read.

LowContrast

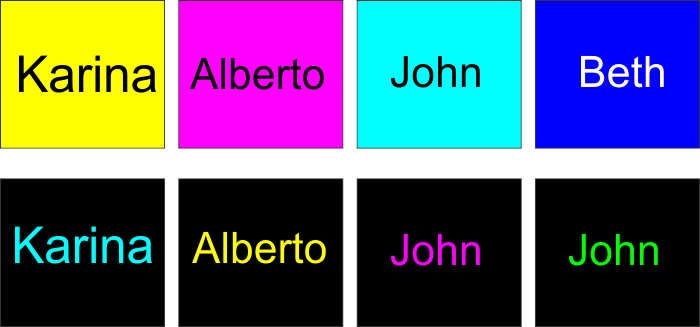

High Contrast

If you choose colors that are not similar in a web site, the resulting web pages will be easy to read but in some cases will not be attractive as shown in the figure below.

HighConstrast

Combining Colors

Black, gray and white combined with all colors. Reserve the color red only to display errors.

Problem 25

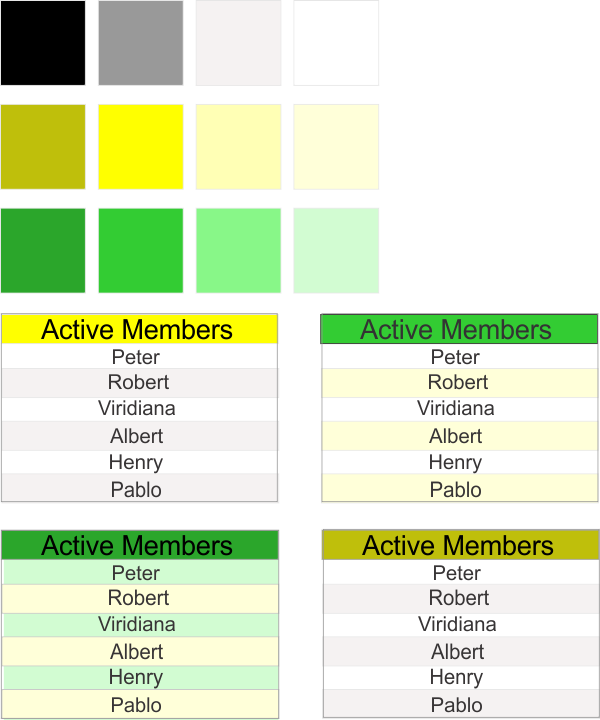

The figures below show a good example of a web color combination with its color palette using two colors: green and yellow. Explain why the color combination is good.

ColorPalette1

Problem 26

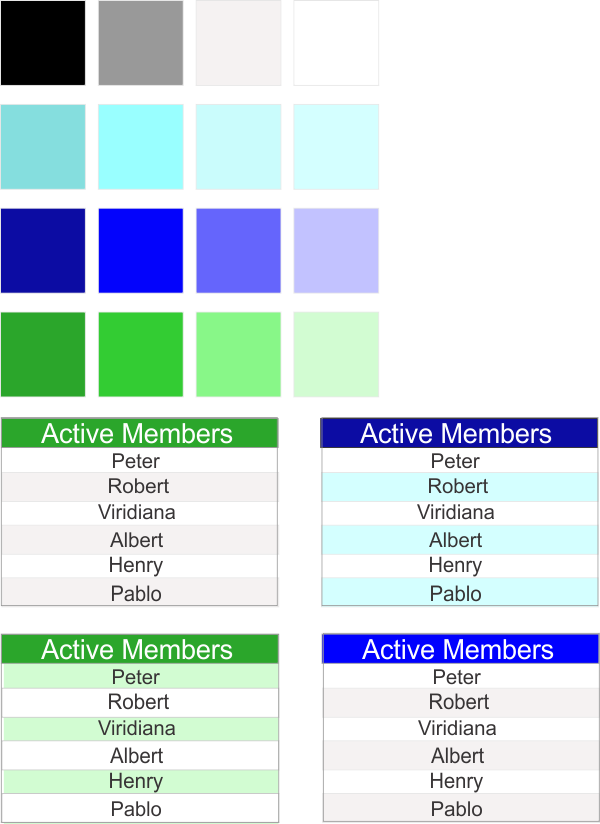

The figures below show a good example of a web color combination with its color palette using two colors: green and blue. Explain why the color combination is good.

ColorPalette2

Problem 27

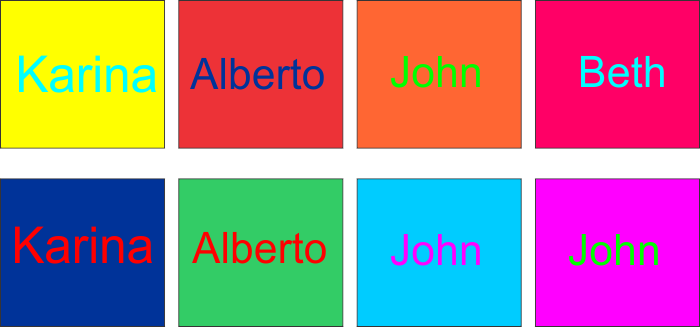

Avoid using to many colors in a web site. If you combine too many colors or colors that do not have a common basic color (such as red, green or blue) the combination will not be attractive as the ones shown below. For instance, it is possible to combine blue with cyan because cyan is composed of blue and green. Thus, it is also possible to combine purple with blue, because purple contains some blue. Explain why each next color below is a bad color combination.

BadColorCombination

Problem 28
Indicate if it is possible to combine (explain): (a) Yellow with green, (b) light green with dark gray, (c) Purple with green, (d) Pink with blue, (e) Green with red, (f) White with dark blue, (g) Dark blue with light green, (h) Dark gray with light yellow.

Problem 29
Indicate two color combinations with low contrast. Describe the colors using the words: dark or light, i.e., dark blue, light green.

Problem 30
Indicate two color combinations with high contrast. Describe the colors using the words: dark or light, i.e., dark blue, light green.

Problem 31
Design a color palette for a web site and create one web page with these colors. The web page should discuss about places to travel on winter for skiing. Describe your palette using the words: dark or light, i.e., dark blue, light green.

Problem 32
Indicate if a web application can replace completely a Desktop application, explain.

Problem 33
What are the advantages of a Web application?

Problem 34
What are the disadvantages of a Web application?

Problem 35
What are the main differences between a Web application and a Desktop application?

Tip
Important features when designing a Web site (html files) or a Web application (cgi-bin, php, aspx, jsp, ...):
  • It adjusts itself to different screen resolutions and sizes
  • It must properly work without crashing
  • Performance must be good even when most of its users are accessing the site
  • It must work in all (or at least in most common) Internet Browser
  • Space must be used wisely, without unnecessary images or blank spaces
  • HTML must be perfectly validated
  • The most frequent operations must be easy to locate and perform
These factors are more important than the HTML version used or the technology used.
Características importantes cuando se diseña un sitio Web (archivos de html) o una aplicación Web (cgi-bin, php, aspx, jsp, ...):
  • Se ajusta a diferentes resoluciones y tamaños de pantalla
  • Este debe de trabajar apropiadamente sin descomponerse
  • El desempeño debe ser bueno aún cuando la mayoría de sus usuarios estén accesando el sitio
  • Debe de trabajar en todos (o al menos los más comunes) Exploradores de la Internet
  • El espacio se debe usar inteligentemente, sin imágenes innecesarias o espacios vacíos
  • EL HTML debe ser perfectamente validado
  • Las acciones más frecuentes deben de ser fáciles de ubicar y ejecutar
Estos factores son más importantes que la versión de de HTML usada y la tecnología usada.

Problem 36

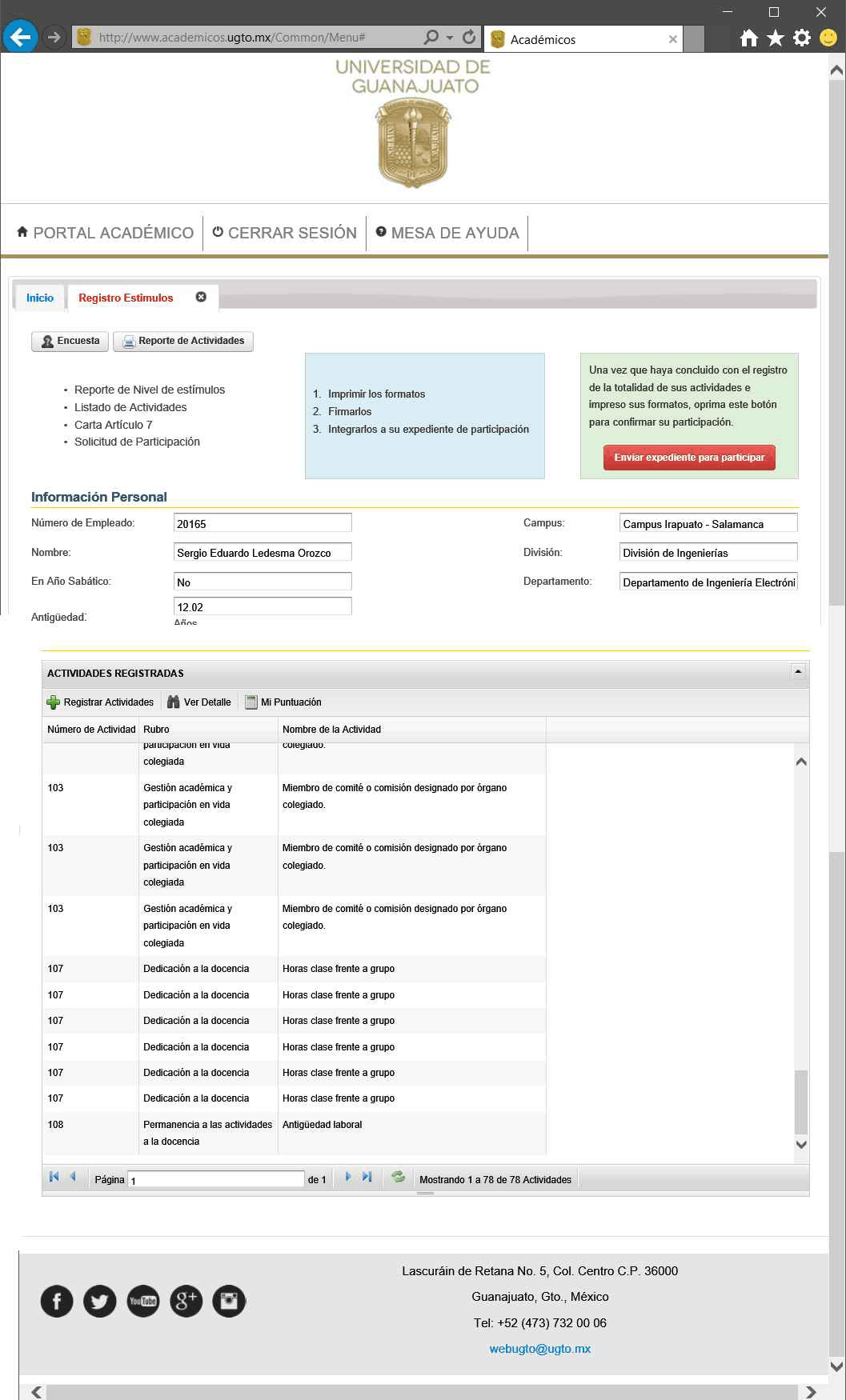

Discuss the web application displayed below. Provide five things that can be improved explaining why you would change them. The professor usually works in the area indicated by "Actividades Registradas".

EjemploUG

Web Score

Some important factors to evaluate a web site are:
  1. Legibility: font size, colors and layout (I can clearly see where I can click and where the information is)
  2. Size: the site can adapt to different display sizes
  3. Performance browser: scripts in the page do not take long to execute
  4. Compatibility: the web site can be used using the most common Web browsers
  5. Download performance: the content size of the site takes into consideration the capabilities of the connection and the capabilities of the web server
  6. Server performance: the web server capacity is appropriate for the number of users (some web technologies may require more hardware resources that other technologies while providing the same performance)
  7. SQL server performance: the database server has enough power to handle the SQL operations of the application
  8. Accessibility: the most common tasks are easy to find and execute

Problem 37
What is HTML 5? Should you use HTML 5 in your web applications? Explain taking into account the context.

Problem 38
Is HTML a programming language? Is it possible to create a Web application using only HTML?

Problem 39
What is the difference between the input tags (type=text, type=button, type=radio, type=checkbox, etc., including select and textarea) and the other tags?
