GDI+


Graphics Device Interface Plus

GDI+ is very similar to GDI. GDI+ was designed to produce high quality of the graphics at the cost of speed. One of the main differences is that you do not need to select a graphics object such as a pen or brush before using it.
GDI+ es muy semejante a GDI. GDI+ fue diseñada para producir gráficos de alta calidad al costo de velocidad. Una de las principales diferencias es que usted no necesita seleccionar un objeto de gráficos tal como una pluma o una brocha antes de usarlo.

Wintempla and GDI+

To use GDI+ in a Wintempla project you need to be sure that the proper header files are included. Open the stdafx.h file and be sure that WIN_GDI_PLUS_ON is defined as shown below.
Para usar GDI+ en un proyecto de Wintempla usted necesita asegurarse que los archivos de encabezado necesarios están incluidos. Abra el archivo stdafx.h y asegúrese que WIN_GDI_PLUS_ON esté definido como se muestra debajo.

stdafx.h
// stdafx.h : include file for standard system include files,
// or project specific include files that are used frequently, but
// are changed infrequently
//
#pragma once
/************************CONFIGURATION FILE ****************************/
//_________________________________________ GDI+
#define WIN_GDI_PLUS_ON
//_________________________________________ MIDI, Audio Card DAC's and ADC's (or GDI Game for timers)
//#define WIN_DAC_ADC_SUPPORT
...


Problem 1
Create a Window Application (using Wintempla) called MyQuality to test GDI+. After creating the project, open Wintempla, double click anywhere in the interface, and set the Paint event as shown below.
Cree una aplicación de Ventana (usando Wintempla) llamada MyQuality para probar GDI+. Después de crear el proyecto abra Wintempla, haga doble clic sobre cualquier parte de la interface y fije el evento de Paint como se muestra debajo.

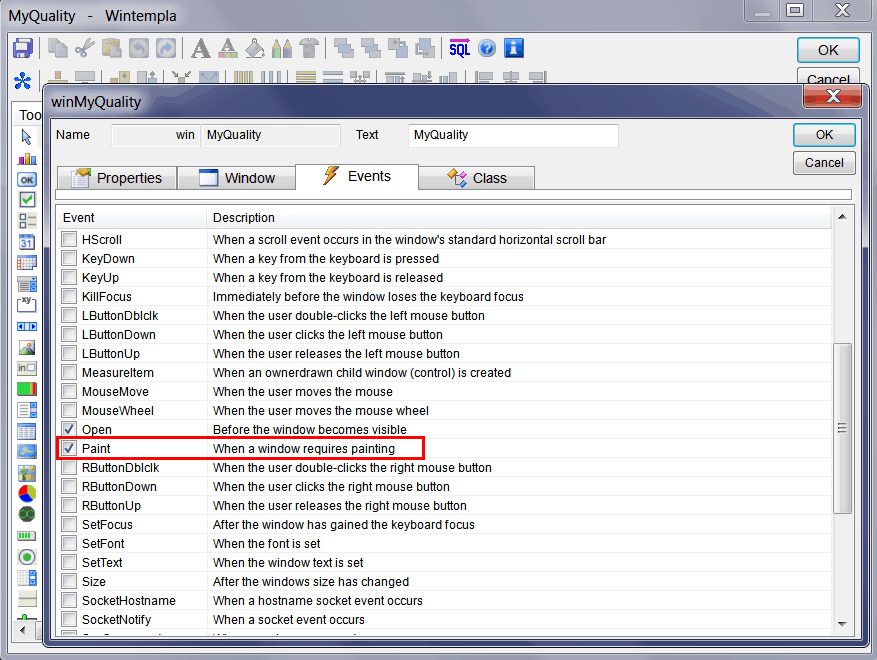

PaintEvent

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     //_______________________________ GDI is active
     CG::Gdi gdi(hWnd, true, false);
}


MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     //_______________________________ GDI+ is active
     CG::Gdi gdi(hWnd, true, true);
}


Problem 2

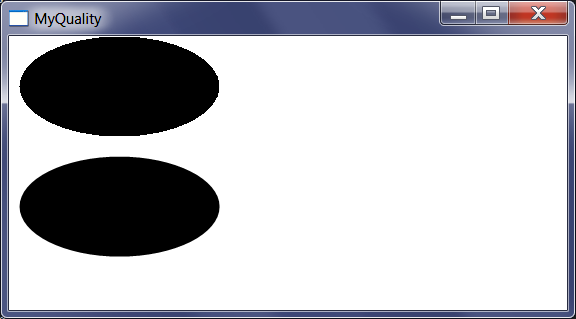

Modify the Window_Paint function of the MyQuality project to draw two ellipses: one using high speed, and the other one using high quality.
Modifique la función Window_Paint del proyecto MyQuality para dibujar dos elipses: una usando alta velocidad, y la otra usando alta calidad.

TwoEllipses

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     Gdiplus::SolidBrush brush(Gdiplus::Color(255, 0, 0, 0)); // Alpha, Red, Green, Blue

     //___________________________________________ High Speed
     gdi.Plus.SetSmoothingMode(Gdiplus::SmoothingModeHighSpeed);
     gdi.Plus.FillEllipse(&brush, 10, 0, 200, 100);

     //___________________________________________ High Quality
     gdi.Plus.SetSmoothingMode(Gdiplus::SmoothingModeHighQuality);
     gdi.Plus.FillEllipse(&brush, 10, 120, 200, 100);
}


Problem 3
Modify the Window_Paint function of the MyQuality project to use FillClosedCurve.
Modifique la función Window_Paint del proyecto MyQuality para usar FillClosedCurve.

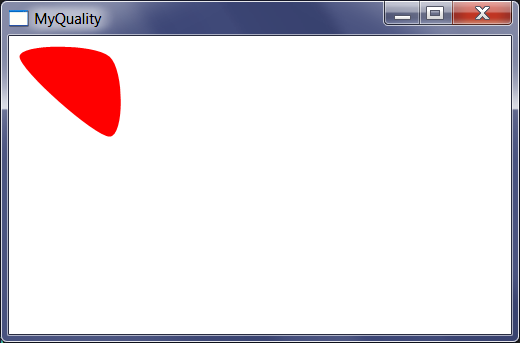

FillClosedCurve

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     Gdiplus::SolidBrush brush(Gdiplus::Color(255, 255, 0, 0)); // Alpha, Red, Green, Blue
     gdi.Plus.SetSmoothingMode(Gdiplus::SmoothingModeHighQuality);

     Gdiplus::PointF point[3];
     point[0].X = 10.0f;
     point[0].Y = 20.0f;
     //
     point[1].X = 100.0f;
     point[1].Y = 20.0f;
     //
     point[2].X = 100.0f;
     point[2].Y = 100.0f;
     //
     gdi.Plus.FillClosedCurve(&brush, point, 3);
}


Problem 4
Modify the Window_Paint function of the MyQuality project to show a jpg file.
Modifique la función Window_Paint del proyecto MyQuality para mostrar un archivo jpg .

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     Gdiplus::Image image(L"Grapes.jpg");
     gdi.Plus.DrawImage(&image, 60, 10);
}


Problem 5
Modify the Window_Paint function of the MyQuality project to draw: a line, a rectangle and a curve.
Modifique la función Window_Paint del proyecto MyQuality para dibujar: una línea, un rectángulo y una curva

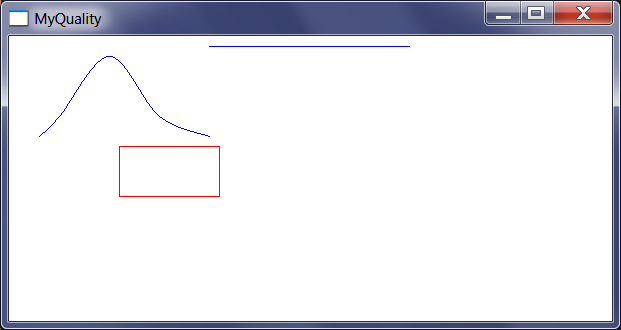

Basic

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     Gdiplus::Pen penBlue(Gdiplus::Color(255, 0, 0, 255));
     Gdiplus::Pen penRed(Gdiplus::Color(255, 255, 0, 0));

     //_____________________________________________________ Line
     gdi.Plus.DrawLine(&penBlue, 200, 10, 400, 10);
     //_____________________________________________________ Rectangle
     gdi.Plus.DrawRectangle(&penRed, 110, 110, 100, 50);
     //_____________________________________________________ Curve
     Gdiplus::Point points[] =
     {
          Gdiplus::Point(30, 100),
          Gdiplus::Point(50, 80),
          Gdiplus::Point(100, 20),
          Gdiplus::Point(150, 80),
          Gdiplus::Point(200, 100)
     };
     gdi.Plus.DrawCurve(&penBlue, points, 5);
}


Problem 6
Modify the Window_Paint function of the MyQuality project to draw two bezier curves.
Modifique la función Window_Paint del proyecto MyQuality para dibujar dos curvas bezier.

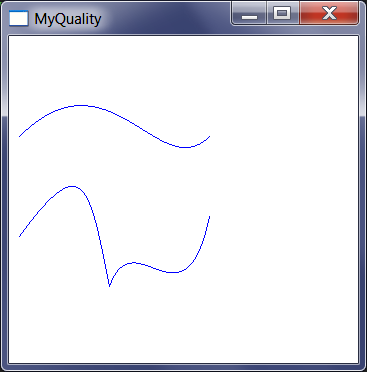

Bezier

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     Gdiplus::Pen pen(Gdiplus::Color(255, 0, 0, 255));

     //_____________________________________________ One Bezier
     Gdiplus::Point p1(10, 100); // start point
     Gdiplus::Point c1(100, 10); // first control point
     Gdiplus::Point c2(150, 150); // second control point
     Gdiplus::Point p2(200, 100); // end point
     gdi.Plus.DrawBezier(&pen, p1, c1, c2, p2);
     //_____________________________________________ Two Beziers
     Gdiplus::Point p[] =
     {
          //______________ 1
          Gdiplus::Point(10, 200), // start point of first spline
          Gdiplus::Point(75, 110), // first control point of first spline
          Gdiplus::Point(80, 150), // second control point of first spline
          Gdiplus::Point(100, 250), // end point of first spline and
          //______________ 2
          Gdiplus::Point(125, 180), // first control point of second spline
          Gdiplus::Point(175, 300), // second control point of second spline
          Gdiplus::Point(200, 180) // end point of second spline
     };
     gdi.Plus.DrawBeziers(&pen, p, 7);
}


Problem 7
Modify the Window_Paint function of the MyQuality project to draw text.
Modifique la función Window_Paint del proyecto MyQuality para dibujar texto.

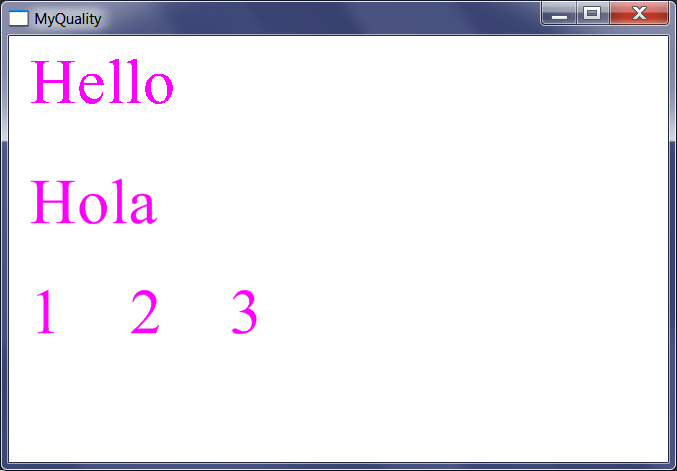

Text

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     Gdiplus::Pen pen(Gdiplus::Color(255, 0, 0, 255));
     Gdiplus::SolidBrush solidBrush(Gdiplus::Color(255, 255, 0, 255));
     Gdiplus::FontFamily fontFamily(L"Times New Roman");
     Gdiplus::Font font(&fontFamily, 64, Gdiplus::FontStyleRegular, Gdiplus::UnitPixel);
     //__________________________________________ Regular
     gdi.Plus.SetTextRenderingHint(Gdiplus::TextRenderingHintSingleBitPerPixel);
     gdi.Plus.DrawString(L"Hello", -1, &font, Gdiplus::PointF(10.0f, 10.0f), &solidBrush);
     //__________________________________________ AntiAlias
     gdi.Plus.SetTextRenderingHint(Gdiplus::TextRenderingHintAntiAlias);
     gdi.Plus.DrawString(L"Hola", -1, &font, Gdiplus::PointF(10.0f, 130.0f), &solidBrush);
     //__________________________________________ Tabs
     Gdiplus::RectF rectF(10.0f, 240.0f, 650.0f, 600.0f);
     Gdiplus::StringFormat stringFormat;
     Gdiplus::REAL tabs[] = { 100.0f, 100.0f, 100.0f };
     stringFormat.SetTabStops(0.0f, 3, tabs);
     gdi.Plus.DrawString(L"1\t2\t3", -1, &font, rectF, &stringFormat, &solidBrush);
}


Problem 8
Modify the Window_Paint function of the MyQuality project to draw rotated text.
Modifique la función Window_Paint del proyecto MyQuality para dibujar texto rotado.

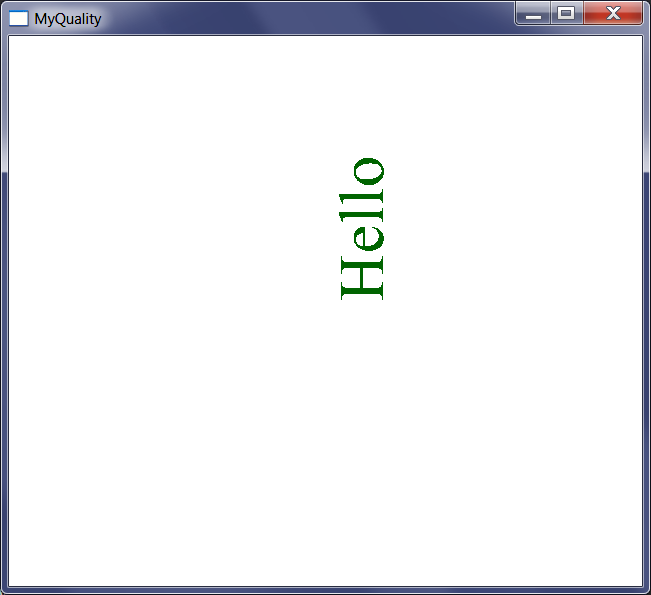

Rotated

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     Gdiplus::FontFamily fontFamily(L"Times New Roman");
     Gdiplus::Font font(&fontFamily, 64, Gdiplus::FontStyleRegular, Gdiplus::UnitPixel);
     Gdiplus::SolidBrush brush(Gdiplus::Color(255, 0, 100, 0));
     Gdiplus::REAL x = width / 2.0f;
     Gdiplus::REAL y = height / 2.0f;
     Gdiplus::PointF pointF(0.0f, 0.0f);
     gdi.Plus.TranslateTransform(x, y);
     gdi.Plus.RotateTransform(270);
     gdi.Plus.DrawString(L"Hello", -1, &font, pointF, &brush);
     gdi.Plus.ResetTransform();
}


Problem 9

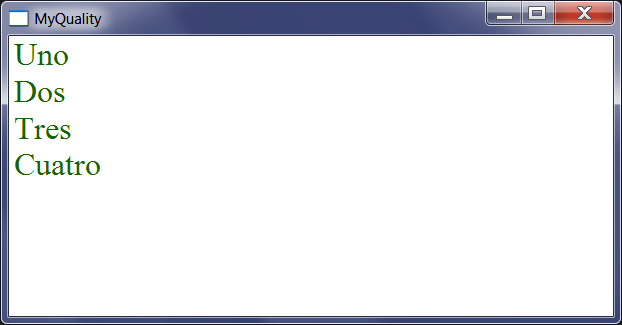

Modify the Window_Paint function of the MyQuality project to test the font height.
Modifique la función Window_Paint del proyecto MyQuality para probar la altura de la fuente.

FontHeight

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     Gdiplus::FontFamily fontFamily(L"Times New Roman");
     Gdiplus::Font font(&fontFamily, 32, Gdiplus::FontStyleRegular, Gdiplus::UnitPixel);
     Gdiplus::SolidBrush brush(Gdiplus::Color(255, 20, 100, 0));
     Gdiplus::PointF position(0.0f, 0.0f);
     Gdiplus::REAL deltaY = font.GetHeight(0.0f);

     gdi.Plus.DrawString(L"Uno", -1, &font, position, &brush);
     position.Y += deltaY;
     //
     gdi.Plus.DrawString(L"Dos", -1, &font, position, &brush);
     position.Y += deltaY;
     //
     gdi.Plus.DrawString(L"Tres", -1, &font, position, &brush);
     position.Y += deltaY;
     //
     gdi.Plus.DrawString(L"Cuatro", -1, &font, position, &brush);
     position.Y += deltaY;
}


Problem 10

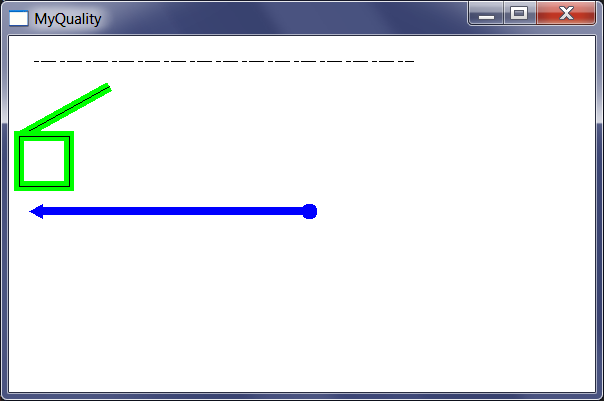

Modify the Window_Paint function of the MyQuality project to test the types of pens.
Modifique la función Window_Paint del proyecto MyQuality para probar los tipos de plumas.

PenTypes

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     Gdiplus::Pen blackPen(Gdiplus::Color(255, 0, 0, 0), 1);
     Gdiplus::Pen greenPen(Gdiplus::Color(255, 0, 255, 0), 10);
     greenPen.SetAlignment(Gdiplus::PenAlignmentCenter);
     //_____________________________________________________ Line
     gdi.Plus.DrawLine(&greenPen, 10, 100, 100, 50);
     gdi.Plus.DrawLine(&blackPen, 10, 100, 100, 50);
     //_____________________________________________________ Line
     gdi.Plus.DrawRectangle(&greenPen, 10, 100, 50, 50);
     gdi.Plus.DrawRectangle(&blackPen, 10, 100, 50, 50);
     //____________________________________________________ Pen Caps
     Gdiplus::Pen penCaps(Gdiplus::Color(255, 0, 0, 255), 8);
     penCaps.SetStartCap(Gdiplus::LineCapArrowAnchor);
     penCaps.SetEndCap(Gdiplus::LineCapRoundAnchor);
     gdi.Plus.DrawLine(&penCaps, 20, 175, 300, 175);
     //____________________________________________________ Pen Dash
     Gdiplus::REAL dashValues[4] = { 5, 2, 15, 4 };
     blackPen.SetDashPattern(dashValues, 4);
     gdi.Plus.DrawLine(&blackPen, Gdiplus::Point(25, 25), Gdiplus::Point(405, 25));
}


Problem 11
Modify the Window_Paint function of the MyQuality project to test paths (a path is composed of lines, curves, etc.)
Modifique la función Window_Paint del proyecto MyQuality para probar los paths (un path está compuesto de líneas, curvas, etc.)

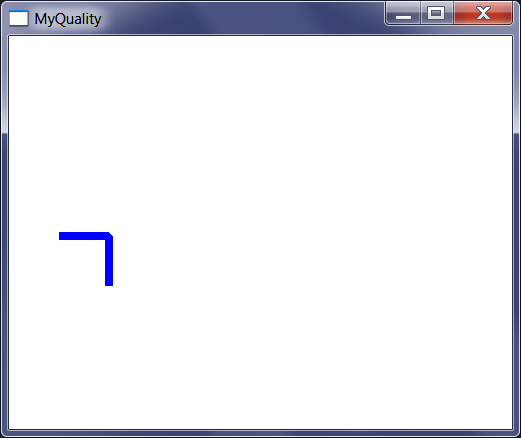

Paths

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     Gdiplus::GraphicsPath path;
     Gdiplus::Pen penJoin(Gdiplus::Color(255, 0, 0, 255), 8);
     path.StartFigure();
     path.AddLine(Gdiplus::Point(50, 200), Gdiplus::Point(100, 200));
     path.AddLine(Gdiplus::Point(100, 200), Gdiplus::Point(100, 250));
     penJoin.SetLineJoin(Gdiplus::LineJoinBevel);
     gdi.Plus.DrawPath(&penJoin, &path);
}


Problem 12
Modify the Window_Paint function of the MyQuality project to test brushs. You will need to have the file Texture.jpg in your project folder.
Modifique la función Window_Paint del proyecto MyQuality para probar los brochas. Usted necesitara tener le archivo Texture.jpg en la carpeta de su proyecto.

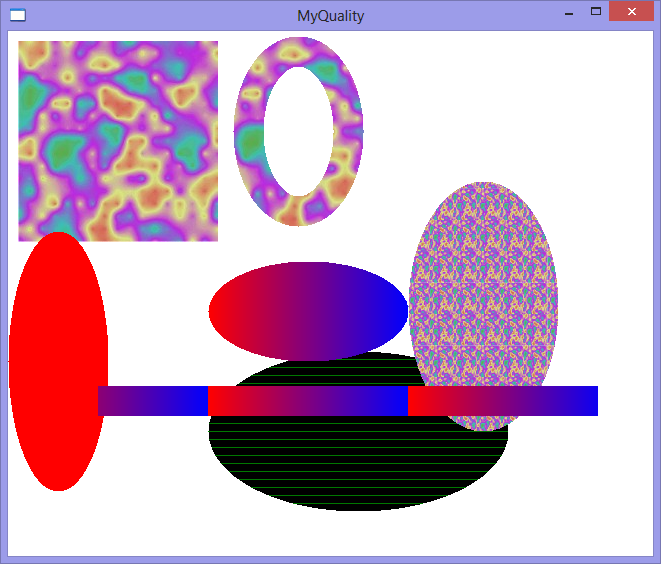

Brushs

MyQuality.cpp
...
void MyQuality::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, true);
     //__________________________________________________ Texture Brush
     Gdiplus::Image image(L"Texture.jpg");
     Gdiplus::TextureBrush textureBrush(&image);
     Gdiplus::Pen texturedPen(&textureBrush, 30);
     gdi.Plus.DrawImage(&image, 10, 10, image.GetWidth(), image.GetHeight());
     gdi.Plus.DrawEllipse(&texturedPen, 240, 20, 100, 160);
     //__________________________________________________ Solid Brush
     Gdiplus::SolidBrush solidBrush(Gdiplus::Color(255, 255, 0, 0));
     gdi.Plus.FillEllipse(&solidBrush, 0, 200, 100, 260);
     //__________________________________________________ Solid Hatch
     Gdiplus::HatchBrush hBrush(Gdiplus::HatchStyleHorizontal,
          Gdiplus::Color(255, 0, 120, 0),
          Gdiplus::Color(255, 0, 0, 0)
          );

     gdi.Plus.FillEllipse(&hBrush, 200, 320, 300, 160);
     //__________________________________________________ Solid Image Brush
     textureBrush.SetTransform(&Gdiplus::Matrix(75.0 / 640.0, 0.0f, 0.0f, 75.0 / 480.0, 0.0f, 0.0f));
     gdi.Plus.FillEllipse(&textureBrush, Gdiplus::Rect(400, 150, 150, 250));
     //_________________________________________________ Gradient Brush
     Gdiplus::LinearGradientBrush linGrBrush(
          Gdiplus::Point(0, 10),
          Gdiplus::Point(200, 10),
          Gdiplus::Color(255, 255, 0, 0), // Red
          Gdiplus::Color(255, 0, 0, 255) // Blue
          );

     Gdiplus::Pen pen(&linGrBrush);
     gdi.Plus.FillEllipse(&linGrBrush, 200, 230, 200, 100);
     gdi.Plus.FillRectangle(&linGrBrush, 90, 355, 500, 30);
}
