Gradient Fill

A gradient fill is used to fill a rectangular (or triangular) area using two colors. The gradient fill provides a smooth transition from one color to another one.

Un relleno de gradiente es usado para llenar una área rectangular (o triangular) usando dos colores. El relleno de gradiente proporciona una transición suave de un color a otro.

Problem 1

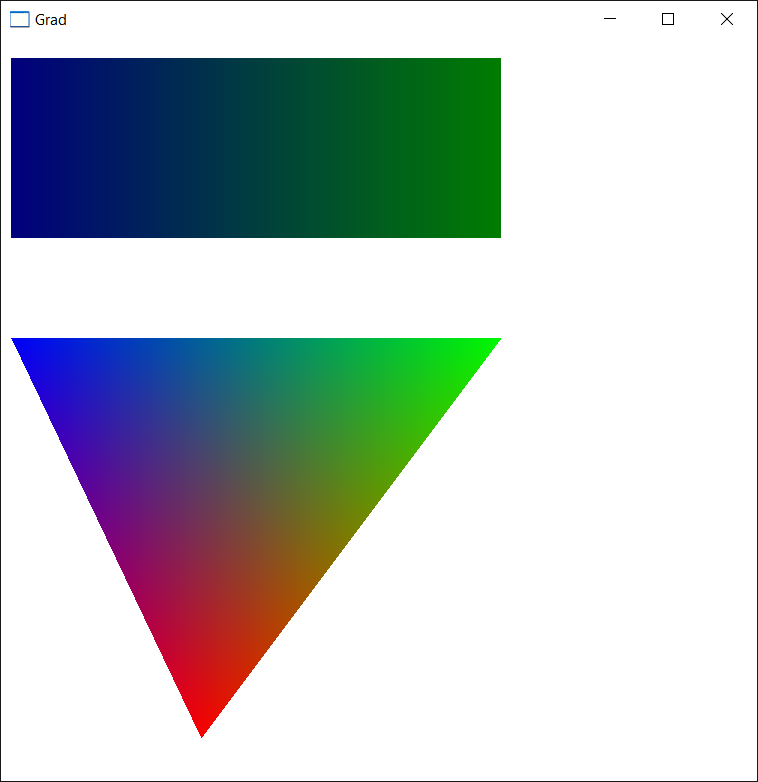

Create a Window Application using Wintempla called Grad to test gradient fills in Microsoft GDI. Do not forget to check the Paint event (Window_Paint).

Cree una aplicación de Ventana usando Wintempla llamada Grad para probar los rellenos de gradiente en Microsoft GDI. No se olvide de seleccionar el evento Paint (Window_Paint).

Grap.cpp

...
void Grad::Window_Open(Win::Event& e)
{
}

void Grad::Window_Paint(Win::Event& e)
{
     CG::Gdi gdi(hWnd, true, false);
     //________________________________________________________ Rectangle
     GRADIENT_RECT rectangle[1];
     rectangle[0].UpperLeft = 0;
     rectangle[0].LowerRight = 1;
     TRIVERTEX vertexRect[2];
     vertexRect[0].x = 10;
     vertexRect[0].y = 20;
     vertexRect[0].Alpha = 0;
     vertexRect[0].Red = 0;
     vertexRect[0].Green = 0;
     vertexRect[0].Blue = 32000;
     //
     vertexRect[1].x = 500;
     vertexRect[1].y = 200;
     vertexRect[1].Alpha = 0;
     vertexRect[1].Red = 0;
     vertexRect[1].Green = 32000;
     vertexRect[1].Blue = 0;
     //
     gdi.GradientFillRectH(vertexRect, 2, rectangle, 1);
     //________________________________________________________ Triangle
     GRADIENT_TRIANGLE triangle[1];
     triangle[0].Vertex1 = 0;
     triangle[0].Vertex2 = 1;
     triangle[0].Vertex3 = 2;
     TRIVERTEX vertexTrian[3];
     vertexTrian[0].x = 10;
     vertexTrian[0].y = 300;
     vertexTrian[0].Alpha = 0;
     vertexTrian[0].Red = 0;
     vertexTrian[0].Green = 0;
     vertexTrian[0].Blue = 64000;
     //
     vertexTrian[1].x = 500;
     vertexTrian[1].y = 300;
     vertexTrian[1].Alpha = 0;
     vertexTrian[1].Red = 0;
     vertexTrian[1].Green = 64000;
     vertexTrian[1].Blue = 0;
     //
     vertexTrian[2].x = 200;
     vertexTrian[2].y = 700;
     vertexTrian[2].Alpha = 0;
     vertexTrian[2].Red = 64000;
     vertexTrian[2].Green = 0;
     vertexTrian[2].Blue = 0;
     //
     gdi.GradientFillTriangle(vertexTrian, 3, triangle, 1);
}

Problem 2

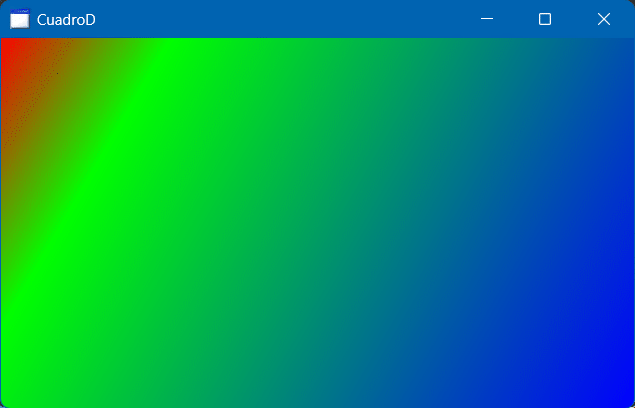

Create a Wintempla Window application called CuadroD to draw a linear gradient using Direct2D.

Cree una aplicación de ventana de Wintempla llamada CuadroD para dibujar un gradiente usando Direct2D.

CuadroD .h

#pragma once //______________________________________ CuadroD.h
#include "Resource.h"
class CuadroD: public Win::Window
{
public:
     CuadroD()
     {
     }
     ~CuadroD()
     {
     }
     Direct::Graphics graphics;
     Direct::LinearGradientBrush brush;
     Direct::GradientStopCollection gsc;
     . . .
};

CuadroD .cpp

. . .
void CuadroD::Window_Open(Win::Event& e)
{
     const D2D1_COLOR_F red = D2D1::ColorF(1.0f, 0.0f, 0.0f);
     const D2D1_COLOR_F green = D2D1::ColorF(0.0f, 1.0f, 0.0f);
     const D2D1_COLOR_F blue = D2D1::ColorF(0.0f, 0.0f, 1.0f);
     const D2D1_GRADIENT_STOP gradientStops[] =
     {
          { 0.0f, red},
          { 0.2f, green},
          { 1.0f, blue}
     };
     gsc.Create(graphics, gradientStops, _countof(gradientStops));
}

void CuadroD::Window_Paint(Win::Event& e)
{
     if (graphics.BeginDraw(hWnd, width, height, 1.0f, 1.0f, 1.0f, 0.0f) == false) return; // red, green, blue, alpha
     graphics.SetTransform(D2D1::Matrix3x2F::Identity());
     const D2D1_SIZE_F size = graphics.GetSize();
     const D2D1_RECT_F rect = D2D1::RectF(0, 0, size.width, size.height);
     graphics.FillRectangle(rect, brush);
     graphics.EndDraw(true);
}

void CuadroD::Window_Size(Win::Event& e)
{
     graphics.Resize(hWnd, width, height);
     const D2D1_SIZE_F size = graphics.GetSize();
     brush.Create(graphics, 0.0f, 0.0f, size.width, size.height, gsc);
}

Problem 3

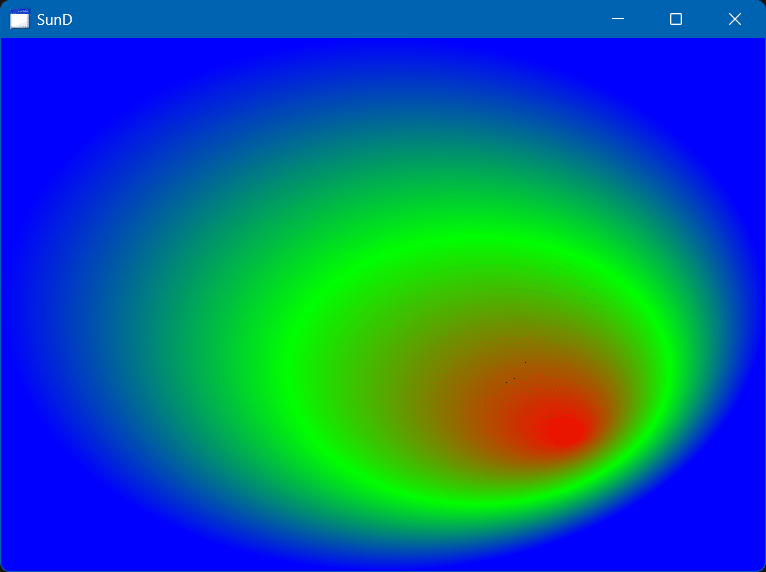

Create a Wintempla Window application called SunD to draw a radial gradient using Direct2D.

Cree una aplicación de ventana de Wintempla llamada SunD para dibujar un gradiente usando Direct2D.

SunD.h

#pragma once //______________________________________ SunD.h
#include "Resource.h"
class SunD: public Win::Window
{
public:
     SunD()
     {
     }
     ~SunD()
     {
     }
     Direct::Graphics graphics;
     Direct::RadialGradientBrush brush;
     Direct::GradientStopCollection gsc;
     . . .
};

SunD.cpp

. . .
void SunD::Window_Open(Win::Event& e)
{
     const D2D1_COLOR_F red = D2D1::ColorF(1.0f, 0.0f, 0.0f);
     const D2D1_COLOR_F green = D2D1::ColorF(0.0f, 1.0f, 0.0f);
     const D2D1_COLOR_F blue = D2D1::ColorF(0.0f, 0.0f, 1.0f);
     const D2D1_GRADIENT_STOP gradientStops[] =
     {
          { 0.0f, red},
          { 0.5f, green},
          { 1.0f, blue}
     };
     gsc.Create(graphics, gradientStops, _countof(gradientStops));
}

void SunD::Window_Paint(Win::Event& e)
{
     if (graphics.BeginDraw(hWnd, width, height, 1.0f, 1.0f, 1.0f, 0.0f) == false) return; // red, green, blue, alpha
     graphics.SetTransform(D2D1::Matrix3x2F::Identity());
     const D2D1_SIZE_F size = graphics.GetSize();
     const D2D1_RECT_F rect = D2D1::RectF(0, 0, size.width, size.height);
     graphics.FillRectangle(rect, brush);
     graphics.EndDraw(true);
}

void SunD::Window_Size(Win::Event& e)
{
     graphics.Resize(hWnd, width, height);
     const D2D1_SIZE_F size = graphics.GetSize();
     const D2D1_POINT_2F center = D2D1::Point2F(size.width / 2.0f, size.height / 2.0f);
     const D2D1_POINT_2F offset = D2D1::Point2F(size.width * 0.25f, size.height * 0.25f);
     const float radiusX = size.width / 2.0f;
     const float radiusY = size.height / 2.0f;
     brush.Create(graphics, center.x, center.y, offset.x, offset.y, radiusX, radiusY, gsc);
}

Problem 4

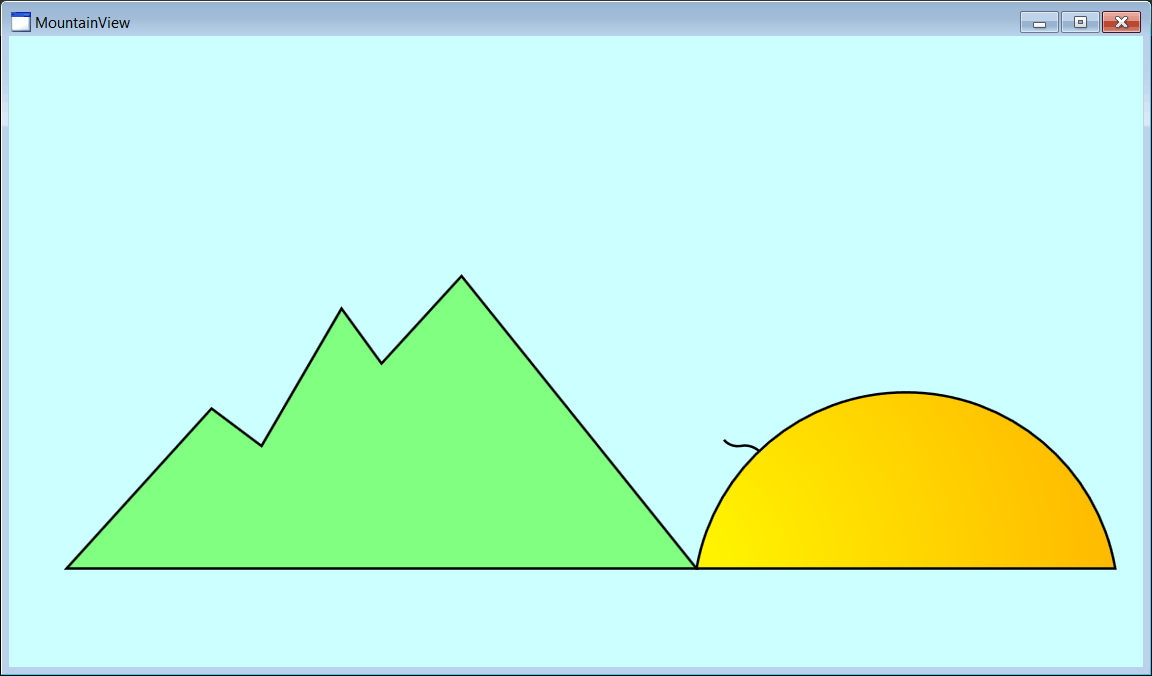

Create a Wintempla Window application called MountainView to draw some objects using paths and beziers in Direct2D (observe that this project is not a DirectX application).

Cree una aplicación de ventana de Wintempla llamada MountainView para dibujar algunos objetos usando paths y beziers usando Direct2D (observe que este proyecto no es una aplicación de DirectX).

MountainView.h

#pragma once //______________________________________ MountainView.h
#include "Resource.h"
class MountainView: public Win::Window
{
public:
     MountainView()
     {
     }
     ~MountainView()
     {
     }
     Direct::Graphics graphics;
     Direct::SolidBrush brushGreen;
     Direct::SolidBrush brushBlack;
     Direct::RadialGradientBrush gradientBrush;
     Direct::GradientStopCollection gradStopCollection;
     Direct::PathGeometry mountain;
     Direct::PathGeometry sun;
     . . .
};

MountainView.cpp

. . .
int APIENTRY wWinMain(HINSTANCE hInstance, HINSTANCE , LPTSTR cmdLine, int cmdShow){
     MountainView app;
     app.CreateMainWindow(L"MountainView", cmdShow, IDI_MountainView, NULL, (HBRUSH)::GetStockObject(NULL_BRUSH), hInstance);
     return app.MessageLoop(IDC_MountainView);
}

void MountainView::Window_Open(Win::Event& e)
{
     //______________________________________________________ 1. Solid brush
     brushGreen.Create(graphics, 0.5f, 1.0f, 0.5f, 1.0);
     brushBlack.Create(graphics, 0.0f, 0.0f, 0.0f, 1.0);
     //______________________________________________________ 2. Gradient brush
     D2D1_GRADIENT_STOP gradientStop[2];
     gradientStop[0].color = D2D1::ColorF(D2D1::ColorF::Yellow, 1);
     gradientStop[0].position = 0.0f;
     gradientStop[1].color = D2D1::ColorF(D2D1::ColorF::Orange, 1);
     gradientStop[1].position = 1.0f;
     gradStopCollection.Create(graphics, gradientStop, 2);
     gradientBrush.Create(graphics, 500.0f, 426.0f, 0.0f, 0.0f, 500.0f, 426.0f, gradStopCollection);
     //______________________________________________________ 3. Create mountain
     mountain.Open(graphics);
     mountain.SetFillMode(D2D1_FILL_MODE_WINDING);
     mountain.BeginFigure(D2D1::Point2F(550, 426), D2D1_FIGURE_BEGIN_FILLED);
     D2D1_POINT_2F points[] ={D2D1::Point2F(362, 192), D2D1::Point2F(298, 262), D2D1::Point2F(266     , 218),
          D2D1::Point2F(202     , 328), D2D1::Point2F(162     , 298), D2D1::Point2F(46, 426), D2D1::Point2F(550, 426)};
     mountain.AddLines(points, ARRAYSIZE(points));
     mountain.EndFigure(D2D1_FIGURE_END_CLOSED);
     mountain.Close();
     //______________________________________________________ 3. Create sun
     sun.Open(graphics);
     sun.SetFillMode(D2D1_FILL_MODE_WINDING);
     sun.BeginFigure(D2D1::Point2F(550, 426), D2D1_FIGURE_BEGIN_FILLED);
     sun.AddArc(D2D1::ArcSegment(
          D2D1::Point2F(885, 426), // end point
          D2D1::SizeF(170, 170),
          0.0f, // rotation angle
          D2D1_SWEEP_DIRECTION_CLOCKWISE,
          D2D1_ARC_SIZE_SMALL
     ));
     sun.EndFigure(D2D1_FIGURE_END_CLOSED);
     //
     sun.BeginFigure(D2D1::Point2F(600, 332), D2D1_FIGURE_BEGIN_HOLLOW);
     sun.AddBezier(D2D1::BezierSegment(D2D1::Point2F(600, 332), D2D1::Point2F(594, 326), D2D1::Point2F(585, 328)));
     sun.AddBezier(D2D1::BezierSegment(D2D1::Point2F(576, 329), D2D1::Point2F(572, 323), D2D1::Point2F(572, 323)));
     sun.EndFigure(D2D1_FIGURE_END_OPEN);
     //
     sun.Close();
}

void MountainView::Window_Paint(Win::Event& e)
{
     if (graphics.BeginDraw(hWnd, width, height, 0.8f, 1.0f, 1.0f, 1.0f) == false) return;
     graphics.SetTransform(D2D1::Matrix3x2F::Identity());
     graphics.FillGeometry(mountain, brushGreen);
     graphics.DrawGeometry(mountain, brushBlack, 2.0f);
     graphics.FillGeometry(sun, gradientBrush);
     graphics.DrawGeometry(sun, brushBlack, 2.0f);
     graphics.EndDraw(true);
}

void MountainView::Window_KeyDown(Win::Event& e)
{
     switch (e.wParam)
     {
     case VK_ESCAPE:
          ::DestroyWindow(hWnd);
          break;
     }
}
