Signal Classification using Complex Domain ANN.


Tip
This section will solve the same problem using a regular ANN and a complex domain ANN. A training set and a validation set are built to use for both ANNs. For the first case, the training set is transform using the FFT, however, as the regular ANN cannot accept complex domain inputs, one neuron will accept the real part of one complex number, and another neuron will accept the imaginary part of the same complex number. On the other hand, the complex domain ANN can accept directly a complex domain number. Generally speaking, the complex domain ANN requires half the number of neurons than a regular ANN. Note however, that even though the complex domain ANN requires also half the number of weights than a regular ANN, each weight has a real part and an imaginary part.

Problem 1
Create a Neural Lab project called ComplexClass to classify signals in the time domain and in the frequency domain (you may select the Classification option for the network application). Build an appropriate training set for the classification of four noisy signals: the sine, the saw tooth, the triangular, and the squared. These signals will be contaminated with 20% of noise. The input training set must include 400 waves of each class and 500 additional cases for the sinc function for rejection. Use 2100 training cases and 64 inputs. Each training case has a wave with a random phase. Note that the training set target has only four columns. (You may use code from the problem Neural Lab > Classification > Noisy Classification )

ComplexClass\BuildTrainSet.lab
int numCases = 400;
int numInputs = 64;
double deltaInput = 6.28/numInputs;
int i;
int j;
double phase = 0.0;
//________________________________ Class 1: sine
Matrix inputSine;
...
}
//________________________________ Class 2: sawtooth
Matrix inputSaw;
...
}
//________________________________ Class 3: triangular
Matrix inputTria;
...
//________________________________ Class 4: squared
Matrix inputSqu;
...
//________________________________ Reject: sinc
Matrix inputSinc;
...
//_______________________________ Create the inputSet
Matrix inputSet;
...
Matrix noise;
noise.CreateRandom(inputSet.GetRowCount(), inputSet.GetColCount(), -1.0, 1.0);
trainSetInput = 0.8*inputSet + 0.2*noise;
inputSet.Save();
//_______________________________ Create the training set target
Matrix trainSetTarget;
...
trainSetTarget.Save();

//_____________________________ Save the training set input for the complex domain network
ComplexMatrix trainSetInputCx = fft(inputSet);
//Delete half of the transformed data
int numCols = trainSetInputCx.GetColCount();
Vector index;
index.CreateSeries(numCols/2, numCols-1, numCols/2);
trainSetInputCx.DeleteCols(index);
trainSetInputCx.Save();
//_____________________________ Save the training set input for the real domain network
Matrix trainSetInput = realfft(inputSet);
trainSetInput.Save();

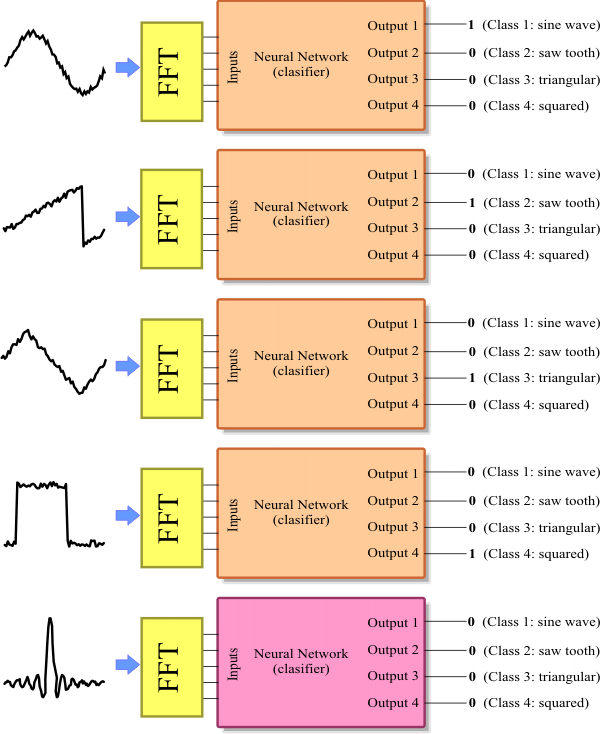

Classification

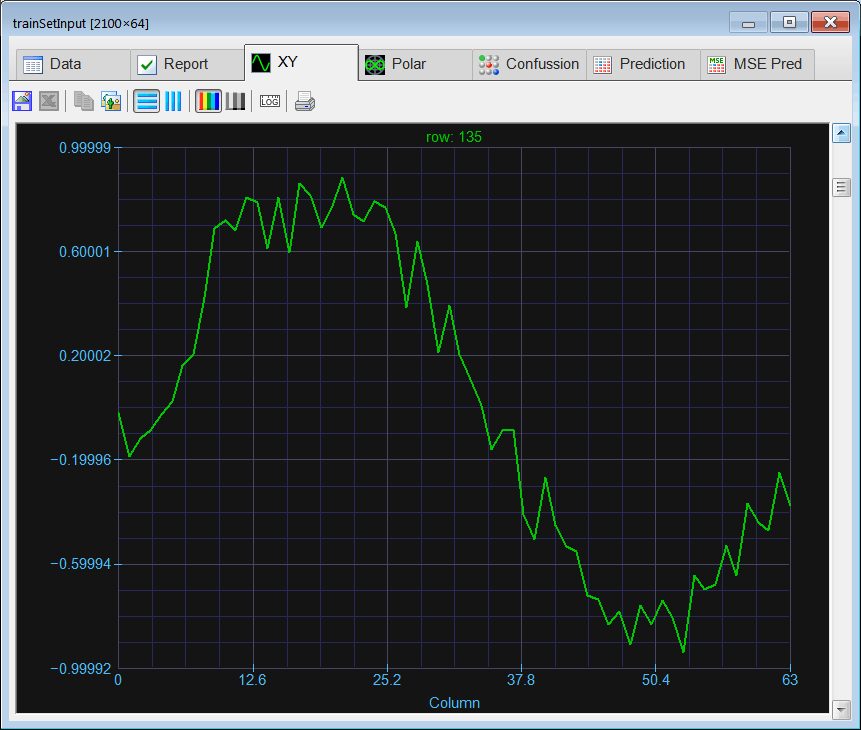

inputSet1

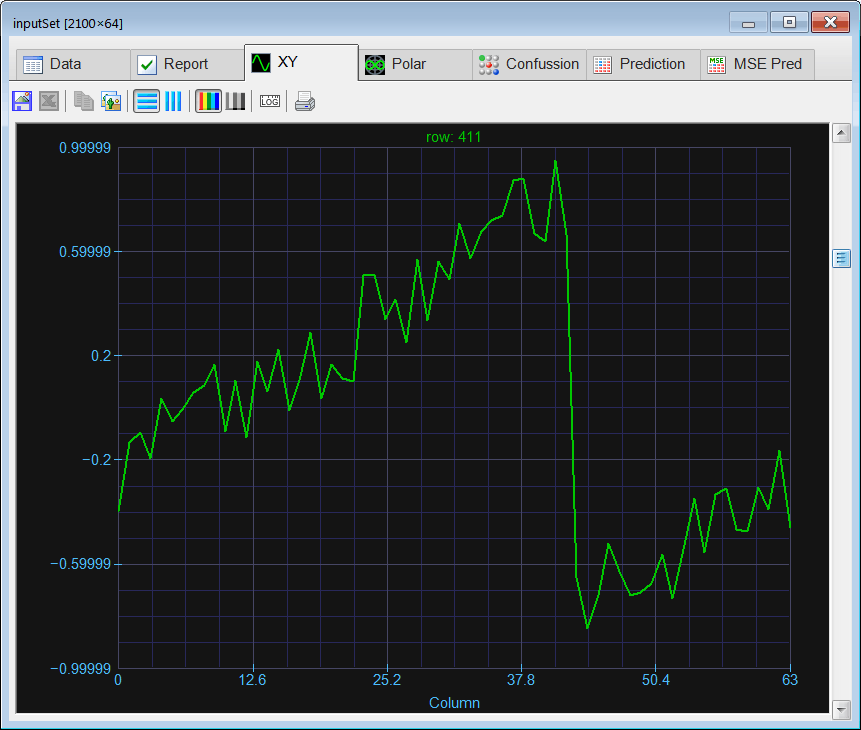

inputSet2

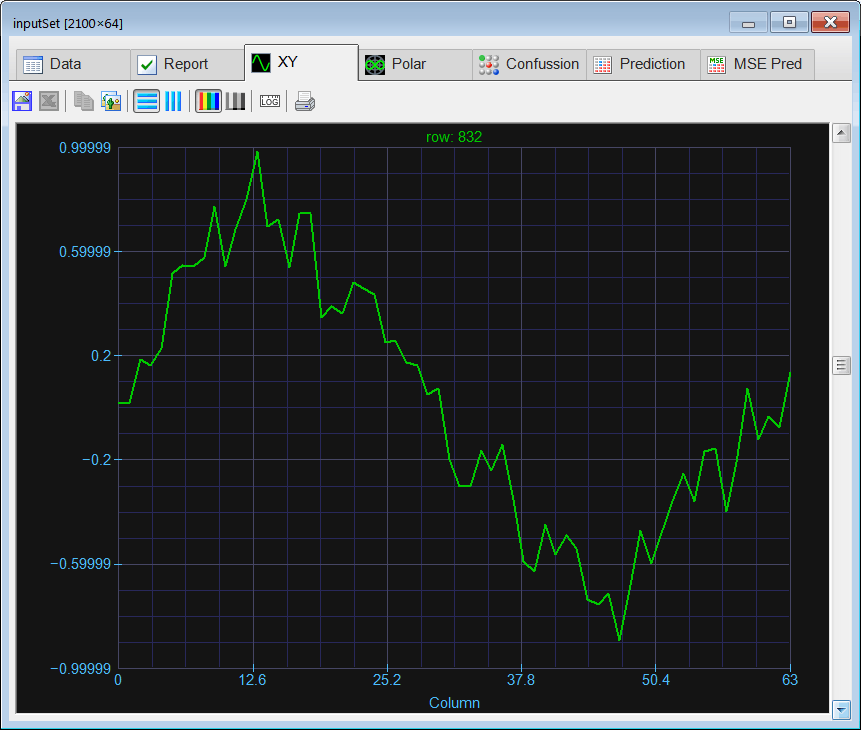

inputSet3

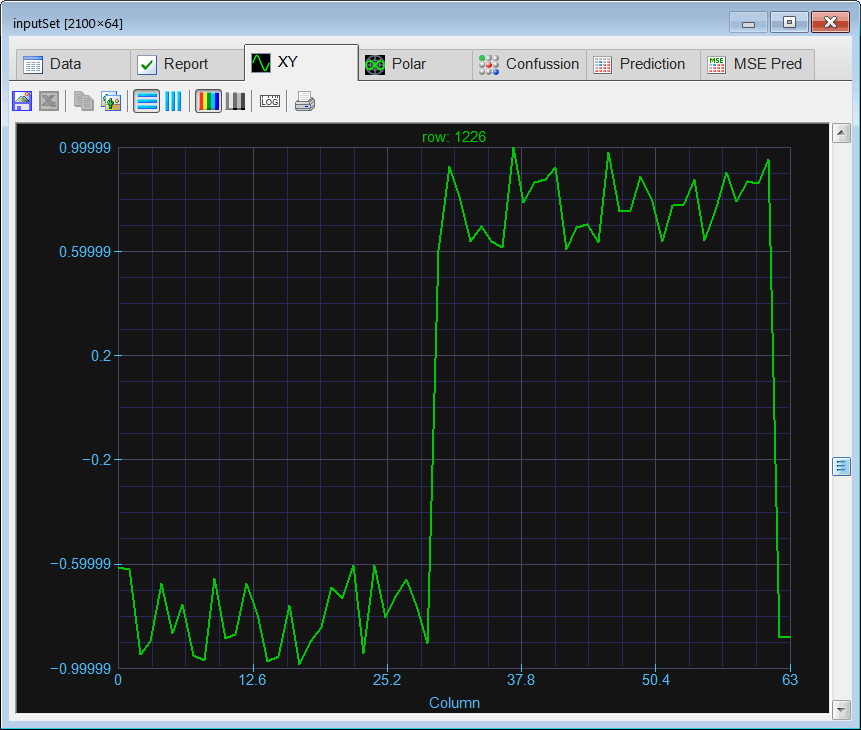

inputSet4

inputSet5

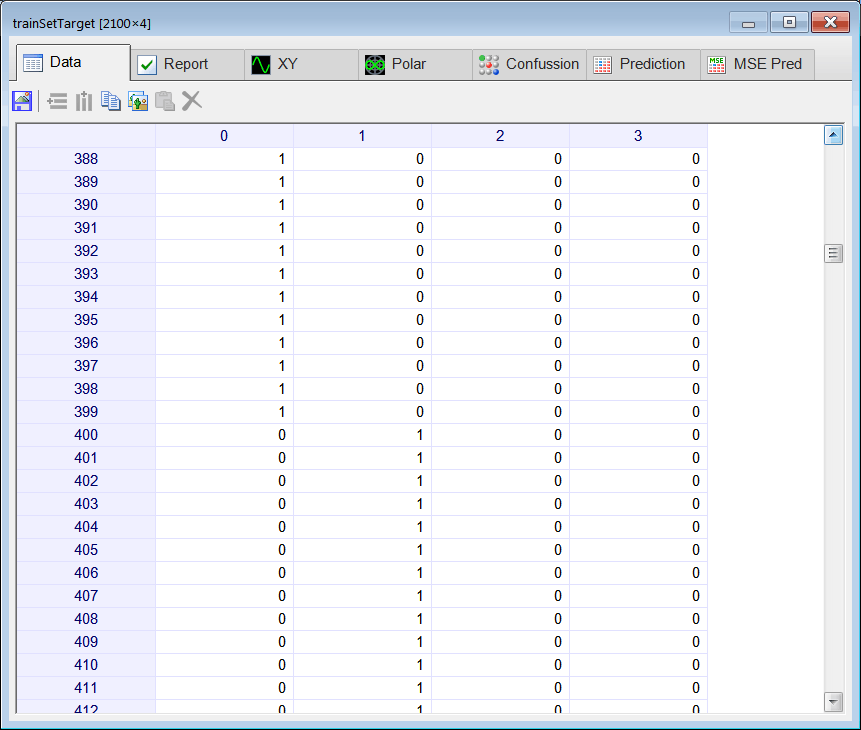

TrainSetTarget1

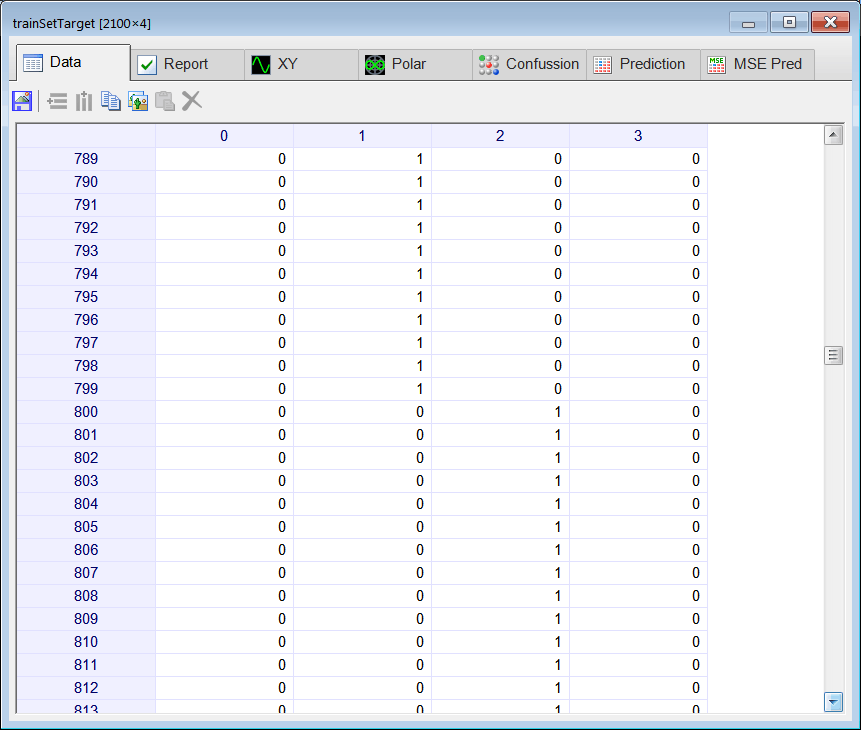

TrainSetTarget2

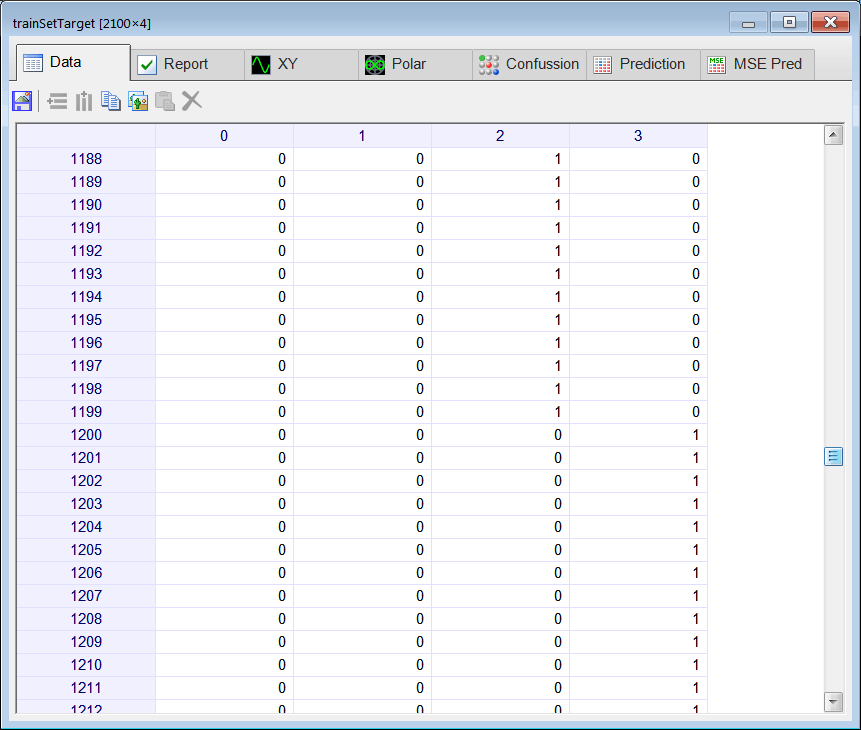

TrainSetTarget3

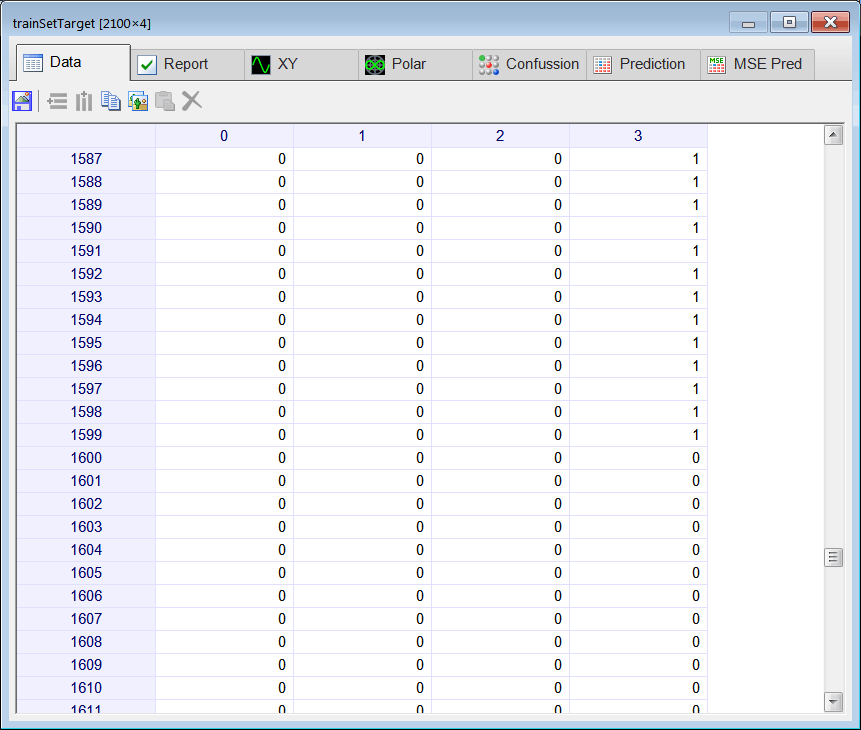

TrainSetTarget4

Problem 2
Build an appropriate validation set for classification of the noisy four signals. Use 950 validation cases (200 cases for each class and 150 for rejection). The validation set must contain signals contaminated with 20% of noise.

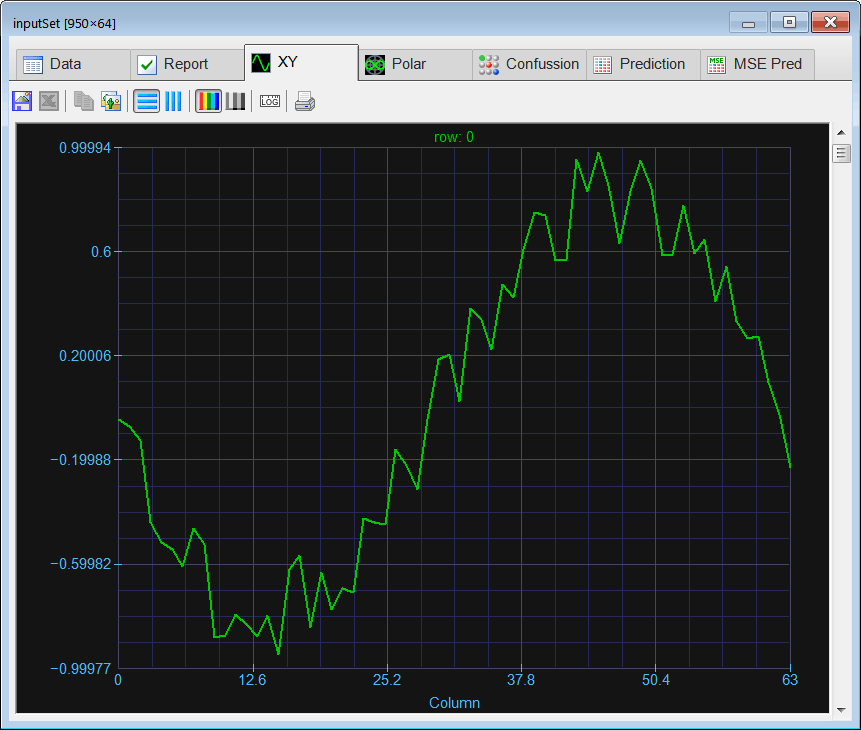

ValidSetInput1

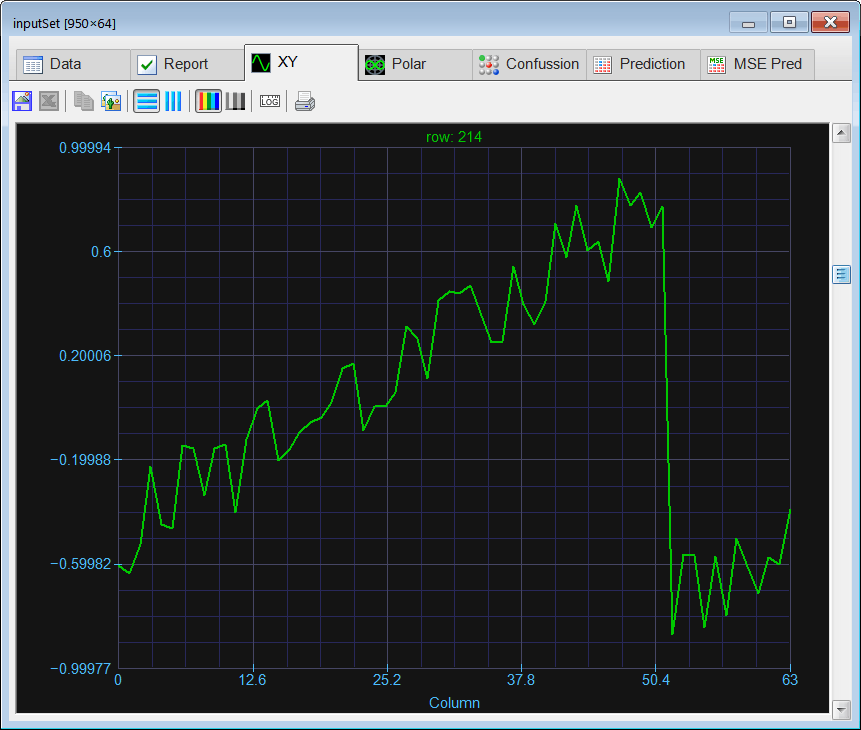

ValidSetInput2

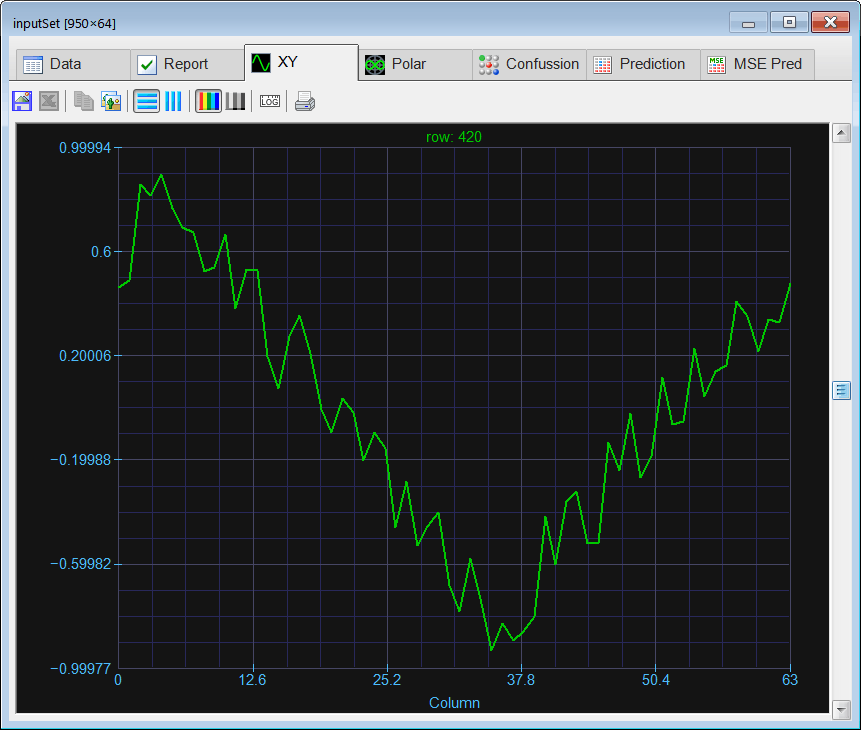

ValidSetInput3

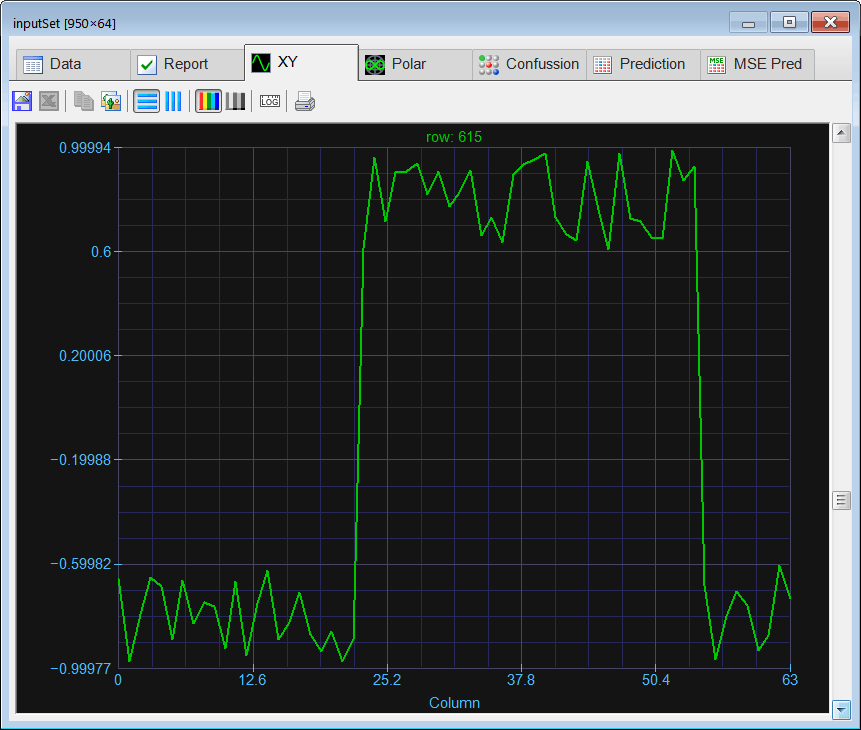

ValidSetInput4

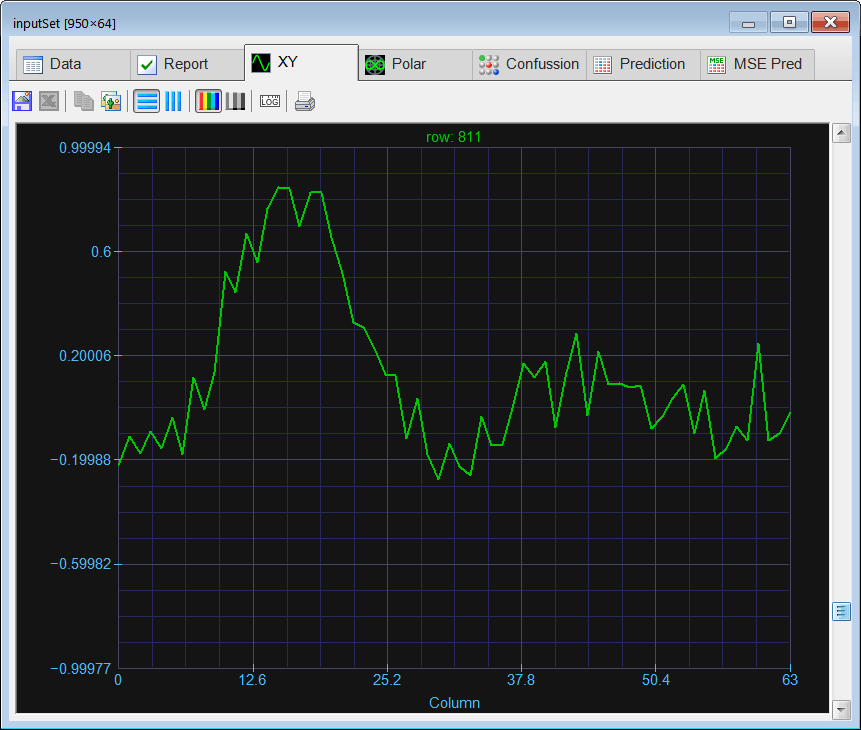

ValidSetInput5

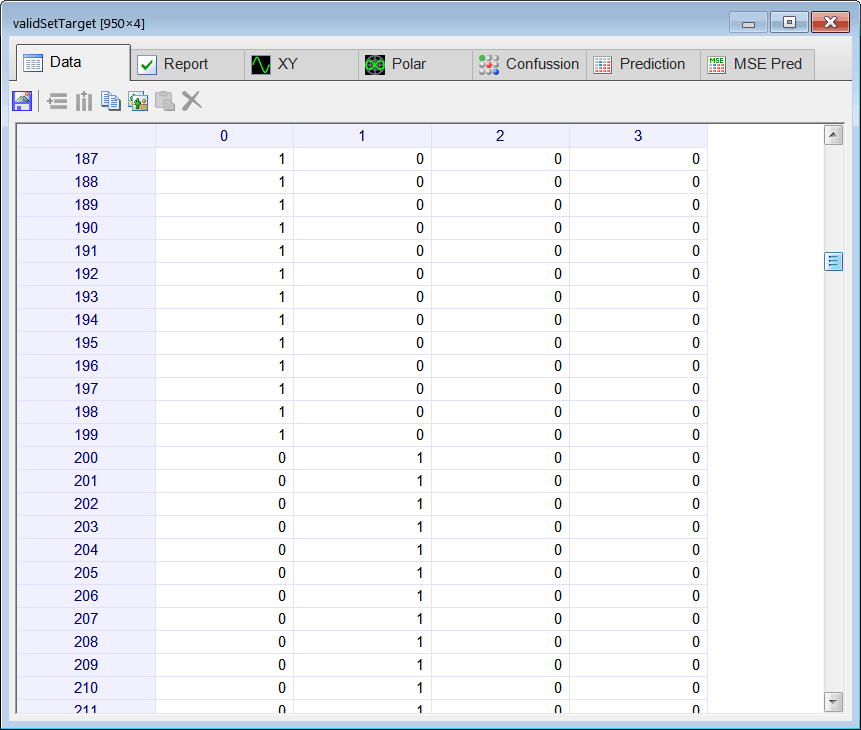

ValidSetTarget

Problem 3
When using the FFT to solve a classification problem, should we apply the same scaling to all ANN inputs or should we scale each input separately?

Tip
A CSV file can store a Matrix or a ComplexMatrix as a coma separated value. As the CSV file is a text file, you can save a Matrix to a CSV file, and then load the same matrix as a ComplexMatrix.

Problem 4
Edit the Train.lab file to design and train an ANN for classification of the four signals in the frequency domain using the function: realfft. Observe that this function returns the real and imaginary values stored sequentially, thus, the first input of the ANN takes the real part of the first complex value, the second input takes the imaginary part of the first complex value, etc. For instance suppose that the FFT is: 2+4j, 8+5j,..., 7+10j, then realfft will return 2, 4, 8, 5, ..., 7, 10.

ComplexClass\Train.lab
//_________________________ Network Setup
LayerNet net;
net.Create(64, 12, 0, 4);

int i = 0;
//____________________________ Input Scaling
for(i = 0; i<64; i++)
{
     //net.SetInScaler(i, -17, 15); // Input values are from -17 to 15
     net.SetInScaler(i, -35, 35);
}
//____________________________ Output Scaling
for(i = 0; i<4; i++)
{
     net.SetOutScaler(i, 0.0, 1.0); // Output values are from 0 to 1
}

//________________________ Load and set the training set
Matrix trainSetInput;
trainSetInput.Load();

Matrix trainSetTarget;
trainSetTarget.Load();
net.SetTrainSet(trainSetInput, trainSetTarget, false);

//________________________ Train
net.TrainSimAnneal(100, 100, 15, 0.01, false, 4, 1.0e-12);
net.TrainConjGrad(2500,1.0e-12);

//_____________________________ Save the trained network
net.Save();

Problem 5
Edit the CheckTraining.lab file to check the training: (a) Compute the confusion matrix for the ANN using the training set. (b) Plot the error for each network output. (c) Save the confusion matrix as a vector image (trainConf.emf).

ComplexClass\CheckTraining.lab
//_________________________________________ Load the Training Set
Matrix trainSetInput;
trainSetInput.Load();
Matrix trainSetTarget;
trainSetTarget.Load();
//_________________________________________ Load the ANN
LayerNet net;
net.Load();
//_________________________________________ Run
Matrix output = net.Run(trainSetInput);
//_________________________________________ Compute the Confusion Matrix
Matrix trainConf = ConfusionMatrix(output, trainSetTarget, 0.5);
trainConf.Save();
//_________________________________________ Compute the Number of Errors
int numErrors = toint(trainConf.GetSum()) - toint(trainConf.GetDiagonalSum());

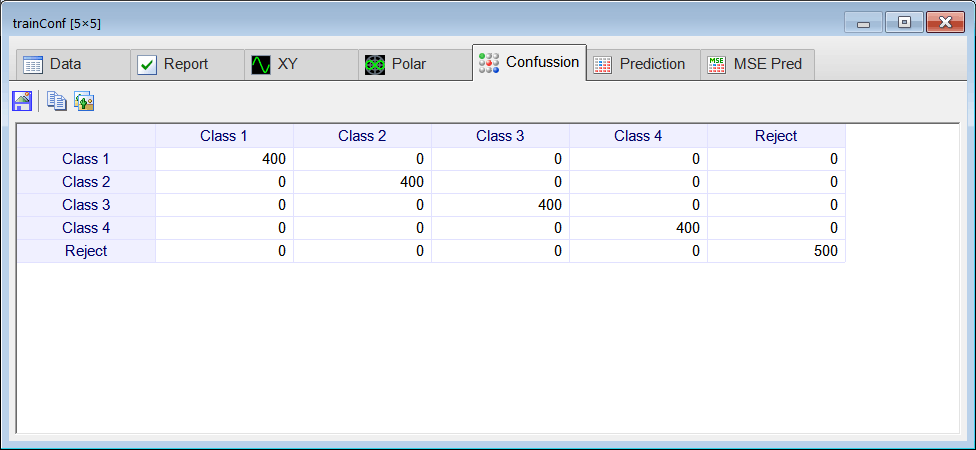

trainConf

Problem 6
Edit the Validation.lab file to perform the validation of the ANN. (a) Compute the confusion matrix for the ANN using the validation set. (b) Plot the error for each network output. (c) Save the confusion matrix as a vector image (validConf.emf).

ComplexClass\Validation.lab
//_________________________________________ Load the validation set
Matrix validSetInput;
validSetInput.Load();
Matrix validSetTarget;
validSetTarget.Load();
//_________________________________________ Load the ANN
LayerNet net;
net.Load();
//_________________________________________ Run
Matrix output = net.Run(validSetInput);
//_________________________________________ Compute the confusion matrix
Matrix validConf = ConfusionMatrix(output, validSetTarget, 0.5);
validConf.Save();
//_________________________________________ Compute the Number of Errors
int numErrors = toint(validConf.GetSum()) - toint(validConf.GetDiagonalSum());

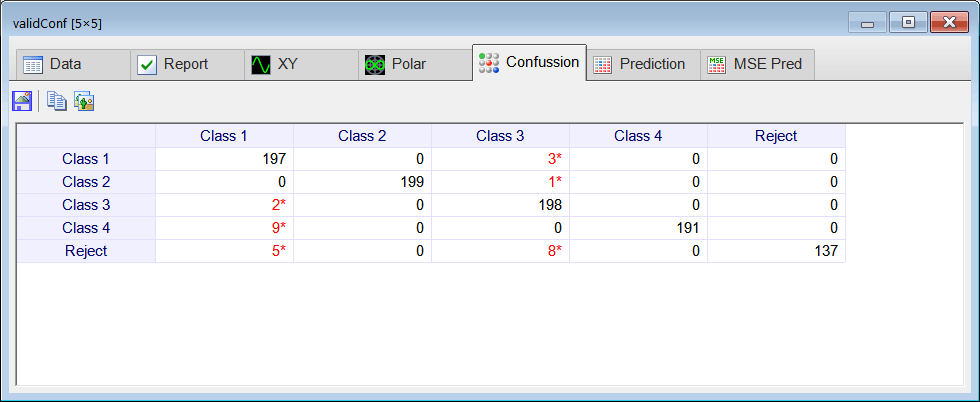

validConf

Problem 7
Add the TrainCx.lab file to design and train a complex domain ANN for classification of the four signals in the frequency domain using the function: fft. Observe that the fft function takes and returns complex domain values. Thus, the first complex value (real and imaginary part) is the first input of the complex domain ANN. Note also than the Fourier Transform of a real signal is symmetric so we can eliminate half of the transformed signal.

ComplexClass\TrainCx.lab
//_________________________ Network Setup
ComplexLayerNet netCx;
netCx.Create(32, 10, 4);

int i = 0;
//____________________________ Input Scaling
for(i = 0; i<32; i++)
{
     //netCx.SetInScaler(i, -17, 15); // Input values are from -17 to 15
     netCx.SetInScaler(i, -35, 35);
}
//____________________________ Output Scaling
for(i = 0; i<4; i++)
{
     netCx.SetOutScaler(i, 0.0, 1.0); // Output values are from 0 to 1
}

//________________________ Load the training set input
ComplexMatrix trainSetInputCx;
trainSetInputCx.Load();

//________________________ Load the training set target
ComplexMatrix trainSetTarget;
trainSetTarget.Load();
netCx.SetTrainSet(trainSetInputCx, trainSetTarget, false);

//________________________ Train
netCx.TrainSimAnneal(100, 100, 15, 0.001, false, 4, 1.0e-12);
//netCx.TrainGenetic(100, 100, 1.5, 0.001, 0.8, 0.00001);
netCx.TrainConjGrad(7500, 1.0e-12);
//netCx.TrainVarMetric(7500, 1.0e-12);

//_____________________________ Save the trained network
netCx.Save();

Problem 8
Add the CheckTrainingCx.lab file to check the training of the complex domain ANN: (a) Compute the confusion matrix for the ANN using the training set. (b) Plot the error for each network output. (c) Save the confusion matrix as a vector image (trainConfCx.emf).

ComplexClass\CheckTrainingCx.lab
//_________________________________________ Load the training set
ComplexMatrix trainSetInputCx;
trainSetInputCx.Load();
ComplexMatrix trainSetTarget;
trainSetTarget.Load();
//_________________________________________ Load the ANN
ComplexLayerNet netCx;
netCx.Load();
//_________________________________________ Run
ComplexMatrix output = netCx.Run(trainSetInputCx);
//__________________________________________ Compute the confusion matrix
Matrix trainConfCx = ConfusionMatrix(output, trainSetTarget, 0.5);
trainConfCx.Save();
int numErrors = toint(trainConfCx.GetSum()) - toint(trainConfCx.GetDiagonalSum());

trainConfCx

Problem 9
Add the ValidationCx.lab file to perform the validation of the complex domain ANN. (a) Compute the confusion matrix for the ANN using the validation set. (b) Plot the error for each network output. (c) Save the confusion matrix as a vector image (validConfCx.emf).

ComplexClass\ValidationCx.lab
//_________________________________________ Load the input set
ComplexMatrix validSetInputCx;
validSetInputCx.Load();
ComplexMatrix validSetTarget;
validSetTarget.Load();
//_________________________________________ Load the ANN
ComplexLayerNet netCx;
netCx.Load();
//_________________________________________ Run
ComplexMatrix output = netCx.Run(validSetInputCx);
//__________________________________________ Compute the confusion matrix
Matrix validConfCx = ConfusionMatrix(output, validSetTarget, 0.5);
validConfCx.Save();
int numErrors = toint(validConfCx.GetSum()) - toint(validConfCx.GetDiagonalSum());

validConfCx
