Simple Prediction


Tip
In this section, an artificial neural network will be designed and trained to predict a temperature value on a time series: y[0], y[1], y[2]... y[n-1]

Problem 1
Create a Neural Lab project called SimplePred to predict temperature in small city in Europe (You may select the Prediction option for the network application in the New Project dialog.) The temperature in this city has been sampled as shown: -4.33, -0.40, 1.36, -0.17, -1.48, -0.83, 1.64, 5.59, 7.09, 5.46, 2.72, 0.99, 1.99, 4.62, 6.11, 5.11, 1.80, -1.12, -1.80, 0.32, 2.71, 2.85, 1.06, -1.78, -1.96, 0.72, 4.02, 6.60, 6.23, 4.71, 3.80, 6.68, 10.98, 13.95, 14.75, 13.82, 12.45, 13.47, 16.66, 19.77, 20.84, 18.44, 15.78, 14.54, 15.87, 18.31, 19.70, 17.48, 14.14, 12.15, 12.02, 14.87, 16.71, 16.42, 13.64, 11.91, 11.91, 15.14, 18.40, 20.27, 19.46, 18.17, 18.52, 21.46. Create a data file using comma separated values using notepad

Solution 1

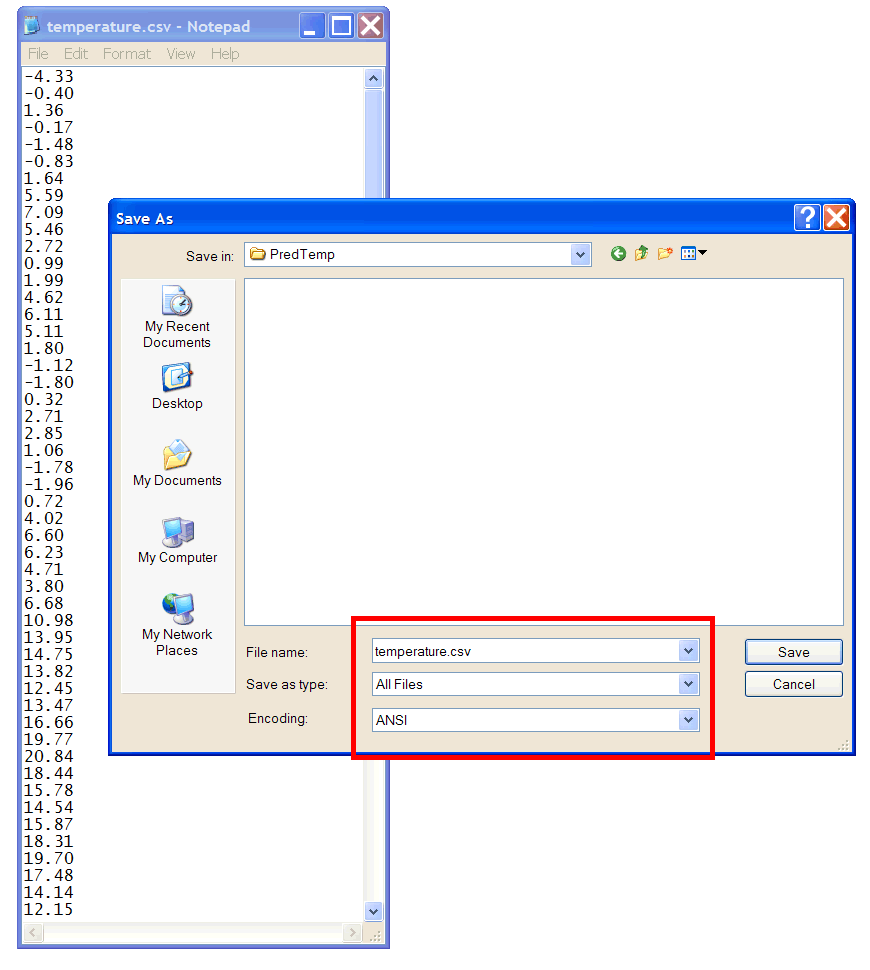

NotepadNotepad Open Notepad a type one temperature value in each row; save the file as temperature.csv in the folder just created (be sure to save the file as temperature.csv and not temperature.csv.txt)

temperature_csv

Problem 2
Add the Temperature.lab file to plot the temperature series.

Solution 2

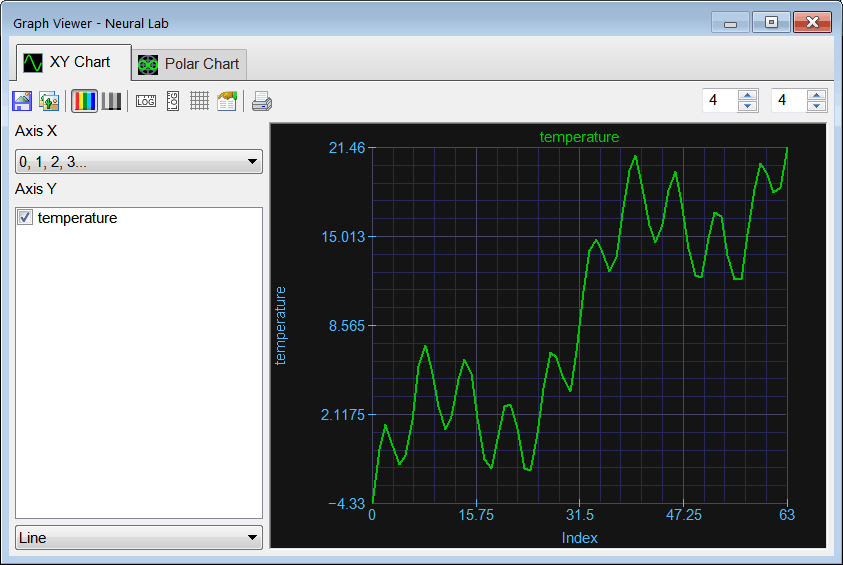

Afger editing the file, run the program and GraphGraph click the button to open the graph viewer and select the options of the viewer as shown in the figure.

SimplePred\Temperature.lab
Vector temperature;
temperature.Load();

Temperature

Problem 3
(a) Build a training set for prediction for an ANN with five inputs. (b) Design and train an ANN for prediction of the temperature. (c) Predict the future temperature value.

Solution 3
Add a new file called Prediction.lab, then edit the file to add the code shown below. RunRun click the button to execute the code. The code creates the wrapped data set (wrapSet). This matrix has 6 columns, the first five columns are for the training set input and the last column is used for the training set target. After the training set has been created, the code creates an ANN with five inputs and one output. The ANN is, then, trained using simulated annealing and the method of Levenberg Marquardt. After the training has been completed, the ANN is excited with the last five values of the series. The output of the ANN is the forecast.

SimplePred\Prediction.lab
int numInputs = 5;

Vector temperature;
temperature.Load();
//
int length = temperature.GetSize();

Matrix wrapSet = temperature.Wrap(numInputs+1); // Last column is for the target
//_________________________________ trainining set input
Vector indexes;
indexes.CreateSeries(0, numInputs -1, numInputs ); // 0, 1, 2, 3, 4
Matrix trainSetInput = wrapSet.GetCols(indexes);
//_________________________________ trainining set target
indexes.Create(1);
indexes[0] = numInputs; // last column
Matrix trainSetTarget = wrapSet.GetCols(indexes);
//_________________________________ Create the network
LayerNet net;
net.Create(numInputs, 1, 0, 1);
int i;
for(i = 0; i<numInputs; i++)
{
     net.SetInScaler(i, -5.0, 28.0);
}
net.SetOutScaler(0, -5.0, 28.0);
//________________________________ Training
net.SetTrainSet(trainSetInput, trainSetTarget, false);
net.TrainSimAnneal(100, 100, 15, 0.01, false, 4, 1.0e-12);
net.TrainLevenMar(2000,1.0e-12);
net.Save();
//________________________________ Compute mse
Matrix output = net.Run(trainSetInput);
double mse = ComputeMse(output, trainSetTarget);

//________________________________ Compute the input to make the prediction (last five values in series)
Matrix input;
input.Create(1, numInputs);
for(i = 0; i<numInputs; i++)
{
     input[0][i] = temperature[length-numInputs+i];
}
//_______________________________ Apply the input to the network
output = net.Run(input);
double predTemp = output[0][0];
//

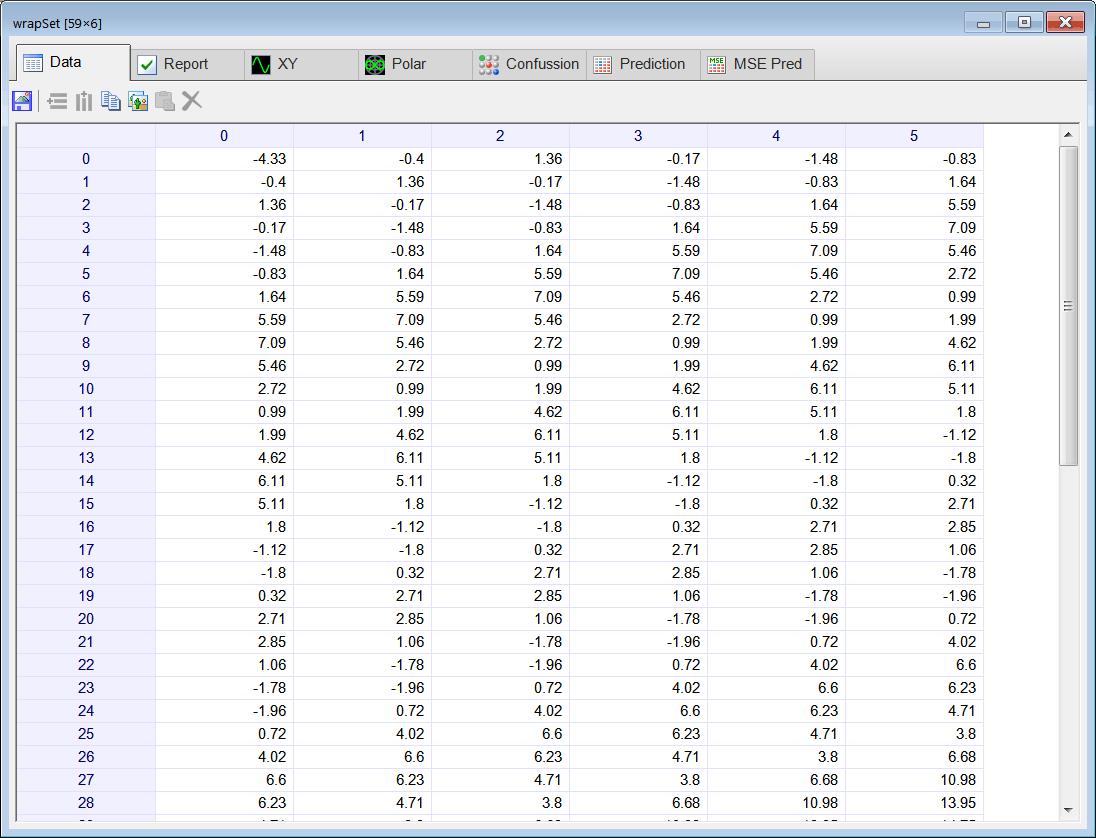

wrapSet

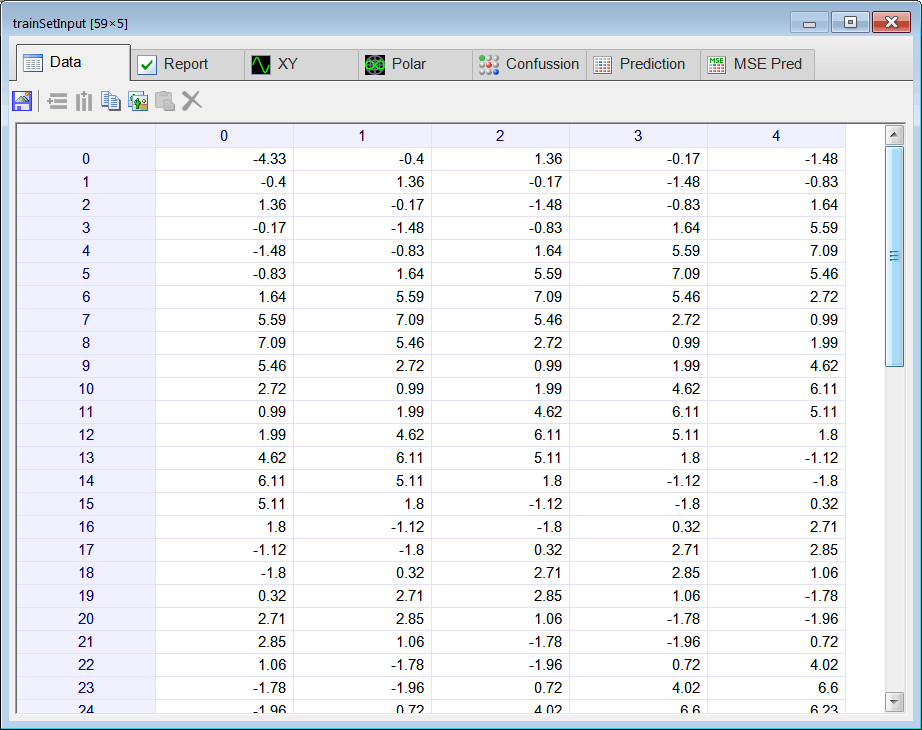

trainSetInput

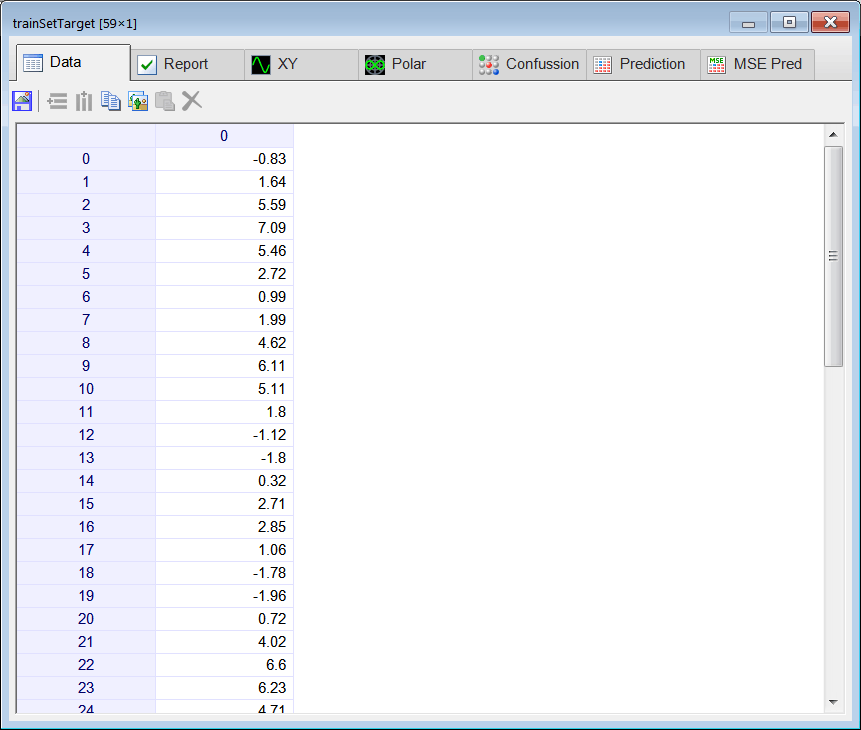

trainSetTarget

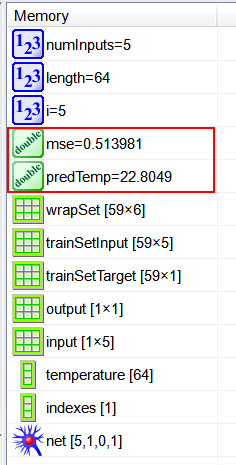

mse

Problem 4
Compute the maximum number of neurons in the hidden layer for the network.

Solution 4
Answer 4 neurons

Problem 5
Change the number of neurons in the hidden layer to: 1, 2, 3 and 4. Fill the following table by computing the mse and the future value of the temperature (y[64]). Because the series length is 64 (y[0], y[1], y[2] ... y[63]), y[64] represents the forecast value in the series.

numHid    mse    Forecast (y[64])
1
2
3
4

Problem 6

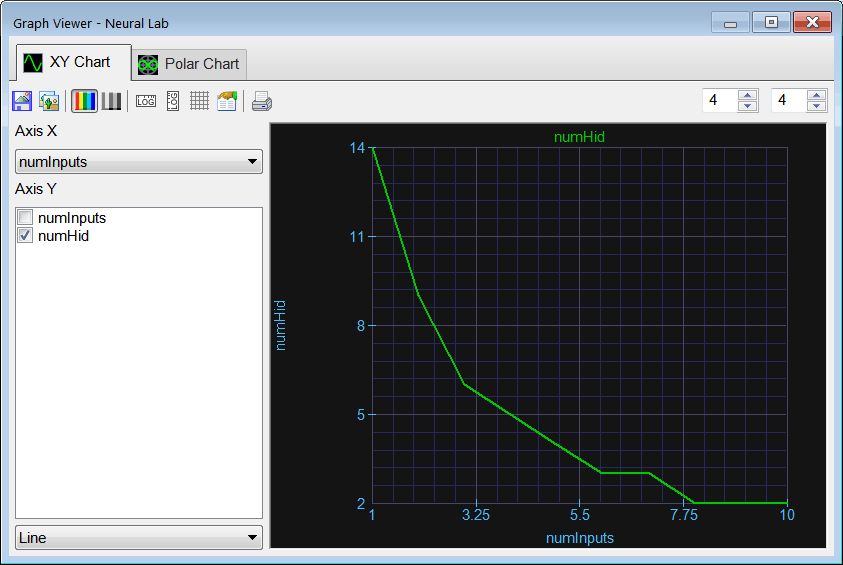

Suppose that the minimum number of training cases is 2.2 times the number of weights in the hidden layer. Write some code to plot the maximum number of neurons in the hidden layer for an ANN in prediction configuration and the series of problem 1 of length 64.

NumHiddenPlot

Problem 7
Modify the code to complete the tables below computing the mse for each combination of the number of inputs, and the numbers of neurons in the hidden layer. Write the value of the mse in each cell. Those cells with a dash represent those with over-fitting, do not compute the mse for these.

MSE as a function of numInputs and numHid
      numHid = 1        numHid = 2       numHid = 3
numInputs = 5
numInputs = 6
numInputs = 7
numInputs = 8  -
numInputs = 9  -
numInputs = 10  -

Problem 8
Compute the forecast y[64] for each combination of the number of inputs and the numbers of neurons in the hidden layer. Write the value of the y[64] in each cell.

Forecast y[64] as a function of numInputs and numHid
      numHid = 1        numHid = 2       numHid = 3
numInputs = 5
numInputs = 6
numInputs = 7
numInputs = 8  -
numInputs = 9  -
numInputs = 10  -

Problem 9

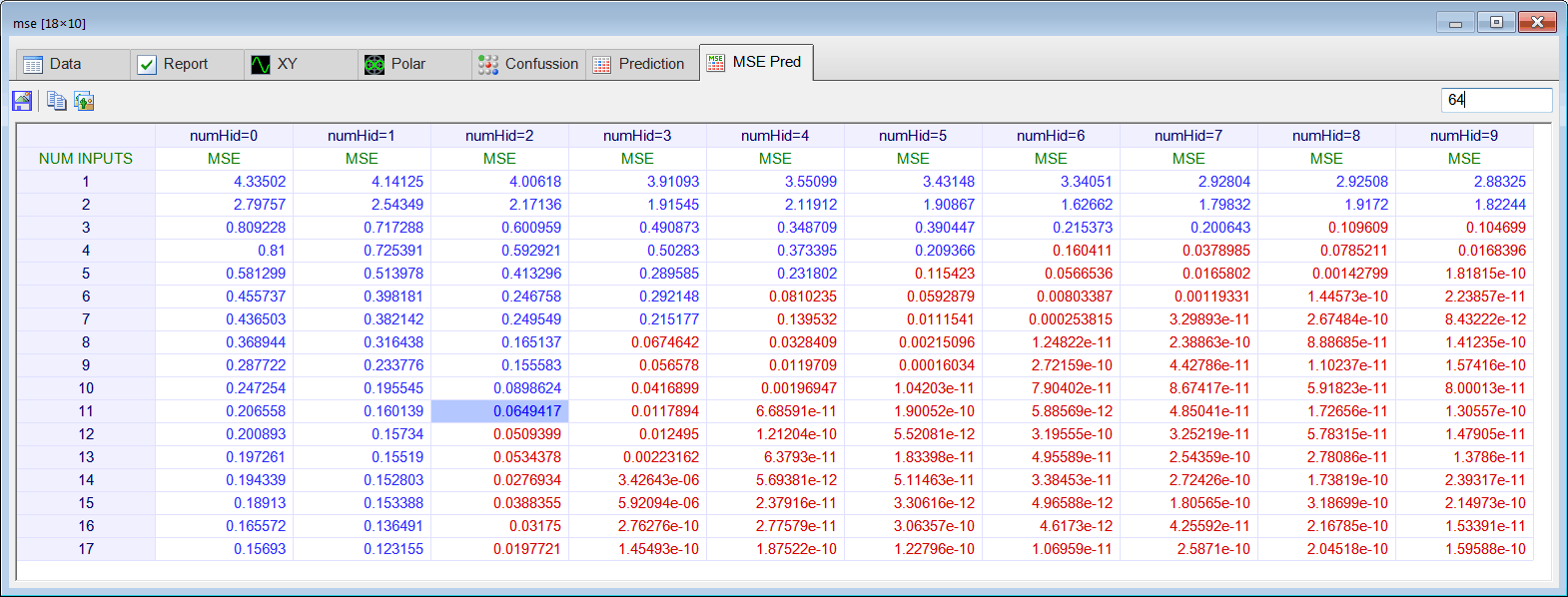

Create a new file called PredAnalysis.lab to perform the prediction analysis, that is, you code must compute the mse and prediction value for each combination of network inputs and number of neurons in the hidden layer. Your code must generate the mse prediction analysis table, and the value prediction analysis table. Use the sample code shown below. Do not declare variables inside a for, do-while or while block. Once you have designed the code in the PredAnalysis.lab file, run the program. Double click the mse matrix to perform the mse prediction analysis, then click the MSE Pred tab (please provide the series length, 64, to update the report). Once you have reviewed the mse prediction analysis, close it and double click the value matrix to perform the value prediction analysis, then click the Prediction tab (please provide the series length, 64, to update the report).

SimplePred\PredAnalysis.lab
´╗┐Vector temperature;
temperature.Load();
...
Matrix mse;
Matrix value;
mse.Create(18, 10);
value.Create(18, 10);

for(numInputs = 1; numInputs<18; numInputs++)
{
     for(numHid = 0; numHid<10; numHid++)
     {
          ...
          //_________________________________________ 1. Create trainSetInput

          ...
          //_________________________________________ 2. Create trainSetTarget
          ...
          //_________________________________________ 3. Create the network

          ...

          //_________________________________________ 4. Train
          ...
          net.SetTrainSet(trainSetInput, trainSetTarget, true); //Force training with overfitting for prediction analysis
          ...
          //_________________________________________ 5. Compute mse

          ...
          //_________________________________________ 6. Compute input to make prediction
          ...
          //_________________________________________ 7. Compute prediction value using the network
          ...

     }
}
mse.Save();
value.Save();

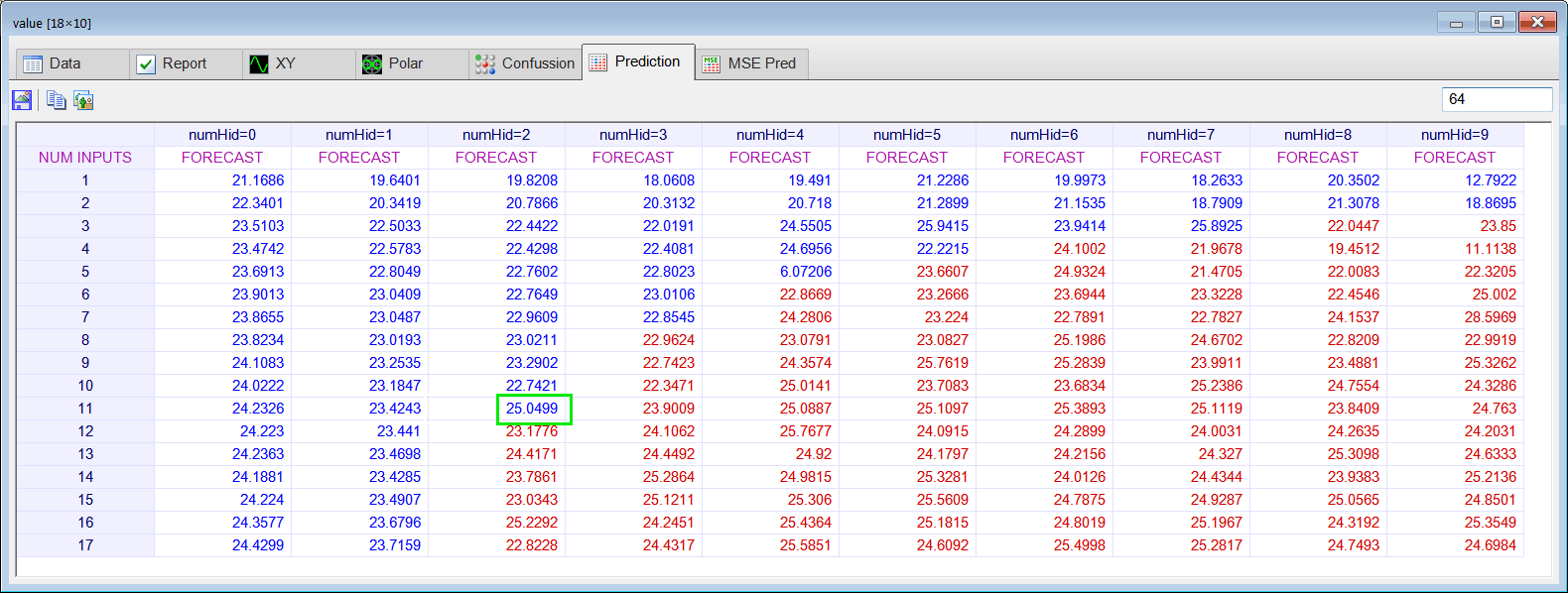

MsePredictionAnalysis

ValuePredictionAnalysis

Series Length     Actual Value      Estimate of y[64]
64y[64]=23.75

Prediction from Mean Squared Error

When performing prediction analysis, you may use the mse.Prediction() function to compute programmatically the row and column of the prediction from a mse matrix. The function takes the series length, and returns a vector with the row and column where the prediction is located.

Problem 10
Create a report in Microsoft Word. Write some conclusions in the report indicating the value of the forecast and how it was calculated.
