Logic Operation OR using Matlab


  x1    x2    z
000
011
101
111

Problem 1
Write the BuildTrainSet.m file using Matlab to build an appropriate training set for the OR operation. Use 64 training cases; observe that each training case is a column in the matrix. (To keep the files organized, create the OrMapMatlab folder for all problems in this section.)

BuildTrainSet.m
clear;
numCases=64;
% ______________________ Create two random inputs
input0=round(rand(1, numCases));
input1=round(rand(1, numCases));
%_______________________ Contaminate the input with noise
noisyInput0 = input0*0.9 + rand(1, numCases)*0.1;
noisyInput1 = input1*0.9 + rand(1, numCases)*0.1;
%________________________ Compute the input and the target
trainSetInput = [noisyInput0  ; noisyInput1 ]
trainSetTarget = input0 | input1;

Output
> > BuildTrainSet

trainSetInput =

  Columns 1 through 10

    0.0550    0.9145    0.9853    0.0622    0.9351    0.0513    0.0402    0.9076    0.9240    0.9123
    0.9812    0.0533    0.0351    0.0939    0.9876    0.0550    0.0622    0.9587    0.9208    0.9301

  Columns 11 through 20

    0.9184    0.0240    0.9417    0.9050    0.9903    0.9945    0.9491    0.0489    0.9338    0.0900
    0.9471    0.0230    0.9844    0.9195    0.0226    0.9171    0.0228    0.0436    0.9311    0.9923

  Columns 21 through 30

    0.9369    0.0111    0.0780    0.0390    0.0242    0.9404    0.9096    0.0132    0.9942    0.0956
    0.9430    0.0185    0.9905    0.0980    0.0439    0.0111    0.0258    0.9409    0.0595    0.9262

  Columns 31 through 40

    0.0575    0.0060    0.9235    0.9353    0.0821    0.0015    0.0043    0.9169    0.9649    0.9732
    0.0603    0.9711    0.0222    0.9117    0.9297    0.9319    0.0424    0.0508    0.0086    0.9262

  Columns 41 through 50 ...


Problem 2
Write the BuildValidSet.m file using Matlab to build a validation set for the OR operation. Use 128 validation cases.

BuildValidSet.m
numCases=128;
% ______________________ Create two random inputs
input0=round(rand(1, numCases));
input1=round(rand(1, numCases));
%_______________________ Contaminate the input with noise
noisyInput0 = input0*0.9 + rand(1, numCases)*0.1;
noisyInput1 = input1*0.9 + rand(1, numCases)*0.1;
%________________________ Compute the input and the target
validSetInput = [noisyInput0  ; noisyInput1 ]
validSetTarget = input0 | input1;

Output
> > BuildValiSet

validSetInput =

  Columns 1 through 10

    0.0366    0.9764    0.0628    0.9772    0.0933    0.9973    0.0192    0.9139    0.9696    0.9094
    0.9147    0.0189    0.0043    0.0635    0.0282    0.0539    0.0695    0.0499    0.9536    0.0445

  Columns 11 through 20

    0.9525    0.0530    0.9861    0.0485    0.0393    0.9671    0.9741    0.0520    0.9348    0.9150
    0.9124    0.9490    0.9853    0.0874    0.0270    0.0208    0.9565    0.9640    0.0417    0.9206

  Columns 21 through 30

    0.9586    0.9262    0.9044    0.9755    0.0243    0.0442    0.9688    0.0359    0.0736    0.0395
    0.9948    0.9082    0.9106    0.0142    0.0166    0.9621    0.9574    0.0052    0.0931    0.0729

  Columns 31 through 40


Problem 3
Write the Trainx.m file using Matlab to design and train an ANN for the AND gate. Use one hidden layer and one neuron in this layer. Train the ANN using the Conjugate Gradient method:

     Number of iterations = 1000
     Goal (desired mse) = 0.0001

Note: feedforward is a command available starting on version 2010b. In previous versions, you may use newff.

Trainx.m
%________________________ After version 2010a
net = feedforwardnet(2, 'traingdx');
net.trainParam.epochs=1000;
net.trainParam.goal=0.0001;
net = train(net, trainSetInput, trainSetTarget);
%________________________ version 2010a and earlier
%ranges = [0,1; %Range of input 0 is from 0 to 1
%    0 1];      %Range of input 1 is from 0 to 1
%net = newff(ranges, [2, 1], {'logsig', 'logsig'}, 'traingdx');
%net.trainParam.epochs=1000;
%net.trainParam.goal=0.0001;
%net = train(net, trainSetInput, trainSetTarget);

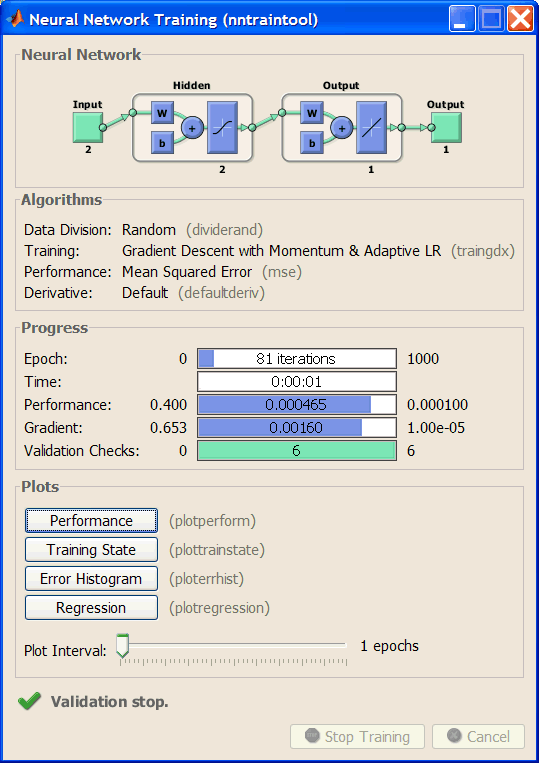

nntraintool

Problem 4
Write the CheckTraining.m file using Matlab to check the training by computing the mean squared error for the ANN using the training set.

CheckTraining.m
%________________________ 2010a and later
output = net(trainSetInput);
mse(output - trainSetTarget)
%________________________ Before version 2010a
%output = sim(net, trainSetInput);
%mse(output - trainSetTarget)

Output
> > CheckTraining

ans =

  5.0398e-004


Problem 5
Write the Validation.m file using Matlab to perform the validation of the ANN by computing the mean squared error for the ANN using the validation set.

Validation.m
%________________________ 2010a and later
output = net(validSetInput);
mse(output - validSetTarget)
%________________________ Before version 2010a
%output = sim(net, validSetInput);
%mse(output - validSetTarget)

Output
> > Validation

ans =

  6.5930e-004


Problem 6

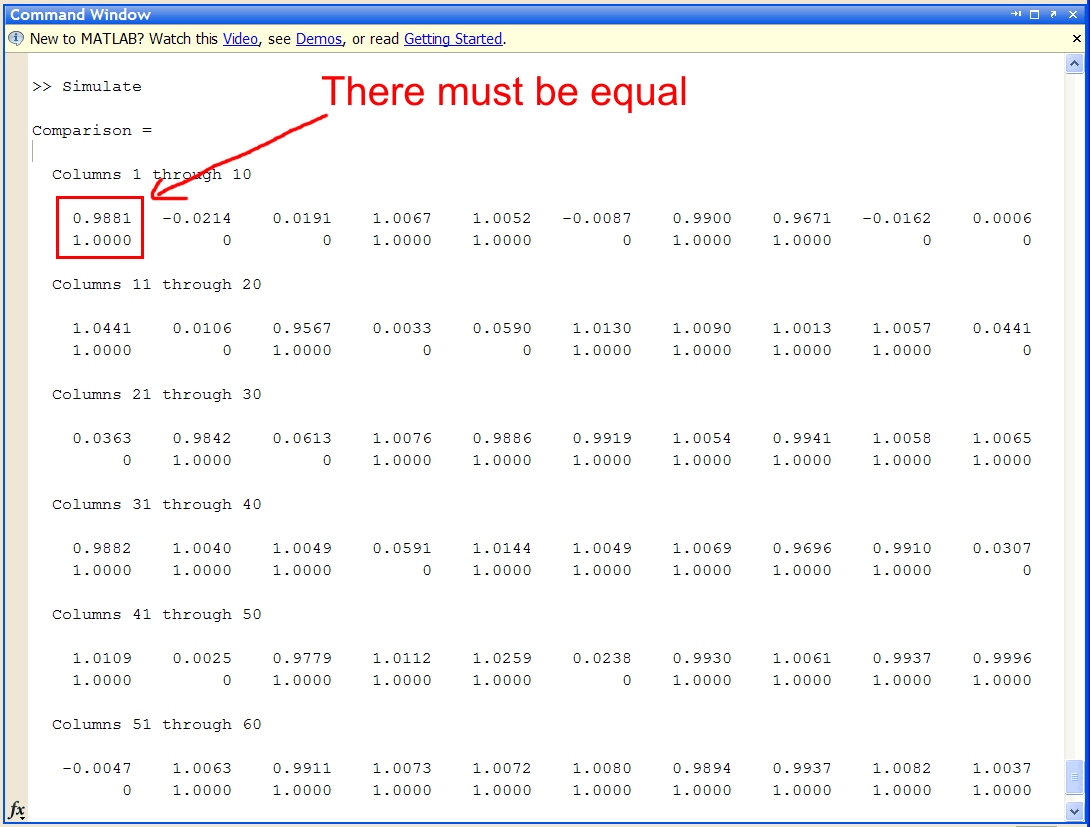

Write the Simulatex.m file using Matlab to simulate the ANN previously trained. Observe that in the comparison the elements in each column must be equal.

Simulatex.m
%________________________ 2010a and later
output = net(trainSetInput);
comparison = [output; trainSetTarget]
%________________________ Before version 2010a
%output = sim(net, trainSetInput);
%comparison = [output; trainSetTarget]

Simulate
