# FM Receiving Antenna

 Tip You will find some NEC lab samples in the Nec Lab folder (C:\Program Files (x86)\Neclab)

 Problem 1 A four elements directional antenna to operate in the band from 100 MHz to 108 MHz will be designed. Suppose that the desired impedance is 75 Ohms and that a minimum gain of 6.5 dBd is required. NEC Lab will be used to determine the best positions and lengths of the wires to meet the required goals. Assume that the five elements are initially anywhere in the space XYZ, and that they are paralleled to each other.

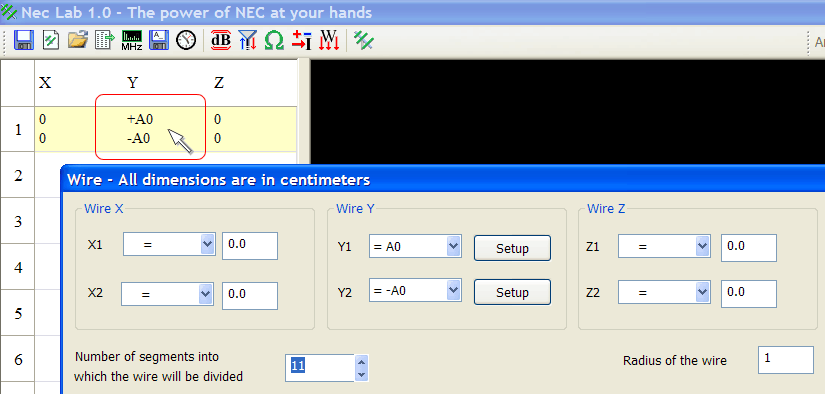

 Step 1 Open NEC Lab - this will create an empty project.Select the first wire by making double click on the first wire on the left panel. The Wire dialog will be open as shown.

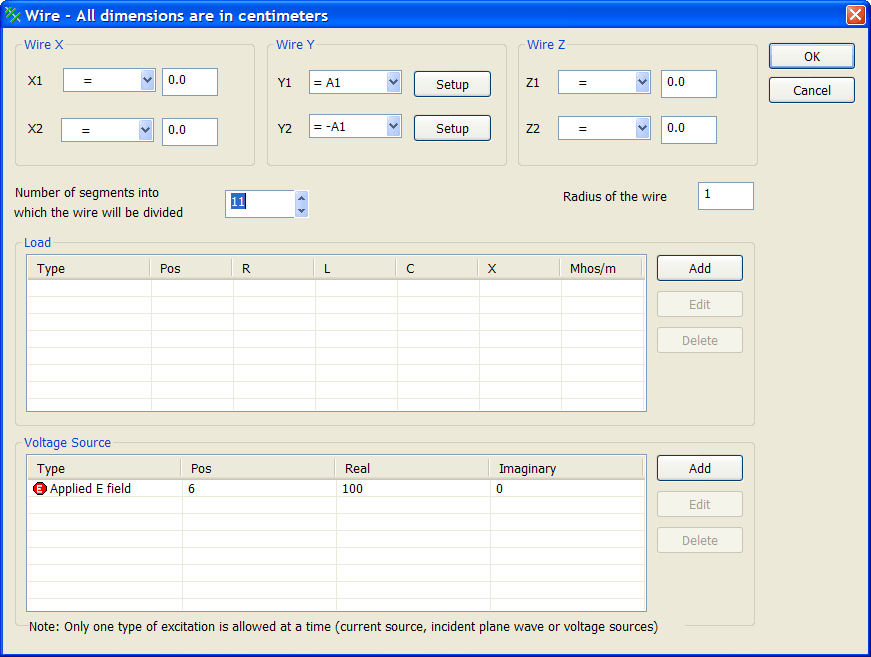

 Step 2 The wire dialog allows editing both ends of a wire. For each end there is a 3D coordinate point that can be setup as: a numeric a valuea variable, ora value that NEC Lab will optimizeFor this example, Wire 1 will be placed at the origin. Click on the Drop Down box next to Y1 and set Y1 = A1. Click on the Drop Down box next to Y2 and set Y2 = -A1.

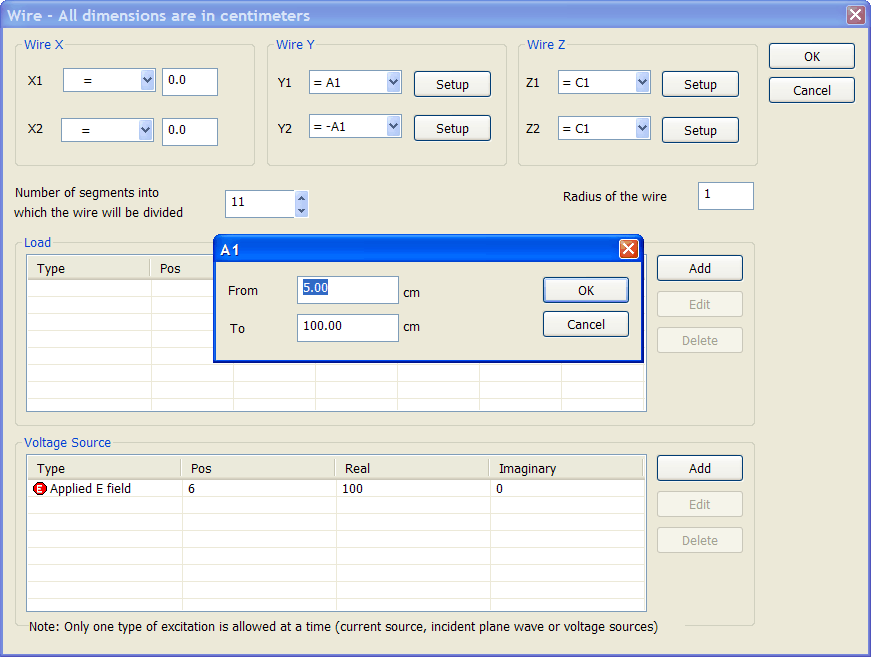

 Step 3 Set the range for A1 and C1NEC Lab will optimize the value of A1 when running the designer, it will however require a range to create an antenna draft. Click on the Y1 Setup button. A new dialog to edit the possible range for the variable A1 will be open. Verify that the range is as shown. Press OK to close the A1 dialog.Press OK to close the Wire dialog.

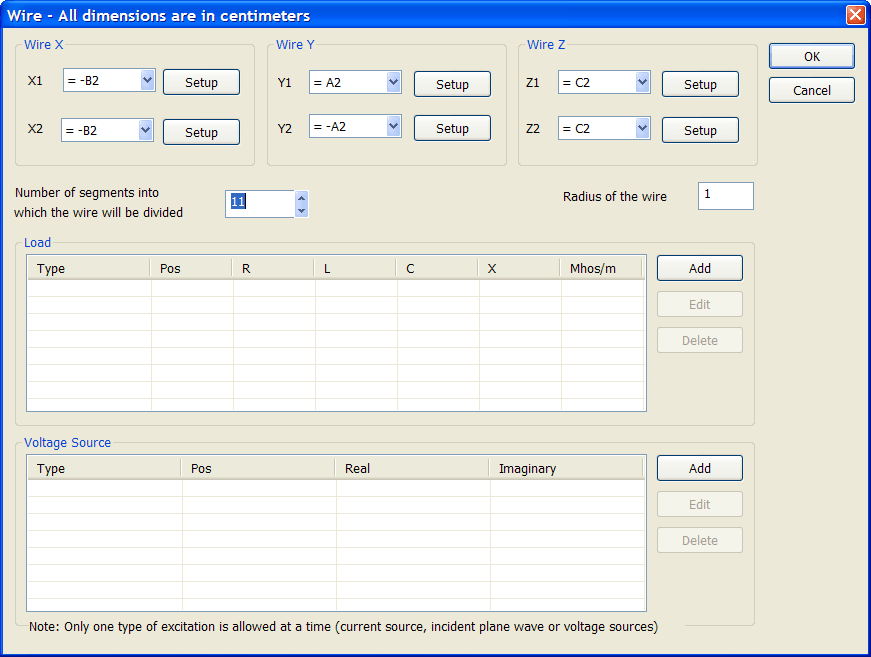

 Step 4. Adding a second wire. On the toolbar click: Add WireSet  X1= -B2 and  X2 = -B2Set  Y1 = A2 and  Y2 = -A2Set  Z1= C2 and  Z2 = C2

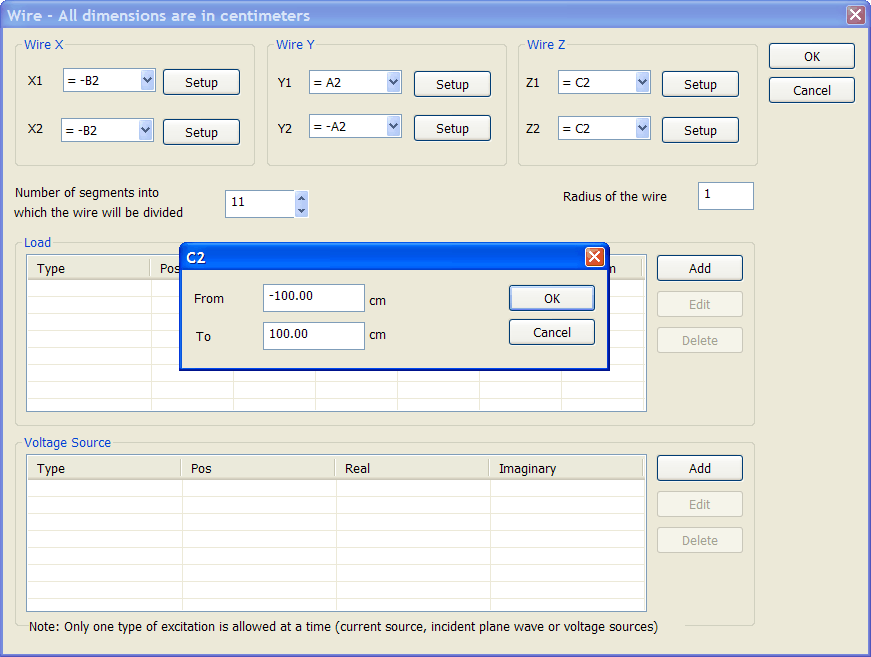

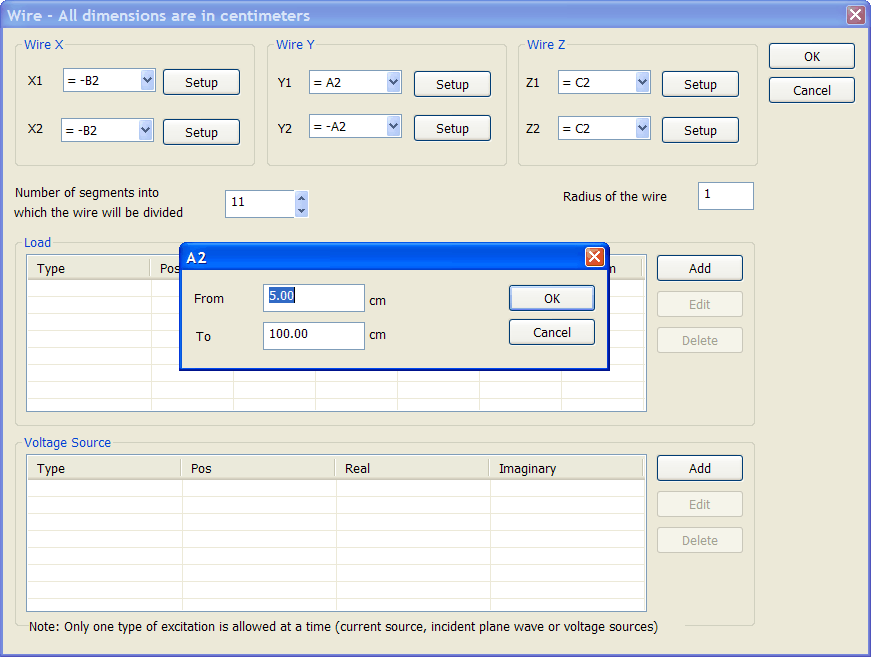

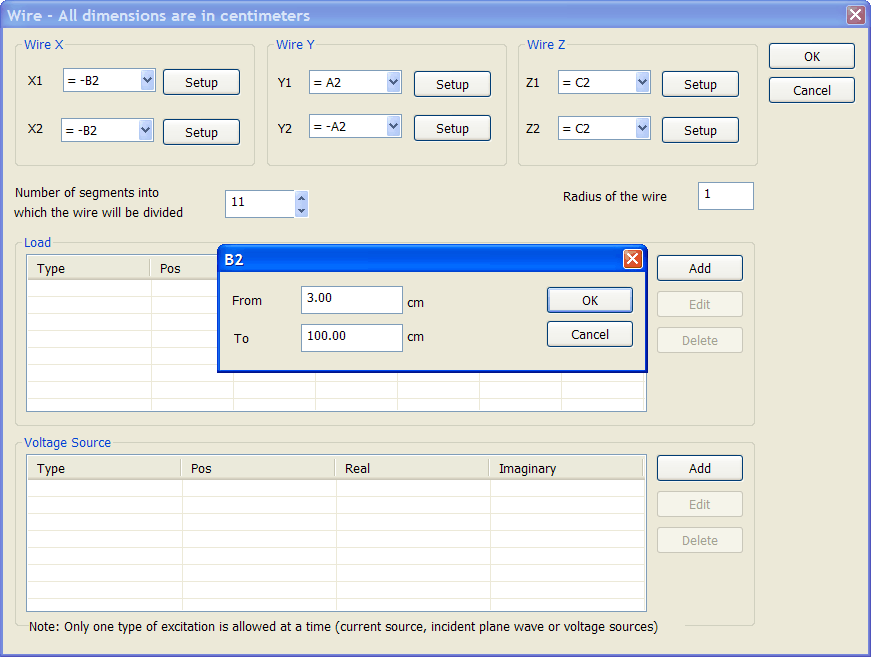

 Step 5 Set the range for A2, B2 and C2.Press the Y1 Setup button and verify that the range of A2 is from 5.00 to 100.00 centimetersPress the X1 Setup button and set the range of B2 from 3.00 to 100.00 centimetersPress the Z1 Setup button and set the range of C2 from -100.00 to 100.00 centimeters

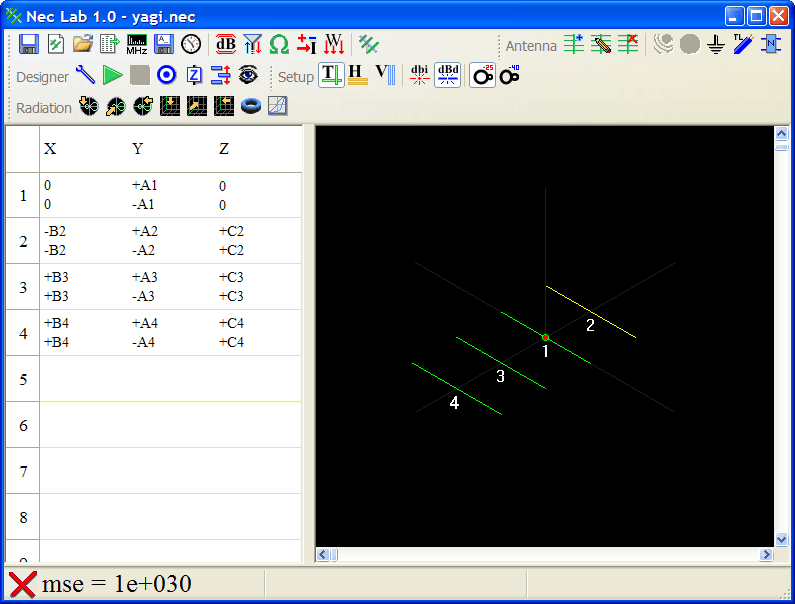

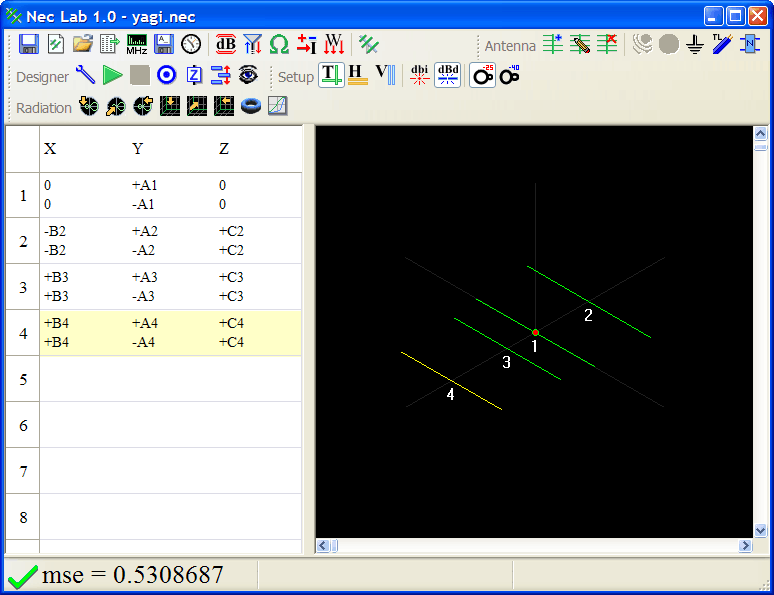

 Step 6 Add wires: 3 and 4. Following the procedure previously described add two more wires as shown:

 Wire 3 Range X1= +B3 B3 from 3 to 100 X2= +B3 Y1= +A3 A3 from 5 to 100 Y2= -A3 Z1= C3 C3 from -100.00 to 100.00 Z2= C3

 Wire 4 Range X1= +B4 B4 from 5 to 200 X2= +B4 Y1= +A4 A4 from 5 to 100 Y2= -A4 Z1= C4 C4 from -100.00 to 100.00 Z2= C4

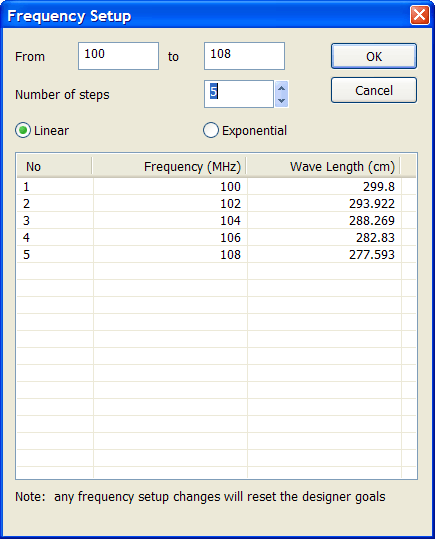

 Step 7 Frequency setup. On the toolbar click: FrequencySet the frequency parameters as shownPress OK to close the dialog

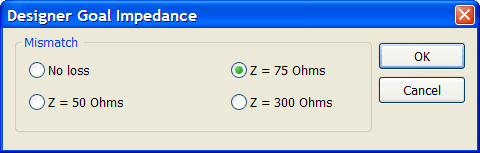

 Step 8 Impedance setup. On the toolbar click: Designer Goal ImpedanceSelect Z = 75 OhmsPress OK to close the dialog

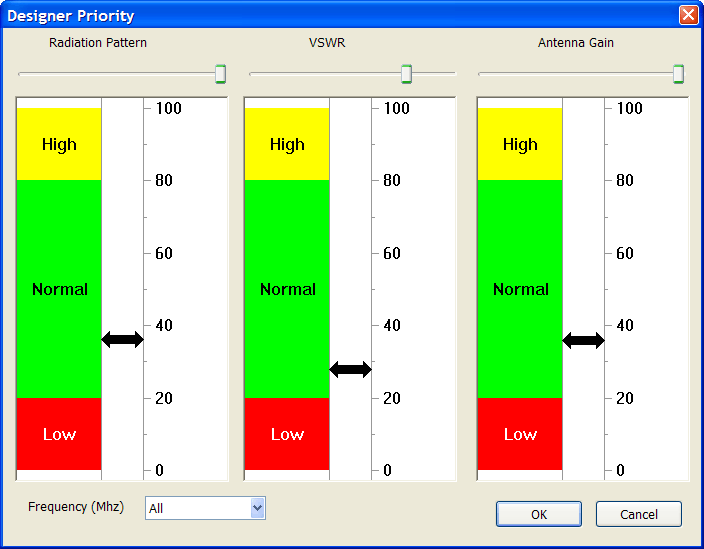

 Step 9. Designer Priority Setup. Designer PriorityFor a receiving antenna the VSWR is not as important as for a transmitting antenna. Set the priorities as shown.Press OK to close the dialog

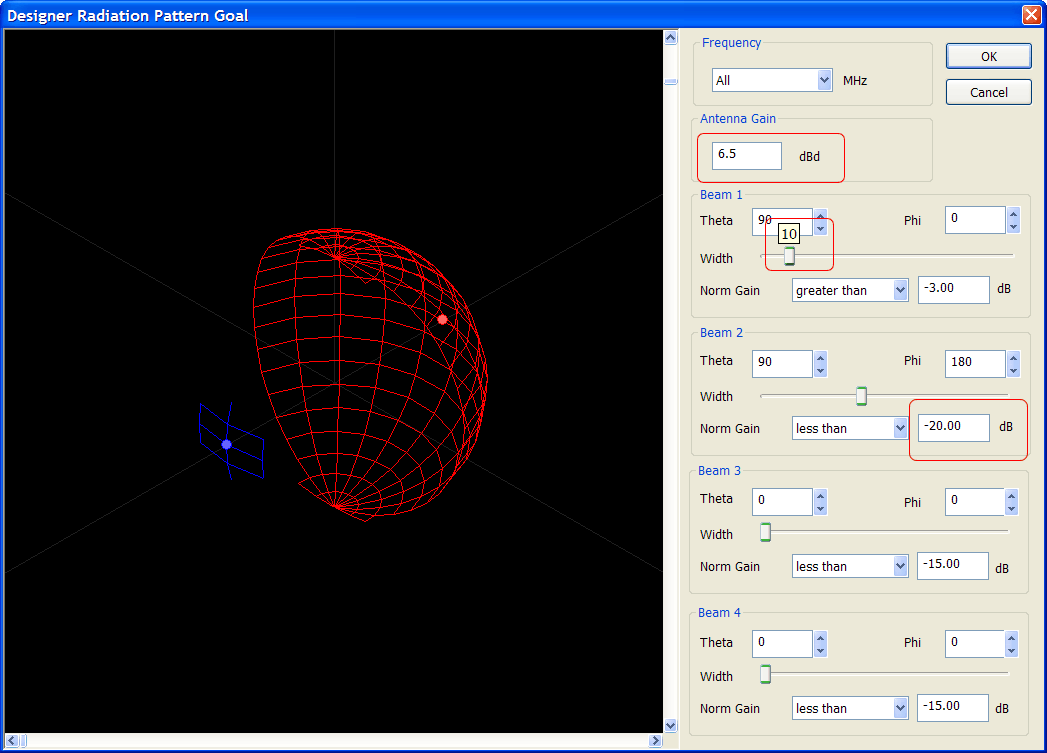

 Step 10. Designer Goal Setup. On the toolbar click: Designer Radiation Pattern GoalNEC Lab defines the radiation pattern as a set of 3D beams. The radiation pattern of this antenna will be defined using only two beams: beam 1 and beam 2On the radiation pattern goal dialog change the Antenna Gain to 6.5 dBd as shownOn the radiation pattern goal dialog change the Beam 1 Width to 10 as shownOn the same dialog, change the Normalized Gain of Beam 2: Norm Gain < -20 dBPress OK to close the dialog

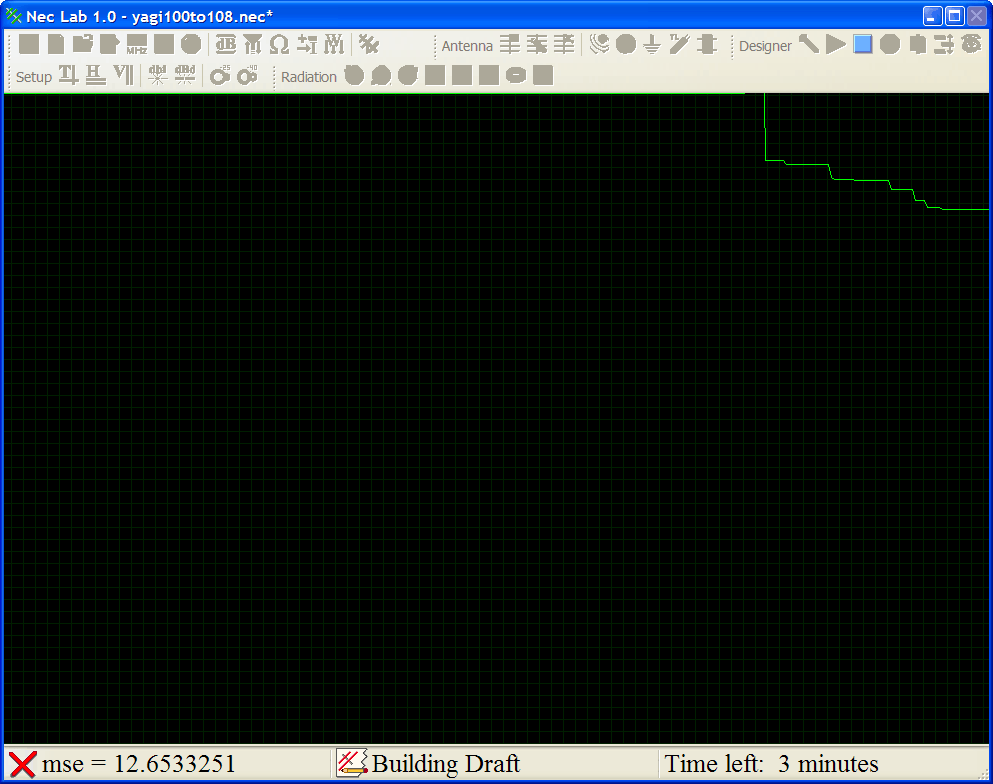

 Step 11. Running the Designer. Once the antenna requirements have been defined, it is a good idea to save the project. On the toolbar click: NEC SaveSelect an appropriate folder in your computer and set the filename. Press the Save button to close the dialog.NEC Lab uses artificial intelligence and is capable of designing a great range of antennas. On the toolbar click: Run the DesignerOnce the designer is running, NEC Lab will periodically report the mean-squared error measured between the actual antenna performance and the target requirements.First, the designer will create a draft. Second, the designer will improve the design. Depending on your computer speed and the antenna complexity, the designer may run for one to several hours. NEC Lab will estimate the remaining running time. However, it may stop early, if not further improving is expected.In some cases and depending on the antenna requirements, the designer will not be able to reach appropriately all the goals. In this case, the mean squared-error of the antenna will not decrease. Consider for example a two element antenna with a requirement of a minimum gain of 8 dBd; with only two elements the designer will not be able to attain the required gain no matter what the lengths or positions of the wires are.

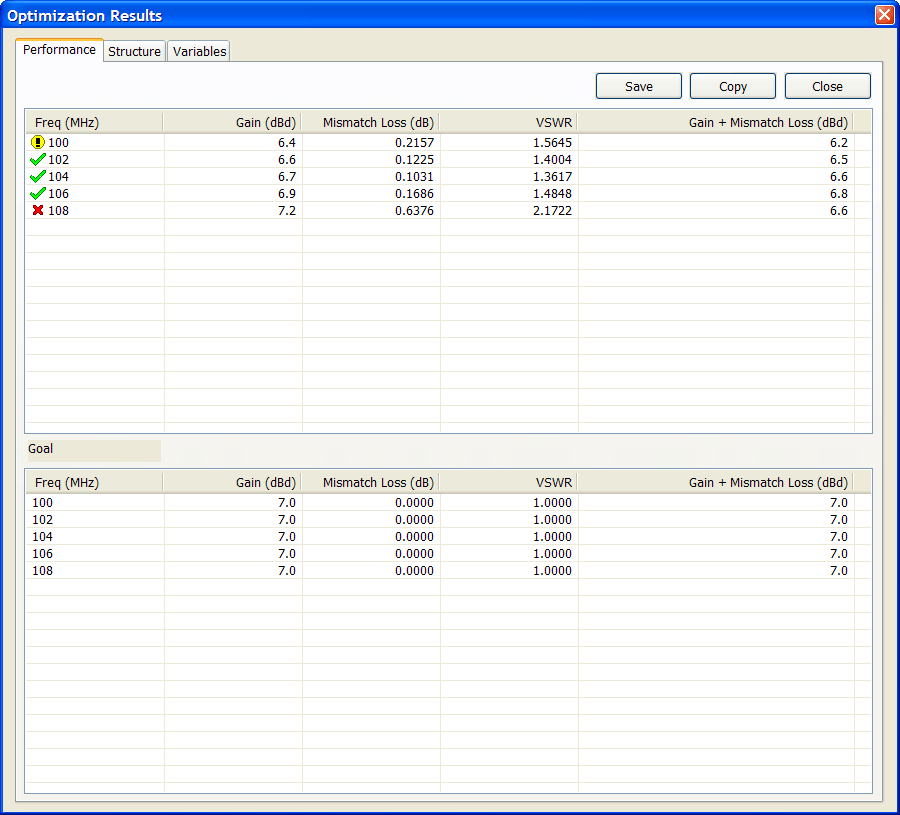

 Step 12. Analyzing the Results. Once the designer stops, the Optimization Results dialog will open. Review the performance antenna. When done press the Close button. You may open this dialog at any time by clicking: Designer ResultsIf the optimizations results are not optimum, you may: run the designer againmodify the designer goals, ormodify the antenna structure.Note that it is normal to get different results every time the designer runs. You should try running the designer several times and select the antenna with the best results.The icon of the left indicates the quality of the VSWR. As expected, the VSWR is not perfect. However, it is acceptable for a receiving antenna. Specifically, the VSWR is a little high for a frequency of 108 MHz.The last column indicates the total gain including any mismatch loss.

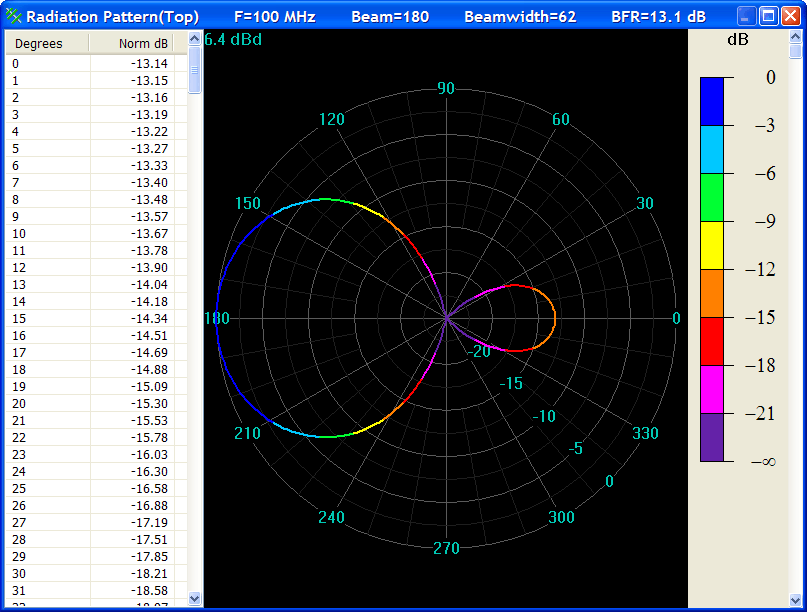

 Step 13. Check the radiation pattern. On the toolbar click: Top - Polar Radiation PatternUsing the right button of the mouse you can export the plot or data to other applications. You may use the rightmost scrollbar to see the radiation of pattern of this antenna at other frequencies. Press OK to close the dialog

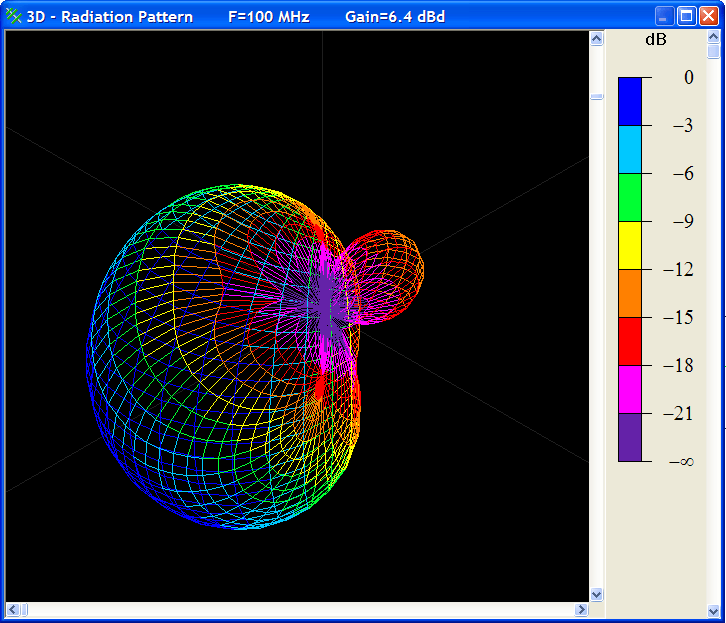

 Step 14. Check the 3D radiation pattern. On the toolbar click:3D - Radiation PatternUsing the right button of the mouse you can export the plot or data to other applications. You may use the rightmost scrollbar to see the radiation of pattern of this antenna at other frequencies. You may use the other scrollbars to turn and zoom the radiation pattern. Press OK to close the dialog

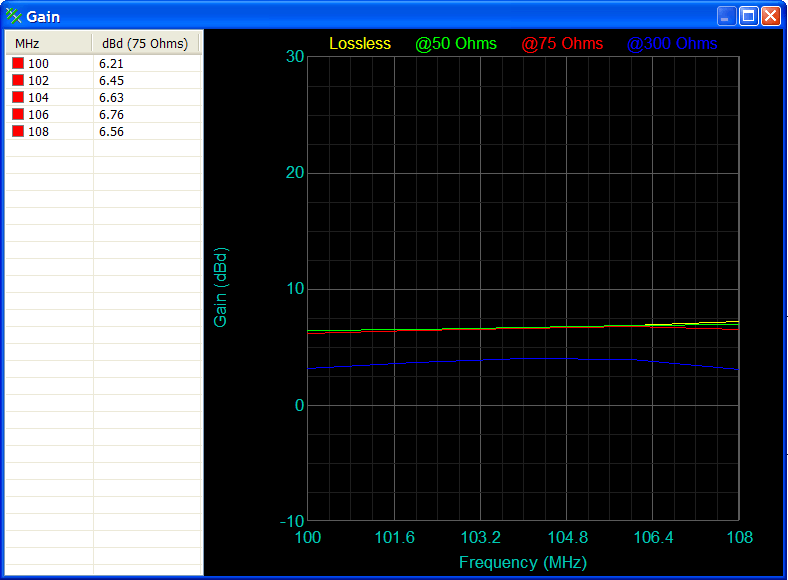

 Step 15. Check the antenna gain. On the toolbar click: Antenna GainUsing the right button of the mouse you can export the plot or data to other applications. Press OK to close the dialog

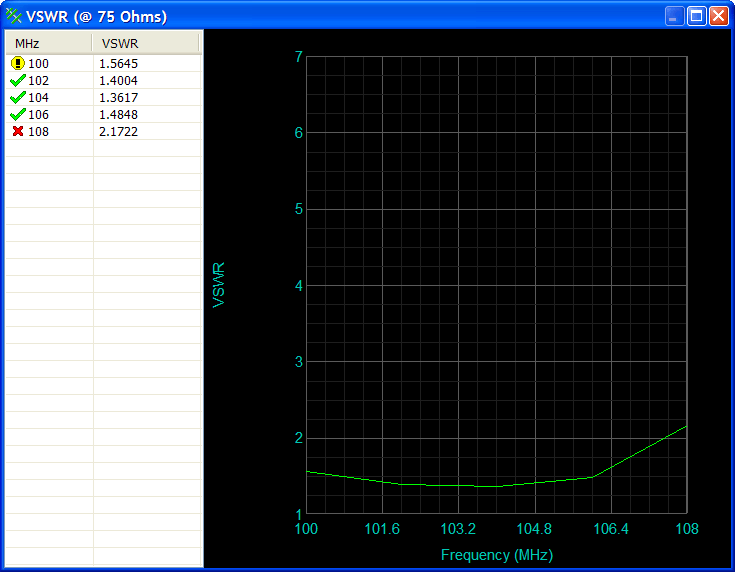

 Step 16. Check the antenna VSWR. On the toolbar click: Antenna VSWRUsing the right button of the mouse you can export the plot or data to other applications. Press OK to close the dialog

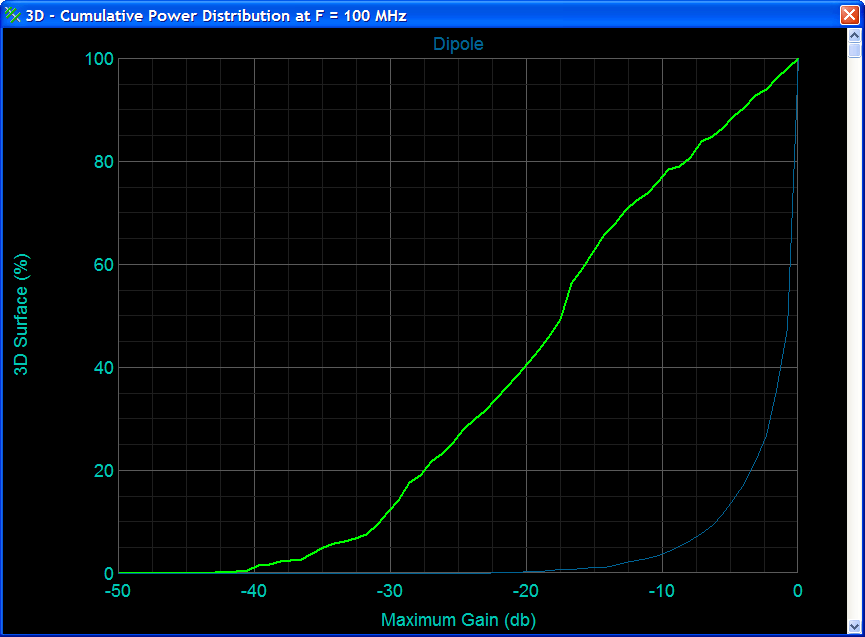

 Step 17. Check the Antenna Power Distribution. On the toolbar click: 3D - Polar DistributionUsing the right button of the mouse you can export the plot or data to other applications. This plot allows you to compare the performance of this antenna with the performance of a simple dipole or other antennas. For example, this antenna has a gain of -20 dB or less in 40 % of the surface of an imaginary sphere around the antenna; meaning that the other 60 % of the antenna has a gain of -20 dB or more. On the other hand, a simple dipole has a gain of -20 dB or more in all its surface.In the same manner, this antenna has a gain of -10 dB or more in 22 % of its surface, while the simple dipole has -10 dB or more in 96 % of its surface.You may use the scrollbar to see the power distribution of this antenna at other frequencies. Press OK to close the dialog

 Step 18. Save the design. Once the antenna has been designed and verified, it is a good idea to save the final antenna design. On the toolbar click: NEC Save
